Overview

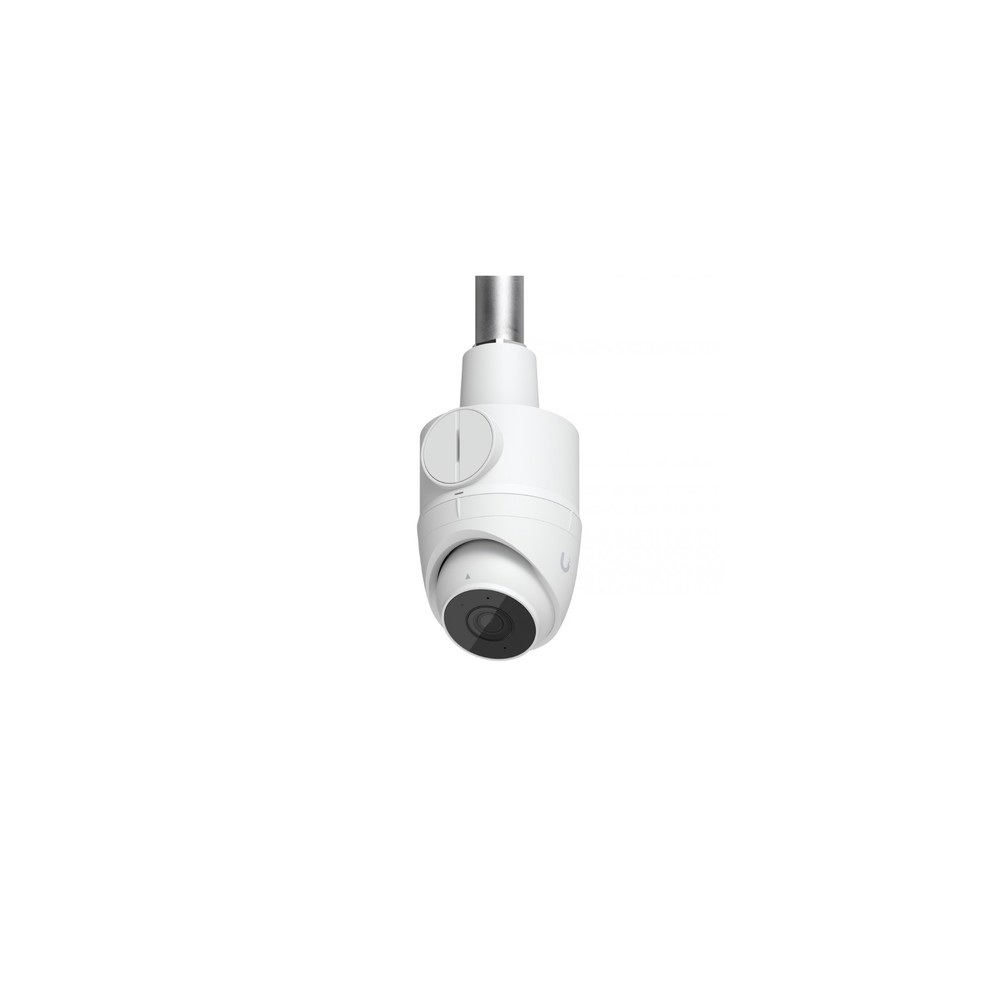

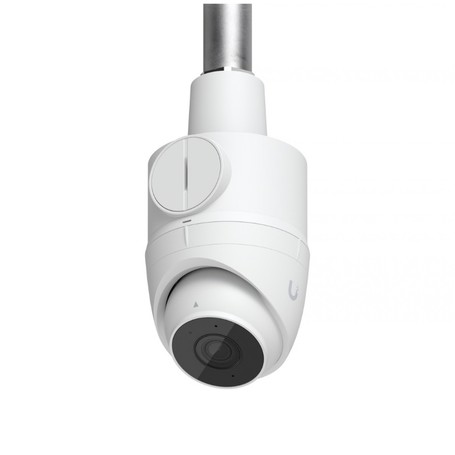

The Ubiquiti UACC-CAMERA-CJB-W is a white Camera Compact Junction Box designed for compatible UniFi Dome and Turret cameras. It provides a compact mounting and cable-management enclosure for camera installations while supporting flat-surface, pole and pendant mounting configurations.
The junction box includes side and rear 3/4-inch conduit entrances, allowing compatible cable routing into the enclosure. Its tamper-resistant design is intended to improve mounting durability and provide a cleaner installation around supported UniFi cameras.
Compatibility
Ubiquiti lists the UACC-CAMERA-CJB-W as compatible with the UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G6-Bullet and UVC-G6-Mini-Dome camera models. Compatibility should be confirmed against the specific camera model and its installation requirements before deployment.
Mounting and Cable Routing
The Camera Compact Junction Box supports flat-surface, pole and pendant mounting. It provides side and rear 3/4-inch conduit entrances for routing installation cabling into the junction box.
For pole mounting, the specified compatible pole diameter is 1.5 to 2 inches (38 to 50 mm). The enclosure and mounting components use aluminum alloy, while the enclosure also incorporates polycarbonate.
Key Features
- Tamper-resistant compact junction box for compatible UniFi cameras
- Supports flat-surface, pole and pendant mounting
- Side and rear 3/4-inch conduit entrances
- Aluminum alloy and polycarbonate enclosure construction
- White finish for compatible UniFi camera installations
Applications
The UACC-CAMERA-CJB-W is intended for camera installations where a compact junction enclosure is required around supported UniFi cameras. It can be used for flat-surface, pole or pendant-mounted deployments and provides dedicated conduit entry points for installation cabling.
DC Supplies Product Note
Check the exact camera model before ordering. The UACC-CAMERA-CJB-W is a camera-specific mounting accessory rather than a universal junction box. Ubiquiti's current technical documentation lists compatibility with four specific camera models, so the camera's mounting requirements should be checked before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CAMERA-CJB-W |
| Product Type | Camera Compact Junction Box |
| Product Family | UniFi Protect |
| Color | White |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Aluminum alloy |
| Mounting Options | Flat surface, pole and pendant |
| Pole Mount Diameter | 1.5–2 in (38–50 mm) |
| Conduit Entrances | Side and rear 3/4 in |
| Longer Holder Dimensions | 87 x 147 x 49 mm (3.4 x 5.8 x 1.9 in) |
| Shorter Cap Dimensions | 87 x 110 x 49 mm (3.4 x 4.3 x 1.9 in) |
| Box Weight | 270 g (9.5 oz) |
| Longer Holder Weight | 125 g (4.4 oz) |
| Shorter Cap Weight | 80 g (2.8 oz) |
| Compatible Camera | UVC-G5-Dome-Ultra |
| Compatible Camera | UVC-G5-Turret-Ultra |
| Compatible Camera | UVC-G6-Bullet |
| Compatible Camera | UVC-G6-Mini-Dome |
FAQs
What is the UACC-CAMERA-CJB-W?
It is a compact, tamper-resistant junction box designed for specified UniFi camera models. It provides mounting support and conduit entry points for camera installation.
Which UniFi cameras are compatible?
Ubiquiti's current technical specifications list the UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G6-Bullet and UVC-G6-Mini-Dome as compatible cameras.
Can the junction box be mounted on a pole?
Yes. It supports pole mounting for poles with a specified diameter of 1.5 to 2 inches (38 to 50 mm).
Does it support conduit installation?
Yes. The junction box includes side and rear 3/4-inch conduit entrances.
What materials are used?
The enclosure uses aluminum alloy and polycarbonate, while the mounting material is aluminum alloy.
Is the UACC-CAMERA-CJB-W a camera?
No. It is a mounting and junction-box accessory for compatible UniFi cameras and does not provide camera or network functionality itself.
