Detailed Specifications

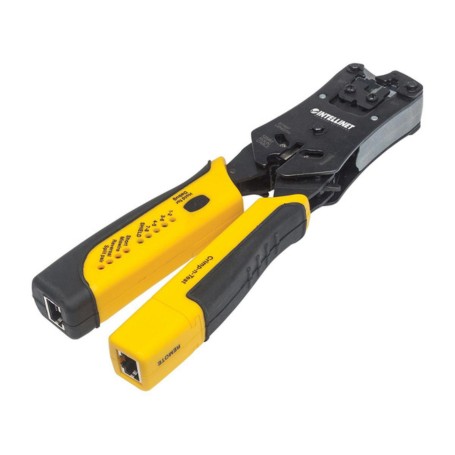

Intellinet 780124 Universal Modular Plug Crimping Tool and Cable Tester
Overview :
The Intellinet 780124 is a professional 2-in-1 network installation tool that combines modular plug crimping and cable testing in a single handheld device. It is designed for network installers, telecommunications technicians, and IT professionals who build, terminate, and verify Ethernet and telephone cabling.
The tool cuts, strips, crimps, and tests cables using one integrated device. It supports RJ45, RJ11, RJ12, and RJ22 modular plugs and verifies Cat3, Cat5, Cat5e, Cat6, and Cat6a cabling. A built-in cable tester with nine LED indicators detects wiring continuity, shorts, miswires, reversals, split pairs, and shielding status where applicable. The detachable remote module enables testing of installed cable runs.
Designed for structured cabling installations, network maintenance, and field service applications, the tool is suitable for terminating and testing copper Ethernet and telephone cables before deployment. It is not intended for fiber optic cable termination or non-modular connector systems.
Key Features :
- Crimps RJ45, RJ11, RJ12 and RJ22 connectors
- Integrated cable tester with nine LED indicators
- Cuts, strips, crimps and tests using one tool
- Detachable remote tests installed cable runs
- Ratchet mechanism provides consistent crimps
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 780124 |
| Product Type | Universal Modular Plug Crimping Tool and Cable Tester |
| Tool Functions | Cut, Strip, Crimp and Test |
| Supported Connectors | RJ45, RJ11, RJ12, RJ22 |
| Supported Cable Types | Cat3, Cat5, Cat5e, Cat6, Cat6a |
| Test Indicators | 9 LED status indicators |
| Fault Detection | Short, Miswire, Reversal, Split Pair |
| Pass Detection | Four pairs and shielding (where applicable) |
| Remote Tester | Detachable snap-in remote module |
| Crimp Mechanism | Ratchet-assisted |
| Power Requirement | Four LR44 button-cell batteries (not included) |
| Warranty | 3 Years |
| Package Contents | Crimping tool and cable tester |
