APC AR7580A - 42U Vertical Rack Cable Manager

Overview

The APC AR7580A is a vertical cable management accessory designed for structured cabling organization within 42U NetShelter SX rack enclosures that are 750 mm wide. Infrastructure engineers deploy this device to manage large volumes of copper patch cords and power cables in high-density server and network racks. By providing dedicated vertical routing channels along the rack frame, it prevents cable congestion around switches, patch panels, and power distribution equipment.

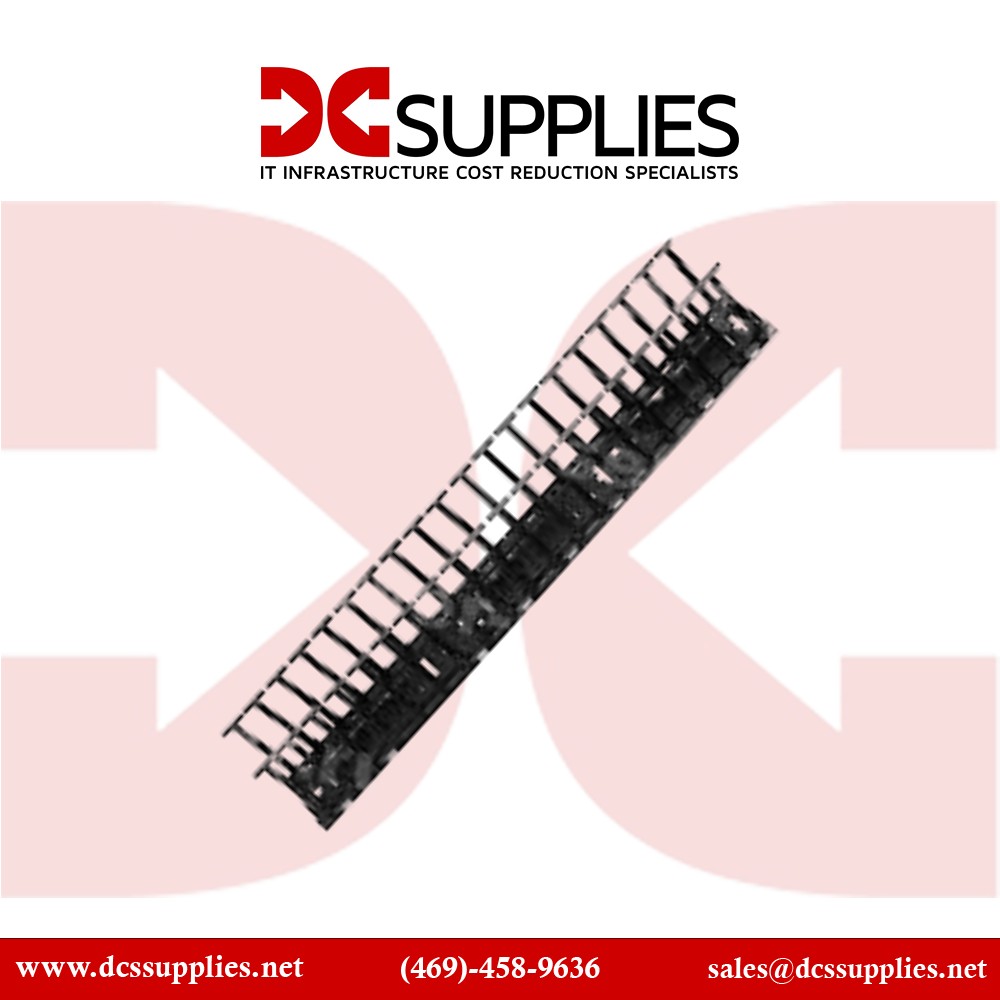

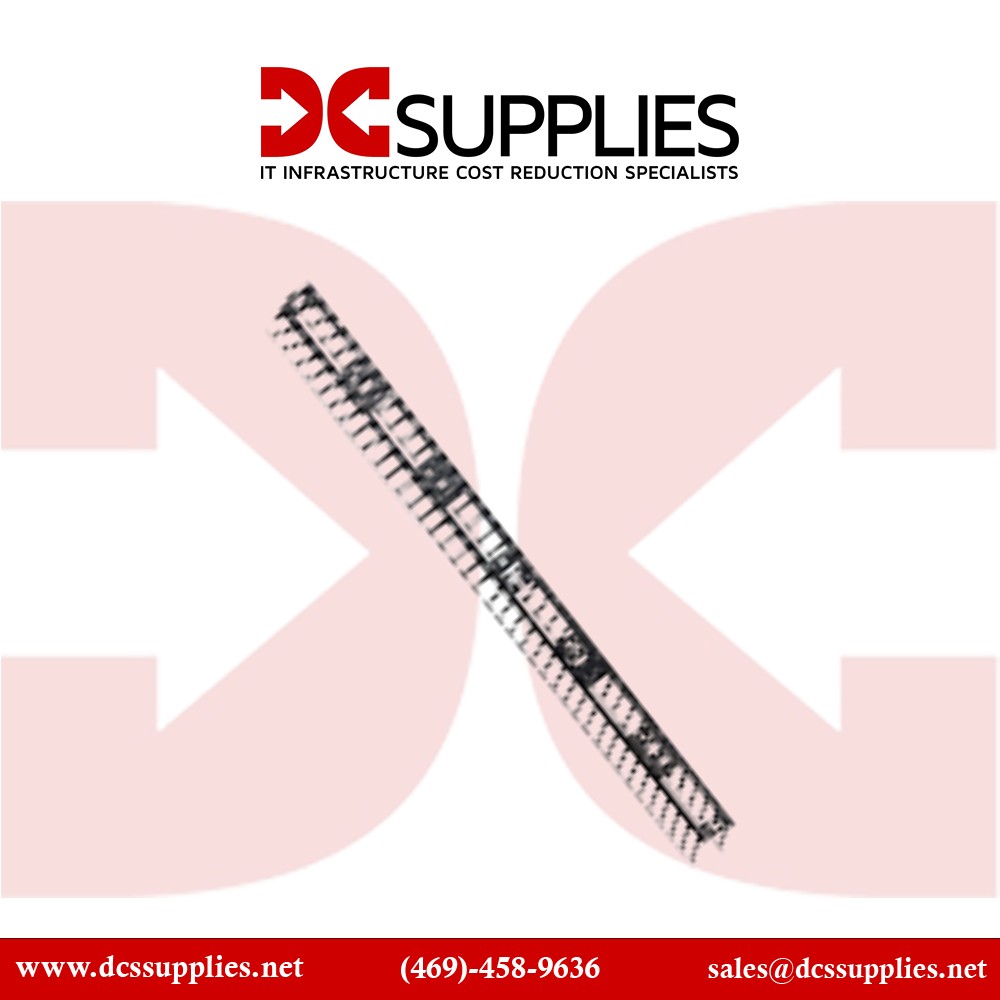

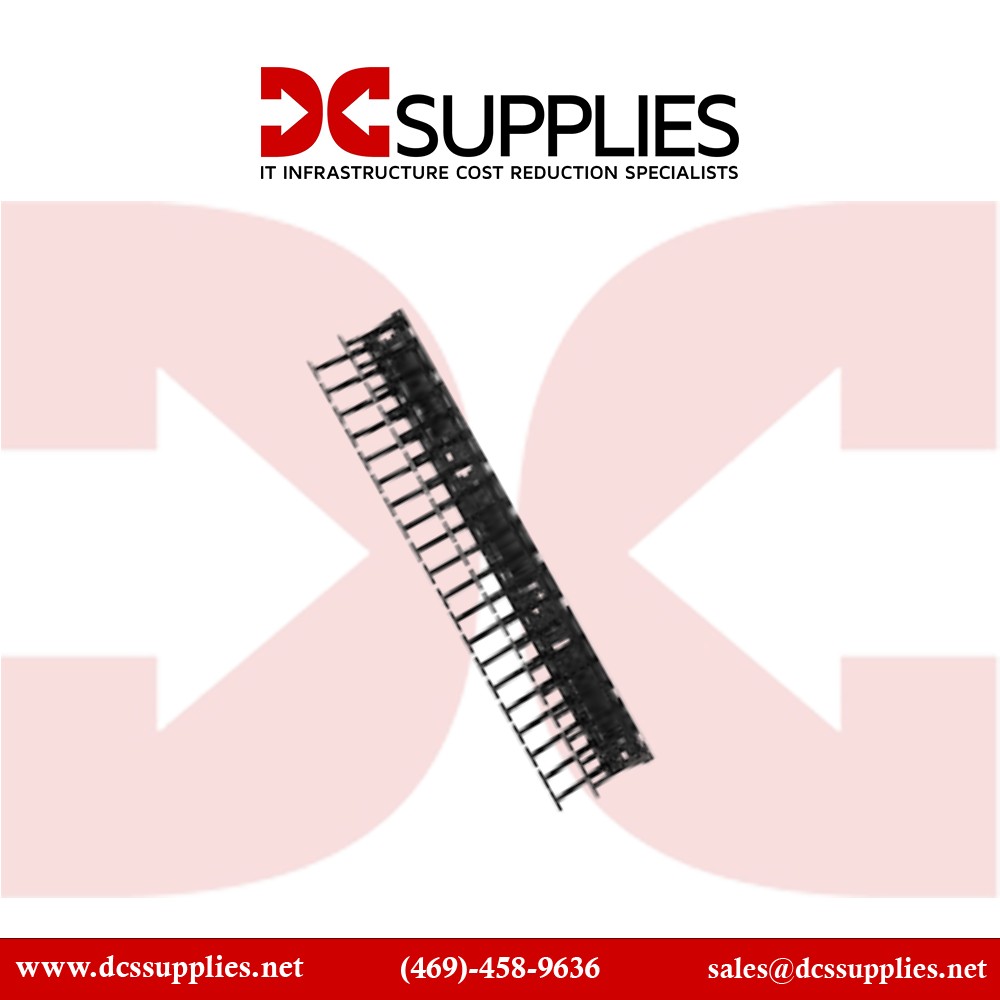

The cable manager spans the full 42U rack height and installs along the enclosure frame to provide continuous cable routing from the bottom to the top of the rack. Integrated slim cable fingers positioned at 1U intervals allow patch cords to enter and exit the vertical channel while maintaining organized separation between cable bundles. The design supports high cable density environments, with capacity for approximately 190-250 Cat6/Cat6A cables per section, making it suitable for racks with dense switch port utilization.

In data center and enterprise server room deployments, vertical cable management is essential for maintaining clear airflow pathways and reducing cable strain on equipment ports. When installed in wide rack enclosures, the AR7580A creates dedicated cable corridors along the rack edge. This configuration allows patch cords from horizontal cable managers or patch panels to be routed vertically toward distribution switches, aggregation layers, or power distribution units without obstructing front-to-rear cooling airflow.

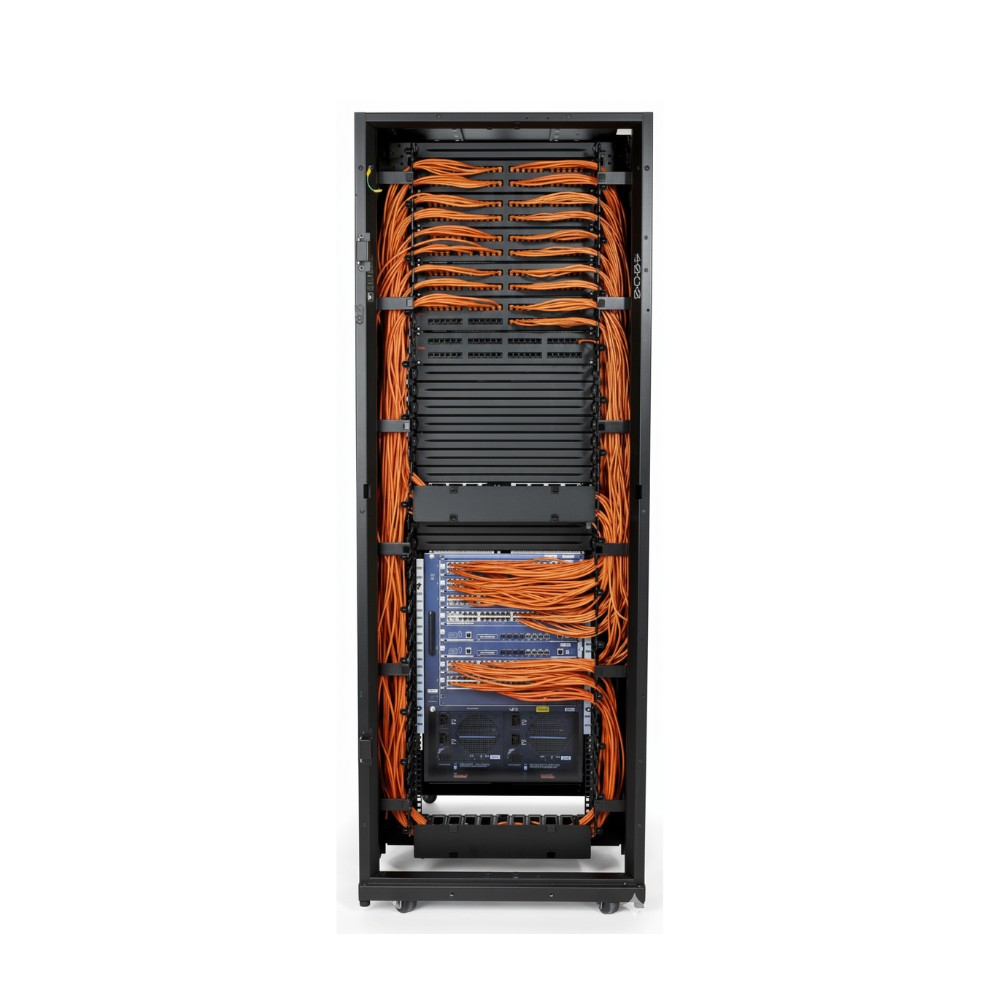

A common deployment scenario involves 42U wide network racks populated with high-port-count switches and multiple patch panels. The vertical cable manager allows technicians to route hundreds of patch cords along the rack side while maintaining clear device access across the rack face. Cable retainers with snap hinges secure bundles inside the channel while allowing quick access during adds, moves, or cable replacement tasks.

This cable management accessory should not be used in racks that do not provide additional side clearance for vertical routing, such as narrow enclosures where cable channels would interfere with equipment mounting depth or airflow paths. Standard-width racks without integrated side cable management typically rely on horizontal cable managers instead of full-height vertical cable channels.

Key Features

• Full-height 42U vertical cable routing channel
• Supports up to 250 Cat6/Cat6A cables per section
• Cable fingers positioned at every rack unit
• Tool-less mounting to NetShelter rack frame
• Snap-hinge cable retainers secure dense bundles

Specifications
