Detailed Specifications

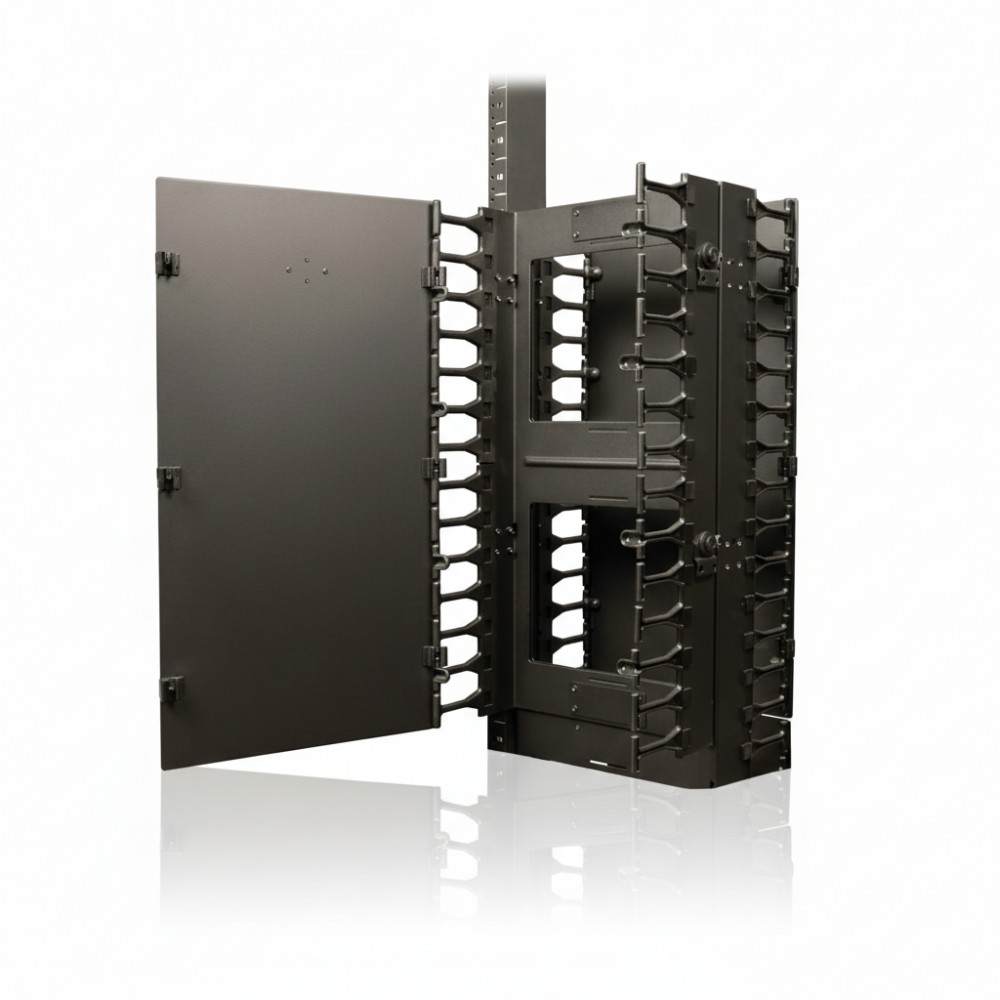

Eaton SRCABLEVRT12 - Vertical Cable Manager 12″
Overview
The Eaton SRCABLEVRT12 is a vertical cable management accessory designed for organizing large bundles of Cu/fiber cabling in open frame and rack cabinet environments. It is deployed by network and rack-infrastructure engineers to improve cable routing discipline, reduce congestion, and minimize stress on connectors and terminations within structured cabling zones.
This cable manager features a 12 inch (30.48 cm) width high-capacity double finger duct with cover, enabling a broader routing path for thicker bundles of cables compared with standard narrow managers. The duct is split into modular sections for flexible positioning relative to rack frames.
The unit supports installation along the vertical plane of 2-post or 4-post open frame racks and cabinets compliant with EIA-310 standards. Its tool-less button mount system anchors the manager to vertical rack members without additional hardware, simplifying deployment and service tasks.
The SRCABLEVRT12 integrates into structured rack ecosystems alongside PDUs, patch panels, and switches. The open finger duct and removable cover assist in segregating service loops and reducing interference between power and data runs, aiding maintenance and airflow management.
In a practical deployment, this manager is used to route backbone fiber and high-density copper drops up the side of a 42U rack, keeping cables accessible and preventing entanglement during moves, adds, and changes. The dual-channel design allows simultaneous separation of multiple media types without cross-overs.
This accessory is not a structural support for heavy hardware or PDUs and should not be used to support equipment weight. It is also not a fully enclosed cable tray or duct; lateral or horizontal cabling needs separate management solutions.
Key Features
- 12″ (30.48 cm) wide high capacity vertical cable organizer
- Double finger duct with removable cover for separation
- Tool-less button mounting to EIA-310 rack rails
- Segmented sections allow adaptable routing (3× ~2 ft)
- Steel construction with black finish (RoHS compliant)
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRCABLEVRT12 |
| Product Type | Vertical Cable Manager |
| Rack Standard | EIA-310 (19″) |
| Cable Manager Width | 12 in (30.48 cm) |
| Height | ~24.45 in (621 mm) |
| Depth | ~6.02 in (152.9 mm) |
| Sections Provided | 3 vertical segments (~2 ft each) |
| Material | Cold-rolled steel |
| Finish | Black powder coat |
| Mounting | Tool-less button mount to rack posts |
| Weight | ~9.2 lb (~4.17 kg) |
| Compliance | RoHS |
| Installation | Vertical side of open-frame/rackcabinet |
