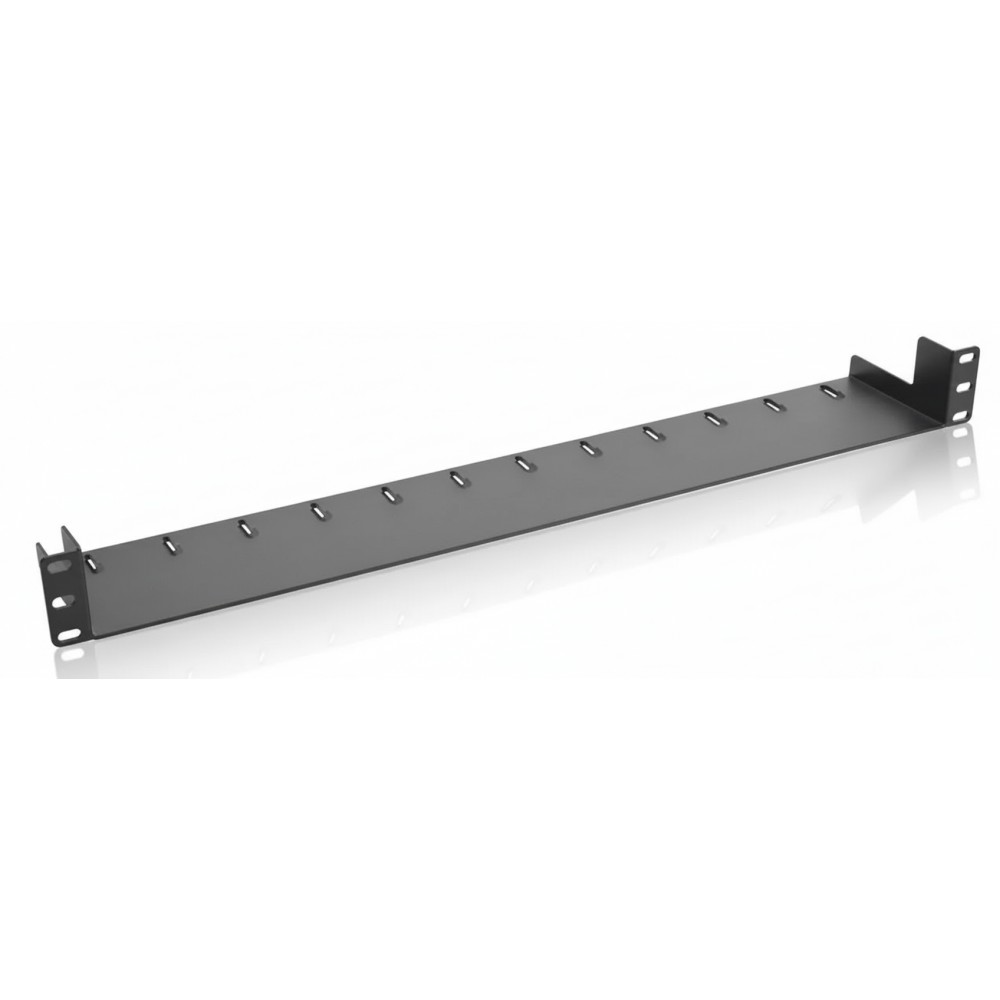

Eaton SRCABLETRAY1U - 1U Horizontal Cable Management Tray
Overview :
The Eaton SRCABLETRAY1U is a 1U horizontal cable management tray for structured routing of copper and fiber cabling in 19-inch EIA-310 compliant rack systems. It is deployed by network engineers, rack installers, and IT infrastructure teams to reduce cable clutter and strain on terminations by providing a dedicated support path immediately above or below mounted equipment. This accessory is commonly used in IDF closets, server racks, and telecommunications enclosures.
Manufactured from steel with a black powder-coat finish, the SRCABLETRAY1U features multiple anchor points across its width to organise and hold cable bundles securely. Mounting hardware and nylon zip ties are included to facilitate rapid installation to either the front or rear vertical rails at any height within the rack without consuming additional rack units.
This tray fits standard 19″ rack enclosures and integrates cleanly with other horizontal and vertical cable management devices, helping maintain separation between active equipment, structured cabling, and power runs. Its design supports routing from either side of the tray into equipment ports or cabinet interiors.
The SRCABLETRAY1U mounts using included M6 screws, cage nuts, and washers to the rack's threaded or square-hole rails, and is compatible with typical open frame and enclosed installations following EIA-310 standards.
In practical deployed environments, this tray is used immediately above patch panels or switches to safely guide patch and backbone cables into the rack interior, reduce tension on connectors, and simplify serviceability. It is not designed as a load-bearing structure for heavy cable bundles or rigid conduit; for overhead or heavy-weight runs consider ladder or roof-mounted trays.
Key Features
• 1U horizontal cable management tray for 19″ racks
• Steel construction with black powder-coat finish
• Multiple anchor points for structured cable routing
• Mounts front or back on vertical rails without occupying U
• Includes hardware and nylon zip ties for install
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SRCABLETRAY1U |
| Product Type | Horizontal Cable Management Tray |
| Rack Height | 1U horizontal mount |
| Panel Width | 19 in (EIA-310 compliant) |
| Material | Steel with black powder-coat |
| Mounting | Front/rear vertical rails with included hardware |
| Anchor Points | Multiple cable tie anchor points |
| Included Fasteners | M6 screws, M6 cage nuts, washers, nylon zip ties |
| Weight | ~2 lb (≈0.9 kg) |
| Compliance | EIA-310, RoHS |
| Color | Black |
| Country of Origin | China |
| Use Case | Organise/relieve cable strain in rack |
