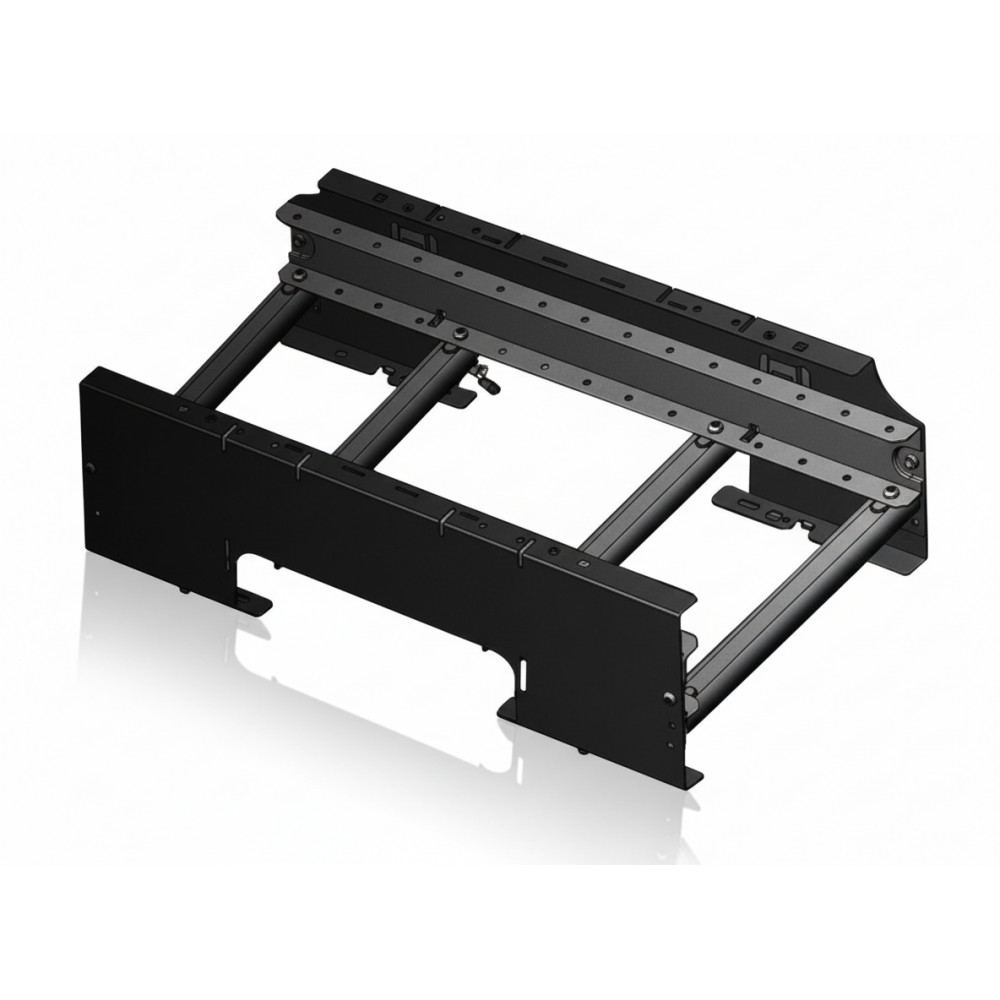

APC AR8560 NetShelter Cable Management Cable Trough Open Bottom Black View larger

APC AR8560 NetShelter Cable Management Cable Trough Open Bottom Black

AR8560

New

The APC AR8560 is an open-bottom cable trough (597 × 191.4 × 316.2 mm) for rack tops, engineered
×




Detailed Specifications

APC AR8560 Open-Bottom Cable Trough

Overview

The APC AR8560 is an open-bottom cable trough designed to route power and data cabling across rack tops, especially in InfraStruXure and NetShelter environments. It supports bulk cable bundles while allowing access from below, reducing interference with equipment or airflow. Measuring 597 × 191.4 × 316.2 mm, it fits standard rack widths without occupying U space. Mounting across the front of the rack, it integrates with rack frames and complements vertical cable management to complete full rack cabling paths. Used in data centers, wiring closets, and telecommunications environments, the AR8560 helps maintain organized cable runs and eases maintenance or future changes in cable layout.

Key Features

  • Open-bottom trough (no floor plate)

  • 597 mm width for full rack span

  • Accommodates heavy cable bundles

  • Front-mounted across rack top

  • Black finish to match rack equipment

  • Includes grounding strap for safety

Technical Specifications

SpecificationValue
Brand APC (by Schneider Electric)
Part Number AR8560
Product Type Cable Trough / Cable Management
Width 597 mm
Height 191.4 mm
Depth 316.2 mm
Net Weight 4.56 kg (≈ 10.05 lb)
Mounting Location Front, top of rack
Rack Units Consumed 0 U
Design Open bottom (no floor)
Included Accessory Grounding strap
Color Black
Material Metal (rack-grade)
Warranty 2 years (standard APC)
Compliance / Certification RoHS compliant
