Detailed Specifications
Overview

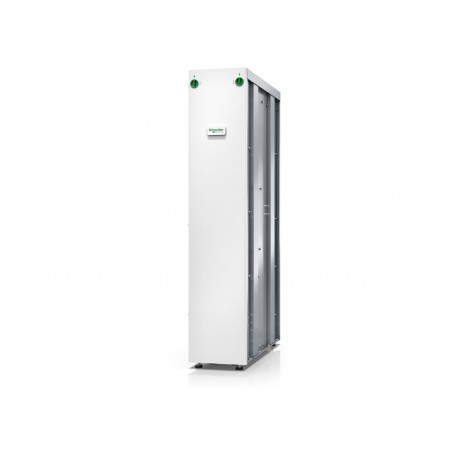

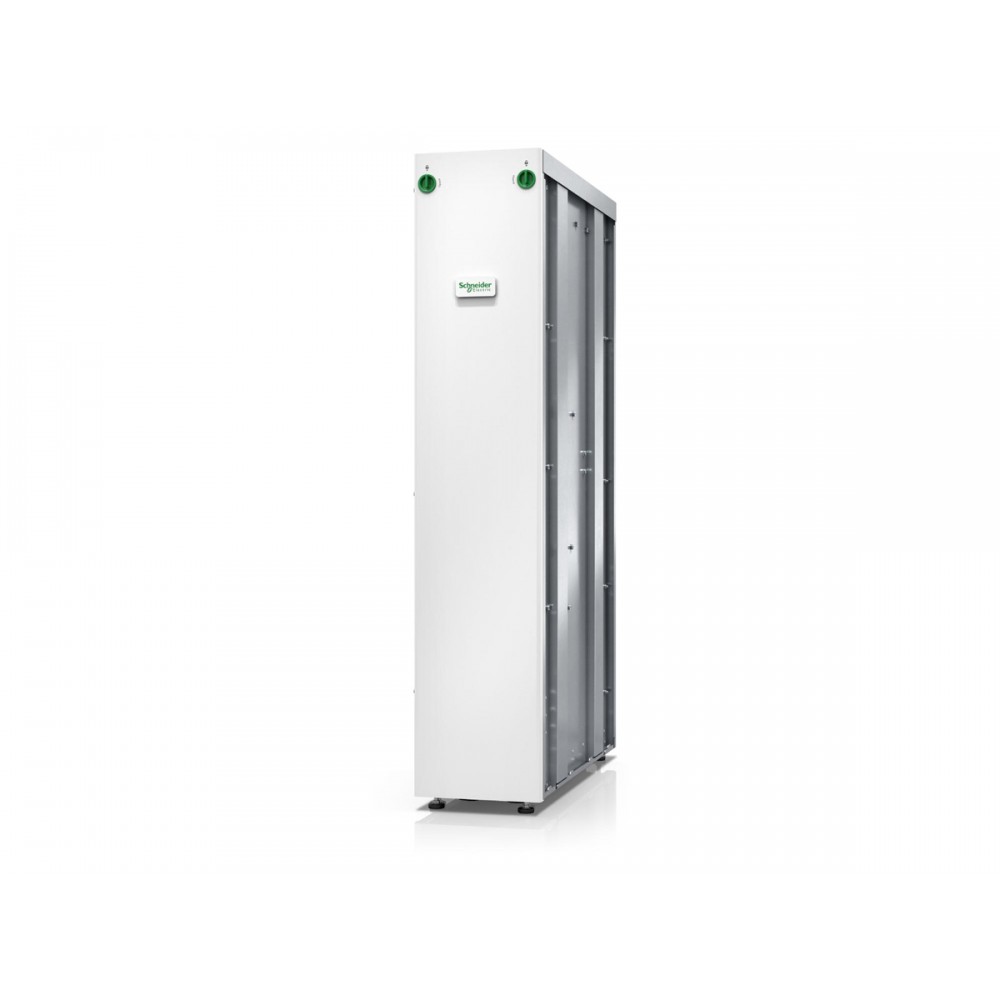

The APC GVSBPSU80G Galaxy VS Maintenance Bypass Cabinet is designed to isolate a compatible UPS during maintenance or service operations while supporting the required power bypass arrangement. This UL-listed cabinet is intended for single-unit Galaxy VS installations rated for 10–40kW at 208V or 20–80kW at 480V. Its white enclosure supports professional power infrastructure installations in data centers and critical facilities.
Key Features
- Maintenance bypass cabinet for compatible APC Galaxy VS UPS systems
- Allows UPS isolation during service operations
- Supports specified single-unit 208V and 480V Galaxy VS configurations
- Schneider Electric breakers
- UL-listed design
- White cabinet enclosure
- Front installation location
- Designed for fixed power infrastructure installations
Technical Specifications
| Brand | APC by Schneider Electric |
| Part Number / MPN | GVSBPSU80G |
| Product Type | Maintenance Bypass Cabinet |
| Product Series | Galaxy VS |
| Function | UPS bypass and isolation during service |
| Compatibility | Compatible Galaxy VS UPS systems |
| Supported Configuration | Single-unit, 10–40kW at 208V; 20–80kW at 480V |
| Voltage | 208V / 480V AC, according to system configuration |
| Color | White |
| Height | 58.46 inches (1485 mm) |
| Width | 12.52 inches (318 mm) |
| Depth | 33.46 inches (850 mm) |
| Net Weight | 242.5 lb (110 kg) |
| Mounting Location | Front |
| Rack Mounting | Not rack-mountable |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0–95%, non-condensing |
| Certification | UL |
Applications
- Data center power infrastructure
- Galaxy VS UPS maintenance installations
- Critical facilities requiring UPS service isolation
- Enterprise power protection systems
- Commercial and industrial electrical infrastructure
Compatibility and Installation
This cabinet is designed for compatible APC Galaxy VS UPS configurations. Confirm the UPS model, system voltage, power rating, and installation arrangement before ordering. Installation and commissioning must be performed by qualified electrical personnel in accordance with Schneider Electric documentation and applicable electrical codes.
Frequently Asked Questions
What is the APC GVSBPSU80G used for?
It provides a maintenance bypass arrangement that allows a compatible UPS to be isolated for service.
Which UPS series is it designed for?
It is designed for compatible APC Galaxy VS UPS systems.
Which power configurations does it support?
The manufacturer specifies single-unit systems rated at 10–40kW at 208V and 20–80kW at 480V.
Is this cabinet rack-mountable?
No. The manufacturer identifies it as not rack-mountable.
What are its dimensions?
It measures approximately 58.46 inches high, 12.52 inches wide, and 33.46 inches deep.
Does it require professional installation?
Yes. Because it forms part of a critical power system, qualified electrical personnel should install and commission it.
