Overview

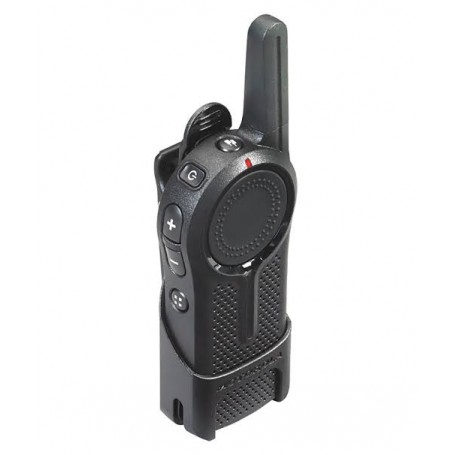

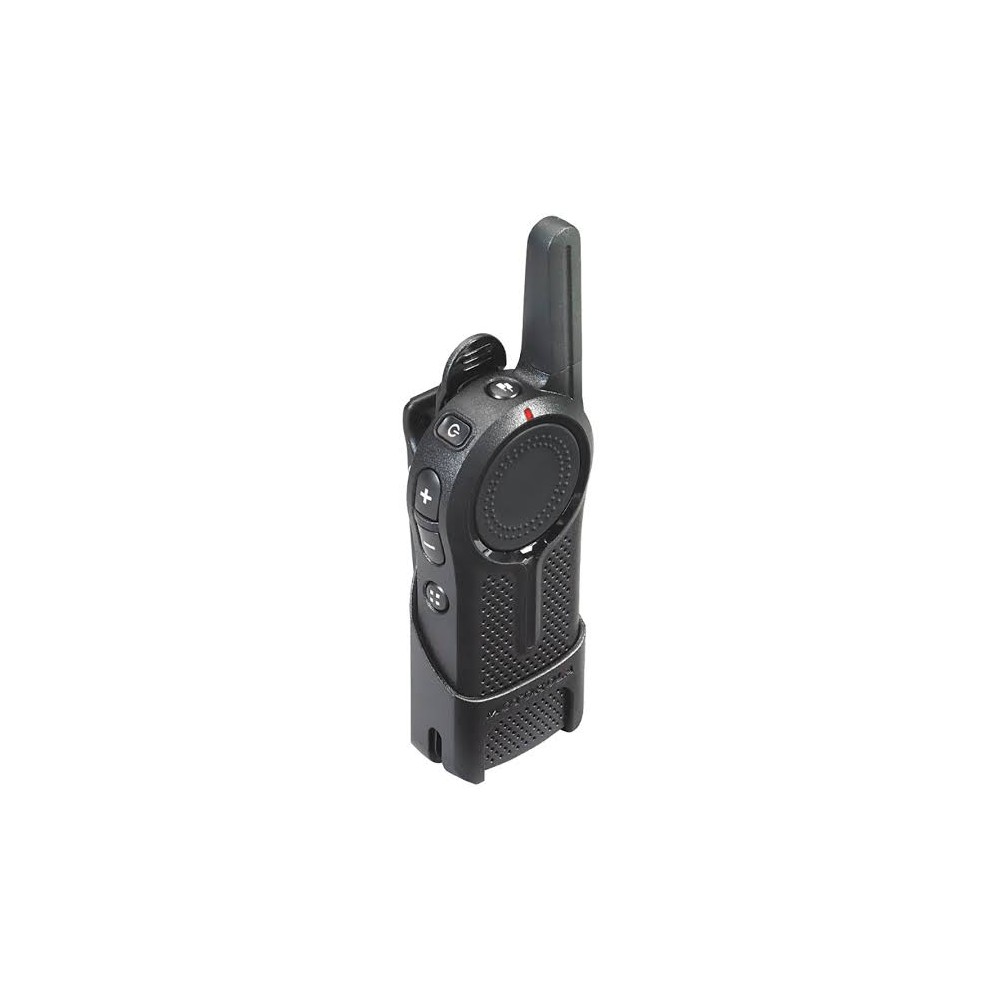

The Motorola DLR1060 is a digital business two-way radio designed for license-free workplace communications in the 900MHz ISM band. It provides six programmable channels, digital voice communication, multiple calling options, and up to 14 hours of battery life with the standard 1800mAh battery.
Digital Radio Communication
The DLR1060 operates using 900MHz ISM frequency-hopping spread spectrum (FHSS) technology with 8-level FSK modulation and 1W RF output power. Its digital architecture supports clear voice communication and a coverage area of up to 300,000 square feet or 20 floors, depending on terrain and environmental conditions.
Channels and Calling Features
The radio provides six programmable channels and configurable communication features including Private Reply, Direct Call, Page All Available, Call All Available, and a designated Home Channel. Voice prompts and an advanced configuration menu provide user feedback during operation.
Battery and Charging
The DLR1060 uses a rechargeable 3.7V Li-ion battery with 1800mAh capacity. Battery life is rated at approximately 14 hours using a 5/5/90 duty cycle, while charging time is less than 3.5 hours with the standard battery.
Durability and Environmental Protection
The radio is designed for business environments and meets applicable MIL-STD-810C, 810D, 810E, 810F, and 810G test methods. The unit provides dust and water resistance and is specified for operation from -30°C to +60°C.
Programming and Compatibility
The DLR1060 supports computer-based configuration using Motorola programming software and can be wirelessly cloned with compatible accessories. It can also communicate with compatible Motorola DTR Series and CURVE radios using supported configurations.
Key Features
- Six programmable digital communication channels
- 900MHz ISM frequency-hopping spread spectrum operation
- 1W RF output power
- Up to 14 hours of battery life with the standard 1800mAh battery
- Private Reply, Direct Call, Page All, and Call All communication options
Applications
- Retail and hospitality communications
- Healthcare facility communications
- Education and school operations
- Warehouse and workplace coordination
- Business teams requiring license-free two-way communication
DC Supplies Product Note
The DLR1060 provides six channels compared with the two-channel DLR1020, making it suitable where separate communication groups or additional channel assignments are required within a business environment.
Specifications
| Specification | Details |
|---|
| Brand | Motorola Solutions |
| Part Number / MPN | DLR1060 |
| Product Type | Digital Business Two-Way Radio |
| Frequency Band | 900 MHz ISM |
| Frequency Technology | FHSS |
| Number of Channels | 6 |
| RF Output Power | 1 W |
| Channel Spacing | 50 kHz |
| Modulation | 8-level FSK |
| Digital Vocoder | VSELP |
| Coverage | Up to 300,000 ft² / 20 floors, dependent on conditions |
| Audio Output Power | 0.75 W |
| Battery Type | Rechargeable Li-ion |
| Battery Voltage | 3.7 V |
| Battery Capacity | 1800 mAh |
| Battery Life | Up to 14 hours at 5/5/90 duty cycle |
| Charging Time | Less than 3.5 hours |
| Display | None |
| Antenna | Non-removable |
| Environmental Protection | IP5X / IPX2 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Durability Standards | MIL-STD-810C, 810D, 810E, 810F, 810G |
Frequently Asked Questions
How many channels does the Motorola DLR1060 have?
The DLR1060 provides six programmable channels.
What frequency does the DLR1060 use?
The radio operates in the license-free 900MHz ISM band using frequency-hopping spread spectrum technology.
How long does the DLR1060 battery last?
The standard 1800mAh battery provides approximately 14 hours of battery life under a 5/5/90 duty cycle.
What is the RF output power?
The DLR1060 has a maximum RF output power of 1W.
Does the DLR1060 support private communication features?
Yes. The radio supports features including Private Reply, Direct Call, Page All Available, and Call All Available.
