Overview

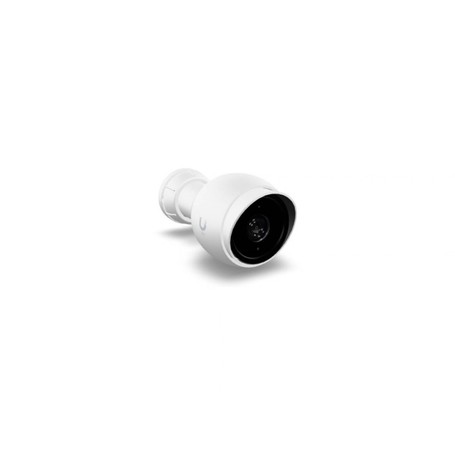

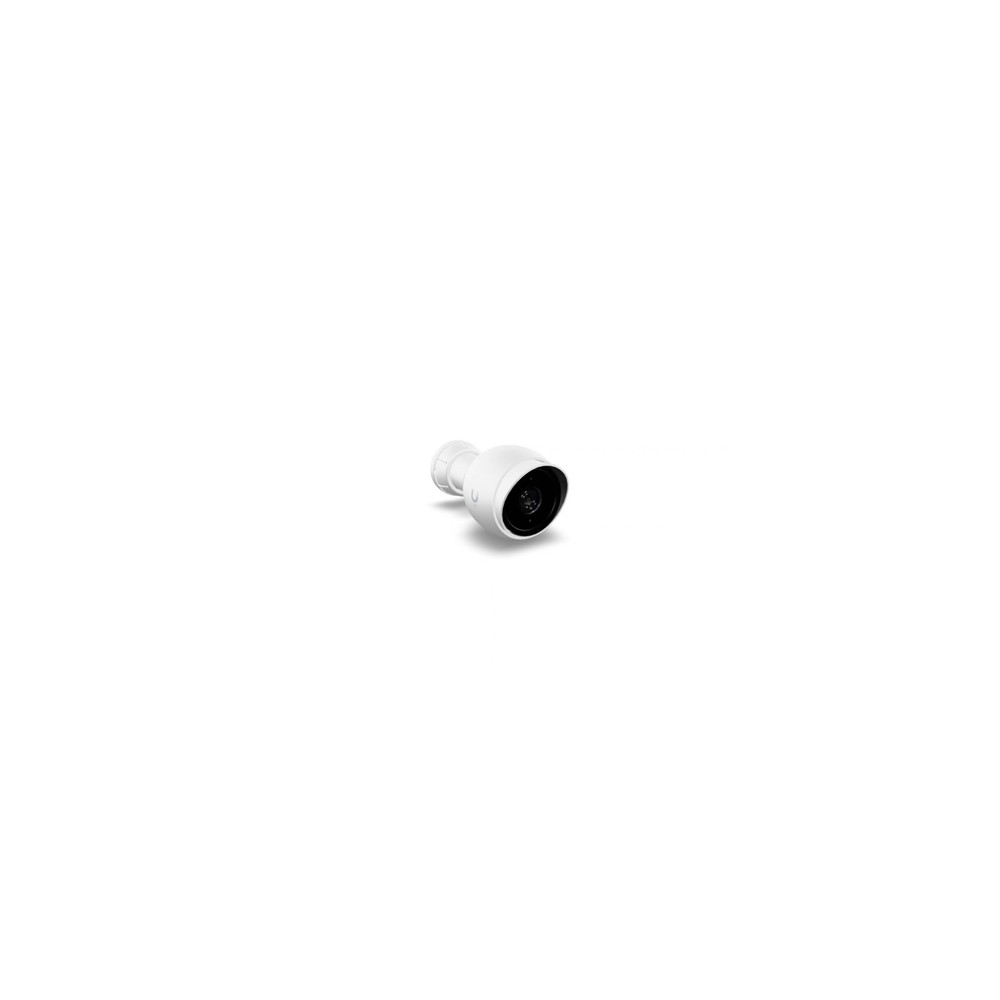

The Ubiquiti UVC-G5-BULLET-3 is a three-camera bundle of UniFi G5 Bullet network cameras for indoor or outdoor surveillance deployments. Each camera captures 4MP 2688 × 1512 video at up to 30 FPS and uses a fixed focal-length lens with an 84.4° horizontal field of view. Integrated infrared illumination provides night vision up to 30 ft, while the built-in microphone supports audio recording.
Technical Information
Each G5 Bullet uses a 5MP CMOS sensor and a dual-core Arm Cortex-A7-based processor. The camera provides 2K video with H.264 and MJPEG compression, image controls including brightness, contrast, sharpness, exposure and white balance, and 2D/3D noise reduction. Smart detections support people, vehicles, and animals.
Network connectivity is provided through a 10/100 MbE RJ45 port, with power delivered using PoE. Maximum power consumption is 4W and the supported voltage range is 37–57V DC.
Compatibility and Installation
The UVC-G5-BULLET-3 is managed through the UniFi Protect application and is designed for wall, ceiling, or pole mounting. The standard mounting arrangement is included, while a junction box is available separately for installations that require one. The camera's mount provides three-axis adjustment for positioning the viewing direction.
Key Features
- Three UniFi G5 Bullet cameras in one UVC-G5-BULLET-3 package
- 4MP 2688 × 1512 video at up to 30 FPS
- 9 m (30 ft) IR night vision with integrated IR illumination
- AI detections for people, vehicles, and animals
- 10/100 MbE Ethernet with PoE power and integrated microphone
Applications
The three-camera configuration can be used to cover multiple entrances, exterior approaches, interior areas, corridors, parking areas, or other locations requiring several UniFi Protect cameras. The IP55 enclosure rating and operating temperature range of -4°F to 104°F support outdoor deployments within the manufacturer's specified environmental conditions.
DC Supplies Product Note
Each camera requires a compatible PoE network connection capable of supplying its 4W maximum power requirement. Plan PoE switch port availability and Ethernet runs for all three cameras when deploying the complete UVC-G5-BULLET-3 set.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G5-BULLET-3 |
|---|
| Product Type | 2K PoE Bullet Network Camera 3-Pack |
|---|
| Product Family | UniFi G5 Bullet |
|---|
| Pack Quantity | 3 cameras |
|---|
| Video Resolution | 4MP, 2688 × 1512, 16:9 |
|---|
| Maximum Frame Rate | 30 FPS |
|---|
| Image Sensor | 5MP CMOS |
|---|
| Lens | Fixed focal length |
|---|
| Field of View | 84.4° horizontal, 45.4° vertical, 99.8° diagonal |
|---|
| IR Night Vision | Up to 30 ft (9 m) |
|---|
| Smart Detections | People, vehicles, animals |
|---|
| Video Compression | H.264, MJPEG |
|---|
| Networking Interface | 10/100 MbE RJ45 |
|---|
| Power Method | PoE |
|---|
| Supported Voltage Range | 37–57V DC |
|---|
| Maximum Power Consumption | 4W per camera |
|---|
| Microphone | Integrated; can be disabled in software |
|---|
| Mounting | Wall, ceiling, pole mount |
|---|
| Weatherproofing | IP55 |
|---|
| Impact Resistance | IK04 |
|---|
| Enclosure Material | Polycarbonate, aluminum alloy |
|---|
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
|---|
| Operating Humidity | 0–90% noncondensing |
|---|
| Dimensions Without Mount | 3.0 in diameter × 2.9 in |
|---|
| Dimensions With Mount | 3.0 in diameter × 5.9 in |
|---|
| Weight Without Mount | 0.50 lb per camera |
|---|
| Weight With Mount | 0.69 lb per camera |
|---|
| Certifications | FCC, IC, CE |
|---|
FAQs
How many cameras are included with UVC-G5-BULLET-3?
The UVC-G5-BULLET-3 is supplied as a three-camera package.
What resolution does the G5 Bullet record?
Each camera records at 2688 × 1512 resolution, identified by Ubiquiti as 2K and 4MP, with a maximum frame rate of 30 FPS.
Does the G5 Bullet support night vision?
Yes. Each camera has integrated IR LED illumination and provides night vision up to 30 ft (9 m).
How is each camera powered?
Each G5 Bullet uses PoE through its 10/100 MbE RJ45 network connection and has a maximum power consumption of 4W.
Can these cameras be mounted outdoors?
Yes. The cameras are rated IP55 and support an operating temperature range of -4°F to 104°F, subject to the manufacturer's specified installation conditions.
