Overview

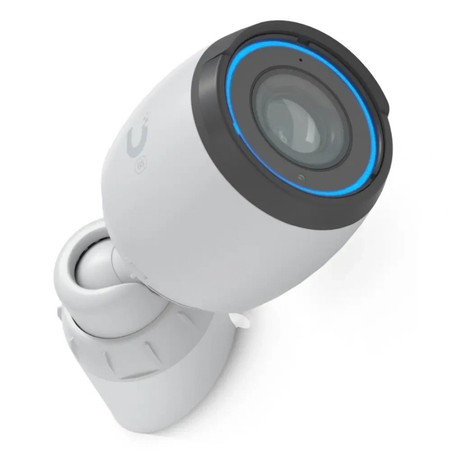

The Ubiquiti UACC-BULLET-AB-W is a white Bullet Camera Angled Base designed to provide an additional 22° of tilt for compatible Ubiquiti Bullet cameras. The angled mounting accessory is intended to help achieve an unrestricted viewing angle and is particularly suited to installations where a camera is mounted beneath an eave.
The base is constructed from aluminum alloy and has an IPX5 weatherproofing rating. Its compact design provides an angled mounting interface while maintaining compatibility with the specified Bullet camera models.
Camera Compatibility
The UACC-BULLET-AB-W is specifically compatible with the UVC-G4-Pro, UVC-G5-Pro, and UVC-AI-Pro-W. The black UACC-BULLET-AB-B is a separate variant intended for different camera models, so it should not be substituted for this white MPN when selecting a compatible accessory.
Mounting and Viewing Angle
The angled base increases the camera's tilt angle by 22°, helping reposition a compatible Bullet camera when the standard mounting position does not provide the desired field of view. Ubiquiti identifies under-eave mounting as an intended use for the accessory.
The accessory also supports the G5 Pro Enhancer and AI DSLR Outdoor Case according to Ubiquiti's product information.
Key Features
- Adds 22° of tilt to compatible Bullet camera installations
- Designed to help achieve an unrestricted viewing angle
- Aluminum alloy construction with IPX5 weatherproofing
- White finish for compatible Ubiquiti camera installations
- Compatible with UVC-G4-Pro, UVC-G5-Pro, and UVC-AI-Pro-W
Applications
The UACC-BULLET-AB-W is intended for installations where a compatible Bullet camera requires additional angular adjustment. It is especially useful for mounting beneath eaves, where the additional 22° of tilt can help position the camera for the required viewing angle.
DC Supplies Product Note
Compatibility is MPN-specific. The white UACC-BULLET-AB-W is specified for the UVC-G4-Pro, UVC-G5-Pro, and UVC-AI-Pro-W. If the installation uses a different Bullet camera, verify its compatibility before ordering rather than assuming that the visually similar black UACC-BULLET-AB-B is interchangeable.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-BULLET-AB-W |
| Product Type | Bullet Camera Angled Base |
| Product Family | UniFi Protect |
| Color | White |
| Enclosure Material | Aluminum alloy |
| Added Tilt Angle | 22° |
| Dimensions | Ø62 x 55 mm (Ø2.4 x 2.2 in) |
| Weight | 65 g (2.3 oz) |
| Weatherproofing | IPX5 |
| Compatible Camera | UVC-G4-Pro |
| Compatible Camera | UVC-G5-Pro |
| Compatible Camera | UVC-AI-Pro-W |
| Additional Compatibility | G5 Pro Enhancer |
| Additional Compatibility | AI DSLR Outdoor Case |
FAQs
What is the UACC-BULLET-AB-W?
It is an angled mounting base for compatible Ubiquiti Bullet cameras. It adds 22° of tilt to the camera installation.
Which cameras are compatible with this white angled base?
Ubiquiti specifies compatibility with the UVC-G4-Pro, UVC-G5-Pro, and UVC-AI-Pro-W.
How much additional tilt does the base provide?
The angled base increases the camera's tilt angle by 22°.
Is the UACC-BULLET-AB-W weatherproof?
Ubiquiti specifies an IPX5 weatherproofing rating for the angled base.
What material is the angled base made from?
The base uses aluminum alloy construction.
Is this a complete camera mounting system?
No. The UACC-BULLET-AB-W is an angled mounting accessory for specified compatible Bullet cameras. It does not include a camera.
