Overview

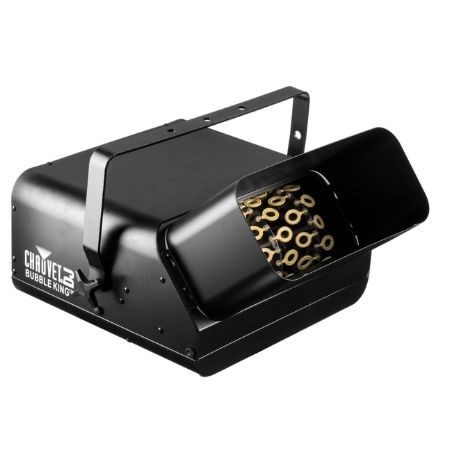

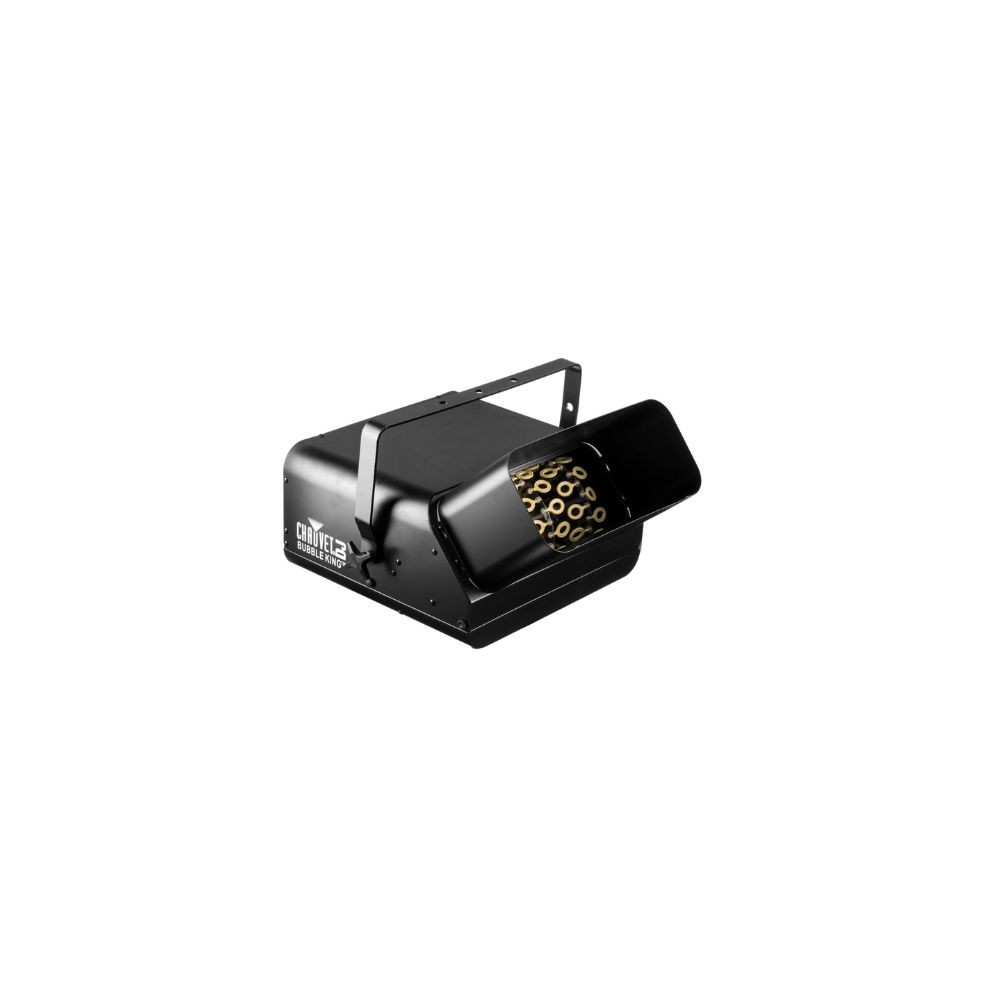

The Chauvet & Sons B550 Bubble King is a high-output effects machine designed to generate bubbles for entertainment venues, stage productions, DJ events, parties, and other applications requiring broad bubble coverage. Its three double wands distribute bubble solution to produce a continuous visual effect across a performance or event area.
The machine features a manually operated bubble button and a removable fluid tank for refilling and routine maintenance. Its 56 oz (1.7 L) tank supports extended operation between refills, while the specified fluid consumption is approximately 324 mL per hour under the manufacturer's stated operating conditions.
The B550 is available in voltage-specific configurations for 120 V AC, 60 Hz or 230 V AC, 50 Hz operation. These versions have different electrical characteristics, so buyers must select the correct regional model. Optional timer remote, wireless remote, and DMX adapter/timer accessories are listed separately.
Key Features
High bubble output: Designed for broad bubble coverage at events.
Three double wands: Provides multiple bubble-generating wands.
Manual bubble control: Includes a dedicated manual activation button.
Removable fluid tank: Simplifies refilling and routine cleaning.
Voltage-specific versions: Available for 120 V or 230 V operation.
Technical Specifications
| Specification | Details |
|---|
| Brand | Chauvet & Sons |
| Manufacturer Part Number | B550 |
| Product Name | Bubble King |
| Product Category | Bubble effect machine |
| Effect Type | High-output bubble generation |
| Bubble Wands | 3 double wands |
| Fluid Tank Capacity | 56 oz (1.7 L) |
| Fluid Consumption | 324 mL/hour |
| Operating Voltage | 120 V AC, 60 Hz or 230 V AC, 50 Hz, depending on model |
| Power Consumption | 88 W at 120 V; 84 W at 230 V, per manufacturer manual |
| Operating Current | 1.1 A at 120 V; 0.4 A at 230 V |
| Fuse | F 2 A, 250 V, according to the manufacturer manual |
| Dimensions (L × W × H) | 19 × 15 × 12 inches (483 × 381 × 305 mm) |
| Weight | 13.2 lb (5.9 kg) |
| Maximum External Temperature | 104°F (40°C) |
| Included Accessories | Power cord, hanging bracket with mounting hardware, quick reference documentation |
Product Note
Chauvet & Sons B550 identifies the Bubble King bubble effect machine. Confirm the exact voltage version before ordering because the 120 V and 230 V models have different electrical requirements. Bubble fluid is required for operation and should be selected according to Chauvet's recommendations. Optional remote and DMX control accessories are not confirmed as included in the standard package.
Frequently Asked Questions
What is Chauvet & Sons B550?
B550 is the Chauvet Bubble King, a high-output bubble effect machine designed for entertainment, stage, and event applications.
How does the Bubble King generate bubbles?
The machine uses three double wands that rotate through bubble solution to generate a high volume of bubbles. A manual button provides direct activation.
What is the fluid tank capacity?
The manufacturer specifies a 56 oz (1.7 L) tank. Actual operating time depends on fluid consumption and operating conditions.
Which power supply does the B550 require?
The manufacturer documents voltage-specific versions for 120 V AC at 60 Hz or 230 V AC at 50 Hz. Select the version that matches the installation's electrical supply.
Are remote controls included?
Optional timer remote, wireless remote, and DMX adapter/timer accessories are listed for the B550. Confirm accessory inclusion with the seller before purchasing.
What maintenance does the machine require?
Routine maintenance includes cleaning the fluid tank and bubble wands to prevent residue buildup. Disconnect power before cleaning and follow the manufacturer's manual.
