Detailed Specifications

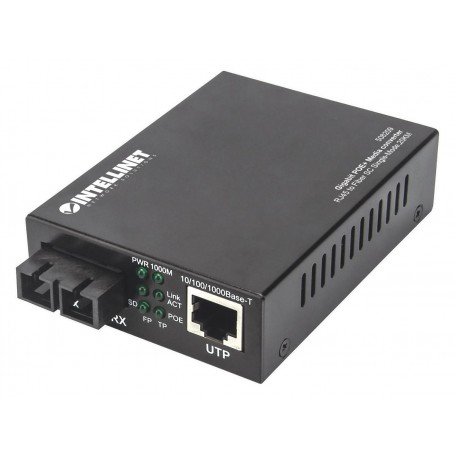

INTELLINET 508209 - Gigabit PoE+ Media Converter
Overview :
The INTELLINET 508209 Gigabit PoE+ Media Converter integrates copper Ethernet infrastructure with long-range optical networks while delivering DC power to remote endpoints. Built for network engineers, IT administrators, and security integration teams, it bridges standard RJ45 local area networks with single-mode fiber backbones, eliminating the need to install localized AC electrical circuits at remote equipment sites.
Equipped with one 10/100/1000Base-T RJ45 port and one 1000Base-LX SC single-mode fiber port, the converter translates electrical signals to optical signals over a 1310 nm wavelength. It delivers full Gigabit throughput across distances up to 20 kilometers (12.4 miles) over 9/125 µm fiber cabling. The integrated IEEE 802.3at/af PoE+ injector supplies up to 30 watts of power directly through the RJ45 port. Built-in Link Fault Passthrough (LFP) enables continuous link monitoring to minimize network downtime.
Housed in a compact IP30 metal enclosure, the unit operates as a standalone desktop device, mounts to walls, or installs into multi-slot rack chassis. It is engineered for powering remote IP PTZ surveillance cameras, outdoor wireless access points, building-to-building links, and VoIP communication systems. Do not use with multi-mode fiber cabling, passive non-standard PoE hardware, or connected load devices exceeding 30 watts.
Key Features :
Converts 1000Base-T copper to 1000Base-LX SC fiber.
Extends Gigabit Ethernet links up to 20 km over single-mode.
Supplies up to 30W PoE+ power to remote network endpoints.
Link Fault Passthrough function simplifies network maintenance.
Compact metal housing supports desktop or wall-mount install.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 508209 |
| Product Type | Gigabit PoE+ Media Converter |
| Data Rate | 10/100/1000 Mbps |
| Copper Port | 1x 1000Base-T RJ45 (Auto MDI/MDI-X) |
| Fiber Port | 1x 1000Base-LX Single-Mode SC Duplex |
| Optical Wavelength | 1310 nm |
| Fiber Distance | Up to 20 km (12.4 mi) |
| Fiber Cable Type | Single-Mode 8.3/125 µm to 10/125 µm |
| PoE Output | IEEE 802.3at / 802.3af (Up to 30.0 Watts) |
| Features | Link Fault Passthrough (LFP), Jumbo Frames (9 kB) |
| Housing Material | IP30 Slim Metal Enclosure |
| Input Power | 56 V DC, 0.5 A (External Adapter) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, NDAA |
