Detailed Specifications

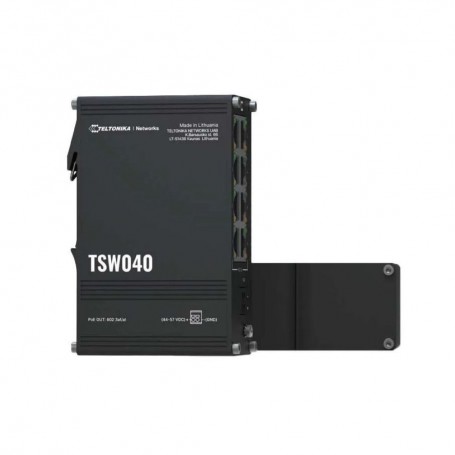

Teltonika TSW040000001 8Port PoE+ Switch
Overview
The Teltonika TSW040000001 is an unmanaged PoE+ Ethernet switch designed for industrial network deployments requiring power and data over a single infrastructure. It provides eight 10/100 Mbps RJ45 ports with PoE+ output, delivering power to connected devices such as cameras, access points, and VoIP phones. The unit is for fixed installations in cabinets and enclosures and is suitable for harsh environments with wide temperature and voltage tolerance. It mounts easily on a DIN rail and integrates into existing industrial Ethernet networks.
Key Features
• 8× 10/100 Mbps PoE+ RJ45 ports
• 240 W total PoE power budget
• Wide 7-57 V DC input range
• Integrated DIN-rail mounting
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW040000001 |
| Product Type | Industrial PoE+ Ethernet Switch |
| Ethernet Ports | 8× RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power per Port | Up to 30 W |
| Total PoE Budget | 240 W |
| DC Input Voltage | 7-57 V DC |
| Power Connector | 2-pin industrial DC |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 2048 entries |
| Mounting | Integrated DIN rail |
| Operating Temp. | -40 °C to 75 °C |
| Ingress Protection | IP30 |
| Weight | 280 g |
