Detailed Specifications

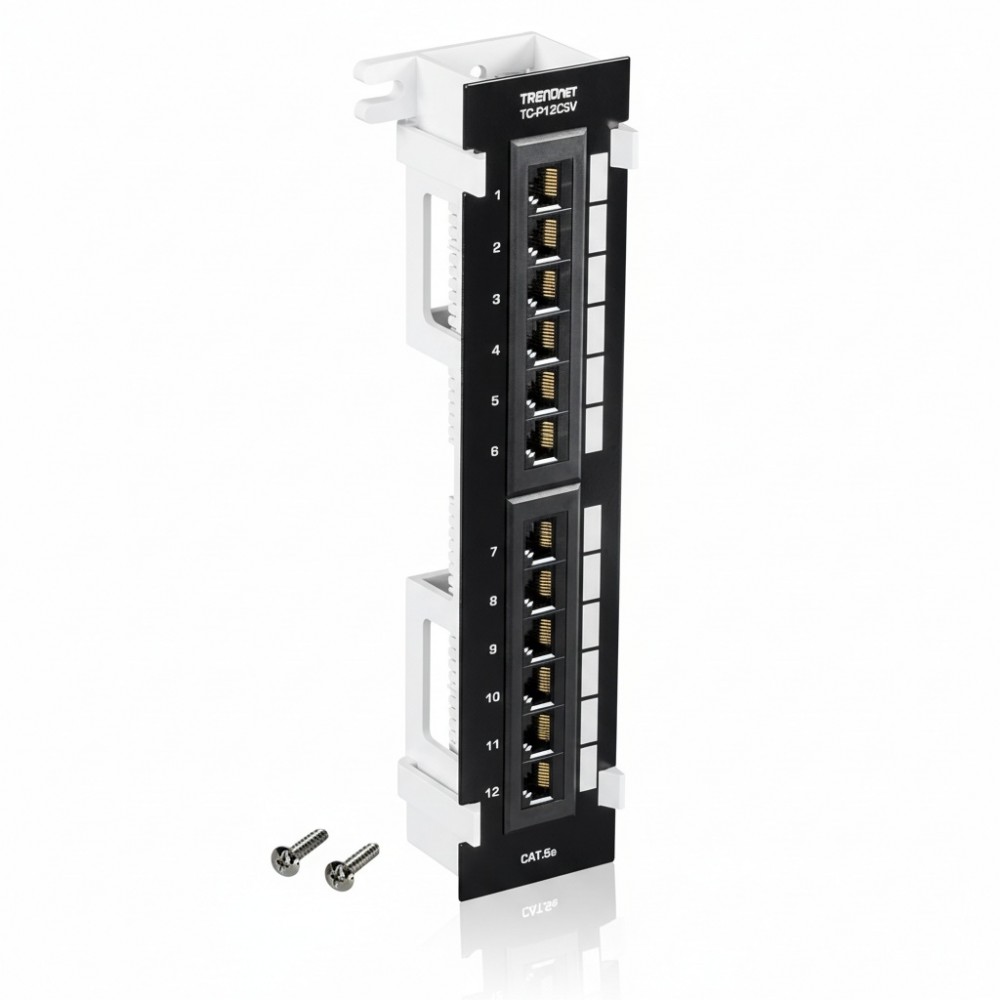

TRENDnet TC-P12C5V - 12-Port Cat5e Wall Mount Patch Panel
Overview :
The TRENDnet TC-P12C5V is a 12-port Cat5e unshielded patch panel designed for network engineers who need organized terminations in small offices, wiring closets or edge-cabinets. It supports up to 100 MHz bandwidth and is compatible with both Cat5e and Cat6 cabling, thus addressing structured cabling requirements for 10/100/1000Base-T deployments. With a compact 10-inch form-factor and an included 89D wall-mount bracket, it installs vertically or horizontally for flexibility in branch or edge-location environments. The unit uses 110 IDC termination blocks with colour-coded T568A/B labels to simplify cabling and integrates within standard ANSI/EIA/TIA-568 and ISO/IEC-11801 wiring frameworks.
Key Features
12 RJ-45 ports compatible with Cat5e and Cat6 cabling
110 IDC termination blocks with T568A/B colour-coded labels
Included 89D bracket for vertical or horizontal wall mounting
Rated for 10-inch panel size; compact footprint for smaller racks
Insulation resistance ≥ 500 MΩ and contact resistance ≤ 35 mΩ
Technical Specifications
| Specification | Detail |
|---|
| Brand | TRENDnet |
| Part Number | TC-P12C5V |
| Product Type | 12-Port Cat5e Wall Mount Patch Panel |
| Number of RJ-45 Ports | 12 |
| Supported Cabling | Cat5e, Cat6 |
| Termination Type | 110 IDC with Krone or 110 tools |
| Wiring Schemes | T568A and T568B |
| Construction Material | SPCC steel |
| Dimensions | 2.24 in x 9.96 in x 1.92 in (H x W x D) |
| Weight | 0.64 lb (10.3 oz) |
| Operating Temperature | -10 °C to 60 °C (14 °F to 140 °F) |
| Current Rating | 1.5 A at 20 °C |
| Insulation Resistance | ≥ 500 MΩ |
| Contact Resistance | ≤ 35 mΩ |
| Plug Retention Force | 13.3 kg (29 lb) |
