Overview

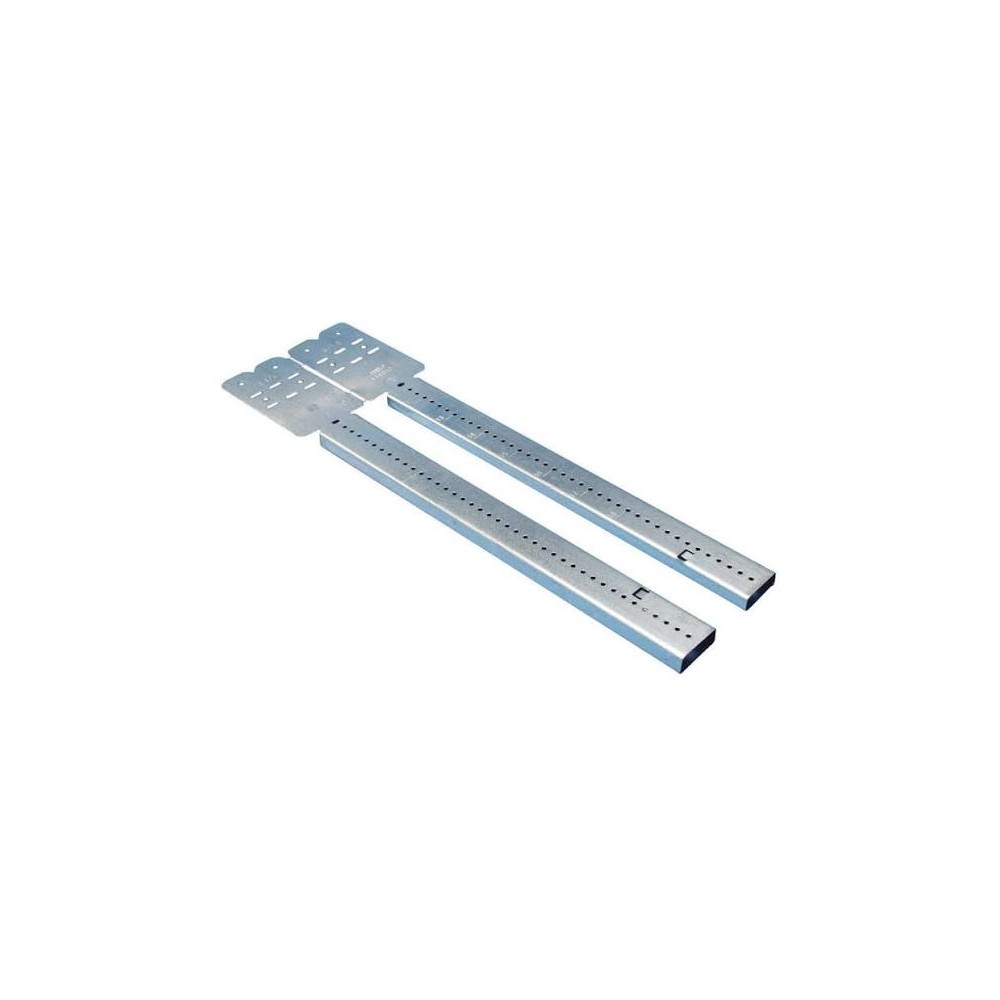

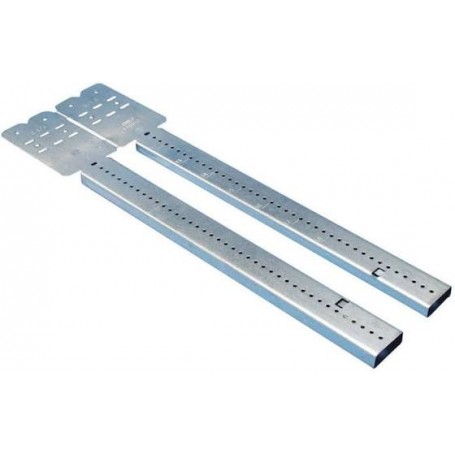

The nVent CADDY TSGB16 is a telescoping steel bracket designed to support electrical boxes between wall studs. Its adjustable construction accommodates stud spacing from 11 to 18 inches and supports compatible electrical box depths of 1-1/2 and 2-1/8 inches.
Installation and Compatibility
The bracket can be mounted to the face or inside of a stud. Stamped measurements, notches, and pilot holes help installers position and attach electrical boxes. Its adjustable design accommodates non-standard stud spacing within the specified range.
Key Features
- Adjustable stud spacing from 11 to 18 inches.
- Compatible with 1-1/2-inch and 2-1/8-inch-deep electrical boxes.
- Pre-galvanized steel construction.
- Pilot holes support electrical box attachment.
- Interlocking tab helps prevent accidental disassembly.
Applications
Suitable for electrical box support in residential and commercial construction, including installations involving electrical wiring, low-voltage systems, communications, HVAC, and related building services.
DC Supplies Product Note
Confirm the wall-stud spacing and electrical box depth before ordering. The TSGB16 accommodates 11–18-inch stud spacing; other models in the TSGB series cover different spacing ranges.
Specifications
| Specification | Details |
|---|
| Brand | nVent CADDY |
| Part Number / MPN | TSGB16 |
| Product Type | Telescoping screw gun box bracket |
| Material | Steel |
| Finish | Pre-galvanized |
| Stud Spacing | 11–18 inches |
| Compatible Box Depths | 1-1/2 inches and 2-1/8 inches |
| Mounting Position | Face or inside of stud |
| Design | Adjustable, one-piece, break-apart construction |
| Installation Features | Stamped inch markings, notches, and pilot holes |
| Retention Feature | Interlocking tab |
| Certifications | cULus listed |
| Standard Packaging Quantity | 50 pieces |
| UPC | 782856476160 |
| EAN-13 | 8711893038347 |
Frequently Asked Questions
What stud spacing does the TSGB16 support?
The bracket adjusts to stud spacing from 11 to 18 inches.
Which electrical box depths are supported?
It supports compatible electrical boxes with depths of 1-1/2 inches or 2-1/8 inches.
Can the bracket be installed inside a stud?
Yes. It can be mounted to the face or inside of a compatible stud. Follow the manufacturer's installation instructions.
How is the electrical box attached?
The bracket includes pilot holes to assist with electrical box attachment. Use appropriate fasteners and follow the manufacturer's instructions.
How many brackets are in the standard package?
The manufacturer's standard packaging quantity is 50 pieces. Confirm the selling unit and package quantity with the supplier before ordering.
