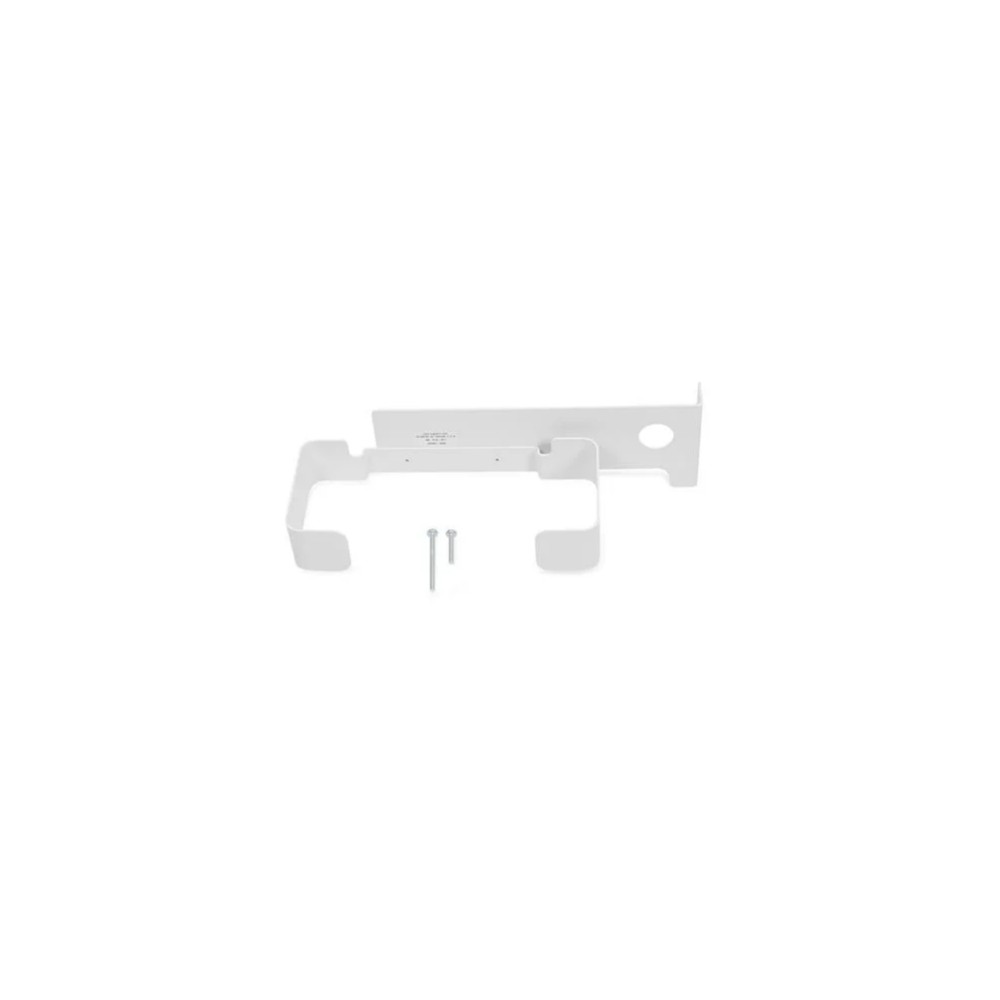

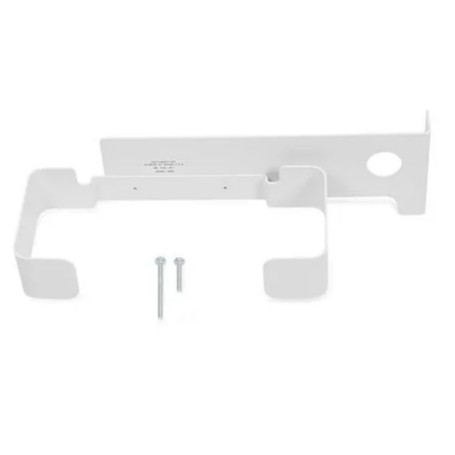

Ergotron 98-414-251 – SV Sharps Container Drawer-Mount Bracket Kit, White
Overview
The Ergotron 98-414-251 is an SV Sharps Container Drawer-Mount Bracket Kit designed for StyleView medical carts with drawers. The bracket provides a dedicated mounting point for a compatible sharps container and can be installed on either side of primary or secondary drawers.
Technical Information
The 98-414-251 is a white, cart-mountable bracket supplied with the bracket for the container and attachment hardware. It supports a maximum load of up to 5 lb (2.3 kg) and has product dimensions of 13.6 × 5.7 × 4 inches. The bracket is designed for convenient sharps disposal while maintaining an accessible and easy-to-clean workstation configuration.
Compatibility
The bracket is compatible with StyleView carts equipped with drawers. Published compatibility information includes multiple StyleView SV43 and SV44 cart configurations as well as V8506 sharps containers. The mounting position can be selected on the left or right side of primary and secondary drawers.
Key Features
- Designed for Ergotron StyleView medical carts with drawers
- Mounts a compatible sharps container to the cart drawer
- Supports up to 5 lb (2.3 kg) maximum load
- Can mount on the left or right side of primary or secondary drawers
- Includes container bracket and attachment hardware
Applications
The 98-414-251 is intended for healthcare environments using StyleView mobile carts where safe and accessible sharps disposal is required. Drawer-side mounting keeps the sharps container close to the clinical workstation while avoiding unnecessary use of the primary work surface.
DC Supplies Product Note
The Ergotron 98-414-251 is a mounting accessory and not a sharps container or complete medical cart. Verify that the host StyleView cart has a compatible drawer configuration and that the mounted container and contents remain within the specified load capacity. V8506 sharps containers are among the published compatible containers.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-414-251 |
|---|
| Product | SV Sharps Container Drawer-Mount Bracket Kit |
|---|
| Product Type | Mounting Bracket Kit |
|---|
| Product Line | StyleView |
|---|
| Color | White |
|---|
| Maximum Load Capacity | 5 lb (2.3 kg) |
|---|
| Product Dimensions | 13.6 × 5.7 × 4 in (34.5 × 14.5 × 10 cm) |
|---|
| Product Weight | 1.5 lb (0.7 kg) |
|---|
| Mounting Location | Left or right side of primary or secondary drawers |
|---|
| Compatible Carts | StyleView carts with drawers |
|---|
| Compatible Container | V8506 sharps container |
|---|
| Included Components | Bracket for container, attachment hardware |
|---|
| Shipping Dimensions | 14 × 6 × 4 in (35.5 × 15 × 10.5 cm) |
|---|
| Shipping Weight | 3 lb (1.4 kg) |
|---|
| Country of Origin | United States |
|---|
| TAA Compliant | Yes |
|---|
| Warranty | 10 years |
|---|
FAQs
What is the Ergotron 98-414-251?
The 98-414-251 is an SV Sharps Container Drawer-Mount Bracket Kit for Ergotron StyleView medical carts with drawers. It provides a mounting point for a compatible sharps container.
What is the maximum load capacity?
The bracket supports up to 5 lb (2.3 kg). Some distributor databases express the value as 5.10 lb, but Ergotron-supported product information and multiple distributors specify 5 lb, so the listing uses 5 lb.
Where can the bracket be mounted?
The bracket mounts to the left or right side of primary and secondary drawers on compatible StyleView carts.
Which StyleView carts are compatible?
Ergotron specifies compatibility with StyleView carts with drawers. Published compatibility lists include numerous SV43 and SV44 configurations.
Which sharps container is specified for the bracket?
Published compatibility information identifies the V8506 sharps container as a compatible container.
What are the dimensions of the bracket?
The product measures 13.6 inches wide × 5.7 inches deep × 4 inches high (34.5 × 14.5 × 10 cm).
What is included with the 98-414-251?
The kit includes the bracket for the container and the required attachment hardware.
Does the 98-414-251 include the sharps container?
No. The 98-414-251 is the drawer-mount bracket kit. The compatible sharps container must be purchased separately.
