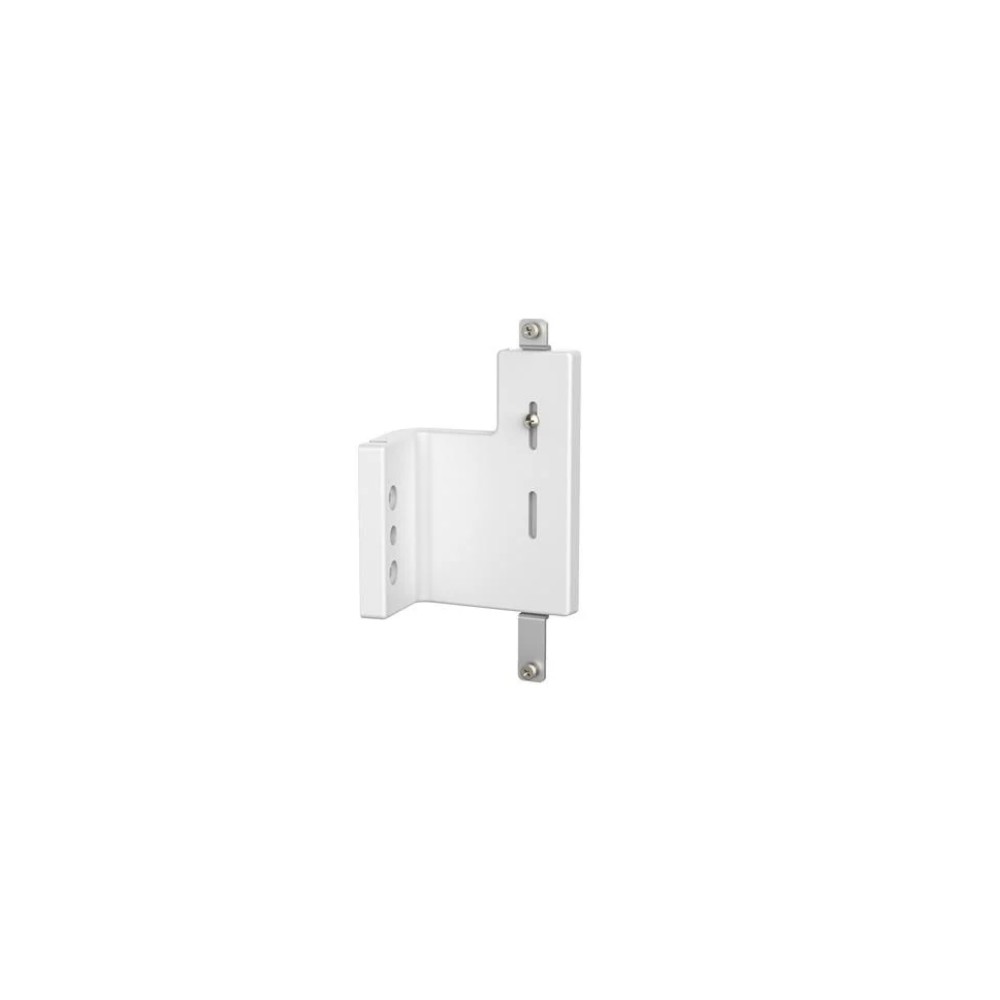

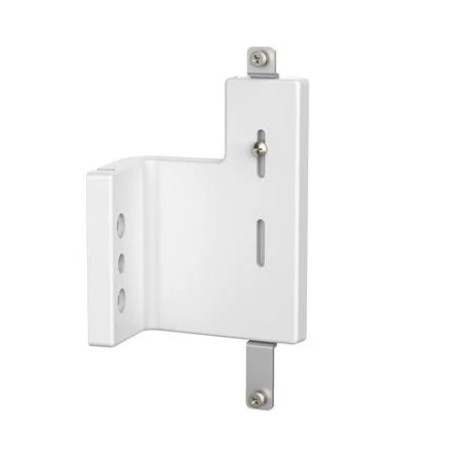

Ergotron 98-425-030 – CareFit Enclosure Vertical Scanner Bracket, Snow White
Overview
The Ergotron 98-425-030 is a CareFit Enclosure Vertical Scanner Bracket in Snow White. It provides an accessible mounting location for a barcode scanner on compatible CareFit Enclosure wall-mounted workstations, supporting medication delivery and other healthcare workflows. Ergotron identifies 98-425-030 as the Snow White vertical scanner bracket.
Technical Information
The bracket attaches to the T-slot on the CareFit Enclosure side rail and can be installed at different heights. This allows the scanner position to be adjusted for user ergonomics and workflow requirements. The bracket supports a scanner load of up to 2 lb (0.9 kg) and incorporates cable management for a cleaner installation.
Compatibility
The 98-425-030 is designed for Ergotron CareFit Enclosure models 61-367-030 and 61-367-060. Published compatibility information specifies the Zebra DS8178 Wireless Scanner with standard cradle and the Symbol LS4278. The T-slot bracket mounts to the left or right side rail after removal of the enclosure filler strip.
Key Features
- CareFit Enclosure vertical scanner bracket
- Snow White finish for the exact 98-425-030 configuration
- Supports scanner loads up to 2 lb (0.9 kg)
- Multiple installation points allow adjustable scanner height
- Includes vertical holder, T-slot bracket, and attachment hardware
Applications
The 98-425-030 is intended for healthcare environments where barcode scanning equipment needs to remain readily accessible from a CareFit Enclosure workstation. Its vertically oriented holder supports scanner access for medication delivery and other mobile clinical workflows.
DC Supplies Product Note
The Ergotron 98-425-030 is a scanner mounting accessory, not a complete CareFit Enclosure or barcode scanner. Verify the host workstation and scanner model before ordering. The bracket is specified for a maximum scanner load of 2 lb (0.9 kg).
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-425-030 |
|---|
| Product | CareFit Enclosure Vertical Scanner Bracket |
|---|
| Product Type | Scanner mounting bracket |
|---|
| Product Family | CareFit |
|---|
| Color | Snow White |
|---|
| Orientation | Vertical |
|---|
| Maximum Load Capacity | 2 lb (0.9 kg) |
|---|
| Height Adjustable | Yes |
|---|
| Mounting Interface | T-slot |
|---|
| Mounting Location | Left or right side rail |
|---|
| Compatible CareFit Enclosures | 61-367-030; 61-367-060 |
|---|
| Compatible Scanners | Zebra DS8178 Wireless Scanner with standard cradle; Symbol LS4278 |
|---|
| Included Components | Vertical holder, T-slot bracket, attachment hardware |
|---|
| Product Weight | 0.4 lb |
|---|
| Shipping Dimensions | 8.75 × 6.5 × 3.8 in (22 × 16.5 × 9.6 cm) |
|---|
| Shipping Weight | 0.9 lb |
|---|
| Warranty | 5 years for mechanical components |
|---|
FAQs
What is the Ergotron 98-425-030?
The 98-425-030 is a CareFit Enclosure Vertical Scanner Bracket in Snow White, designed for mounting a compatible barcode scanner to a CareFit Enclosure workstation.
What is the maximum load capacity?
The bracket supports up to 2 lb (0.9 kg).
Is the scanner bracket height adjustable?
Yes. Multiple installation points allow the bracket to be positioned at a suitable ergonomic height and repositioned as workflow requirements change.
Which CareFit Enclosures are compatible?
Published compatibility information identifies CareFit Enclosure models 61-367-030 and 61-367-060.
Which scanners are specified for the 98-425-030?
The published scanner compatibility list includes the Zebra DS8178 Wireless Scanner with standard cradle and the Symbol LS4278.
What is included with the 98-425-030?
The accessory includes the vertical holder, T-slot bracket, and attachment hardware.
Does the 98-425-030 include a barcode scanner?
No. The 98-425-030 is the mounting accessory only. The barcode scanner and CareFit Enclosure workstation are separate products.
