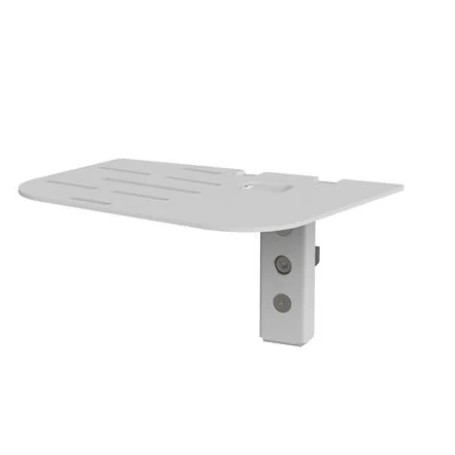

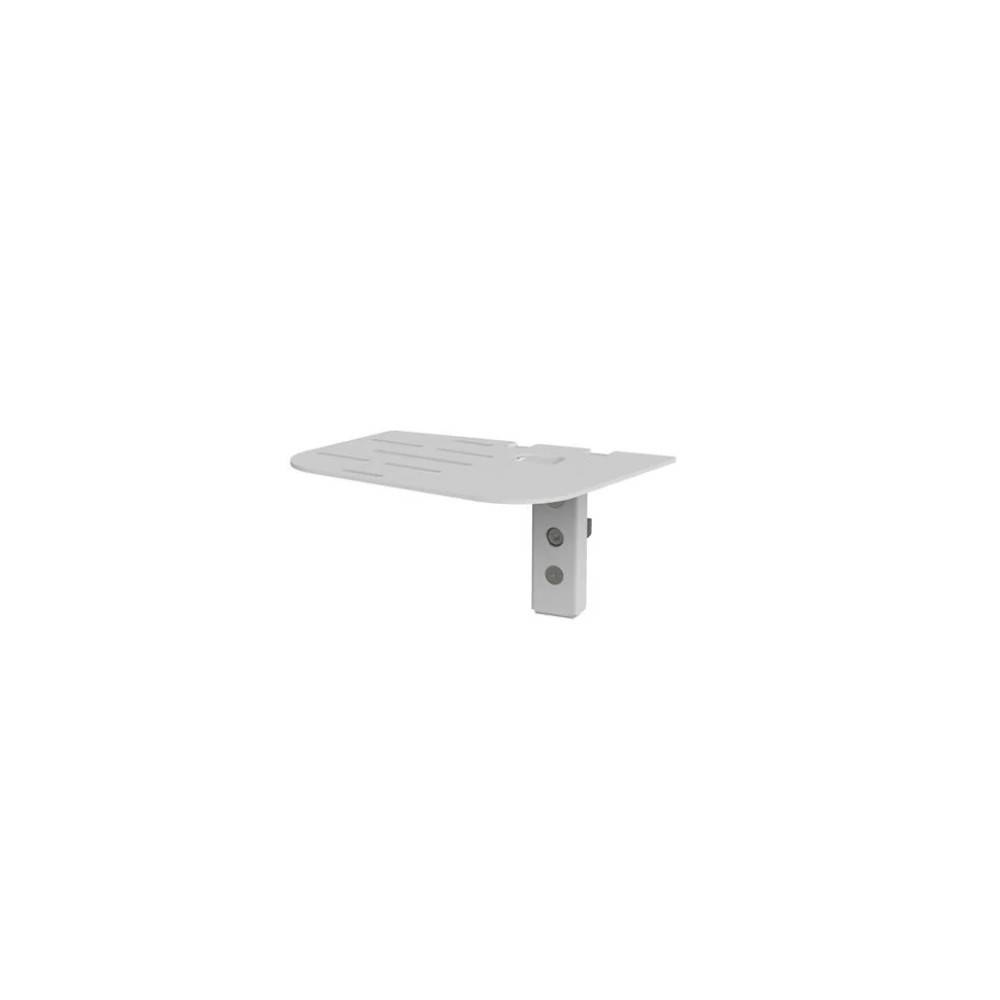

Ergotron 98-424-030 – CareFit Enclosure Horizontal Scanner Bracket, Snow White
Overview
The Ergotron 98-424-030 is a CareFit Enclosure Horizontal Scanner Bracket in Snow White. It provides accessible mounting for barcode scanners used in medication delivery and other healthcare workflows. The bracket attaches to the T-slot on the CareFit Enclosure and provides multiple installation positions for ergonomic height adjustment. Ergotron identifies 98-424-030 as the Snow White version of its horizontal scanner bracket.
Technical Information
The 98-424-030 uses a T-slot mounting bracket and includes two shelf options and attachment hardware. The horizontal bracket can be installed at different heights and repositioned as required. It supports a maximum scanner load of 2 lb (0.9 kg) and incorporates cable management to help maintain an organized workstation.
Compatibility
The 98-424-030 is designed for Ergotron CareFit Enclosures, including the CareFit Enclosure wall-mount computer workstation models 61-367-030 and 61-367-060. Supported scanner examples include the Zebra DS8178 Wireless Scanner in presentation style, Honeywell Xenon 1902H, DataLogic Gryphon GM4400, and Code CR2600 Handle + Palm kits and CR2700 Series.
Key Features
- CareFit Enclosure horizontal scanner mounting bracket
- Snow White finish for the exact 98-424-030 configuration
- Supports scanner loads up to 2 lb (0.9 kg)
- Multiple installation points allow adjustable mounting height
- Includes two shelf options, T-slot bracket, and attachment hardware
Applications
The 98-424-030 is intended for healthcare workstation environments requiring convenient scanner access for medication delivery and related workflows. Its adjustable T-slot mounting position allows the scanner to be positioned at a practical working height while keeping the CareFit Enclosure workstation organized.
DC Supplies Product Note
The Ergotron 98-424-030 is an accessory bracket and does not include the CareFit Enclosure workstation or barcode scanner. Confirm the host CareFit Enclosure model and scanner compatibility before ordering. The maximum supported scanner load is 2 lb (0.9 kg).
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-424-030 |
|---|
| Product | CareFit Enclosure Horizontal Scanner Bracket |
|---|
| Product Type | Scanner mounting bracket |
|---|
| Product Family | CareFit |
|---|
| Color | Snow White |
|---|
| Orientation | Horizontal |
|---|
| Maximum Load Capacity | 2 lb (0.9 kg) |
|---|
| Height Adjustable | Yes |
|---|
| Mounting Interface | T-slot |
|---|
| Mount Function | Cable management |
|---|
| Compatible CareFit Enclosure | 61-367-030; 61-367-060 |
|---|
| Supported Scanners | Zebra DS8178 Wireless Scanner; Honeywell Xenon 1902H; DataLogic Gryphon GM4400; Code CR2600 Handle + Palm kits; Code CR2700 Series |
|---|
| Included Components | Two shelf options, T-slot bracket, attachment hardware |
|---|
| Product Weight | 1.2 lb (0.54 kg) |
|---|
| Product Dimensions | 10.7 × 7.25 × 3 in (27 × 18 × 7.5 cm) |
|---|
| Shipping Weight | 1.9 lb |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 98-424-030?
The 98-424-030 is a CareFit Enclosure Horizontal Scanner Bracket in Snow White, designed to provide convenient scanner access on compatible CareFit Enclosures.
What is the maximum load capacity?
The bracket supports up to 2 lb (0.9 kg).
Is the 98-424-030 height adjustable?
Yes. The bracket has multiple installation points, allowing the scanner mounting height to be selected and repositioned as the workstation requirements change.
Which CareFit Enclosures are compatible?
Published compatibility information identifies the CareFit Enclosure wall-mount computer workstation models 61-367-030 and 61-367-060.
Which scanners are supported?
Ergotron documentation lists the Zebra DS8178 Wireless Scanner in presentation style, Honeywell Xenon 1902H, DataLogic Gryphon GM4400, and Code CR2600 Handle + Palm kits and CR2700 Series.
What is included with the 98-424-030?
The package includes two shelf options, a T-slot bracket, and attachment hardware.
Is the barcode scanner included?
No. The 98-424-030 is the mounting accessory only. The barcode scanner and CareFit Enclosure workstation are separate products.
