Overview

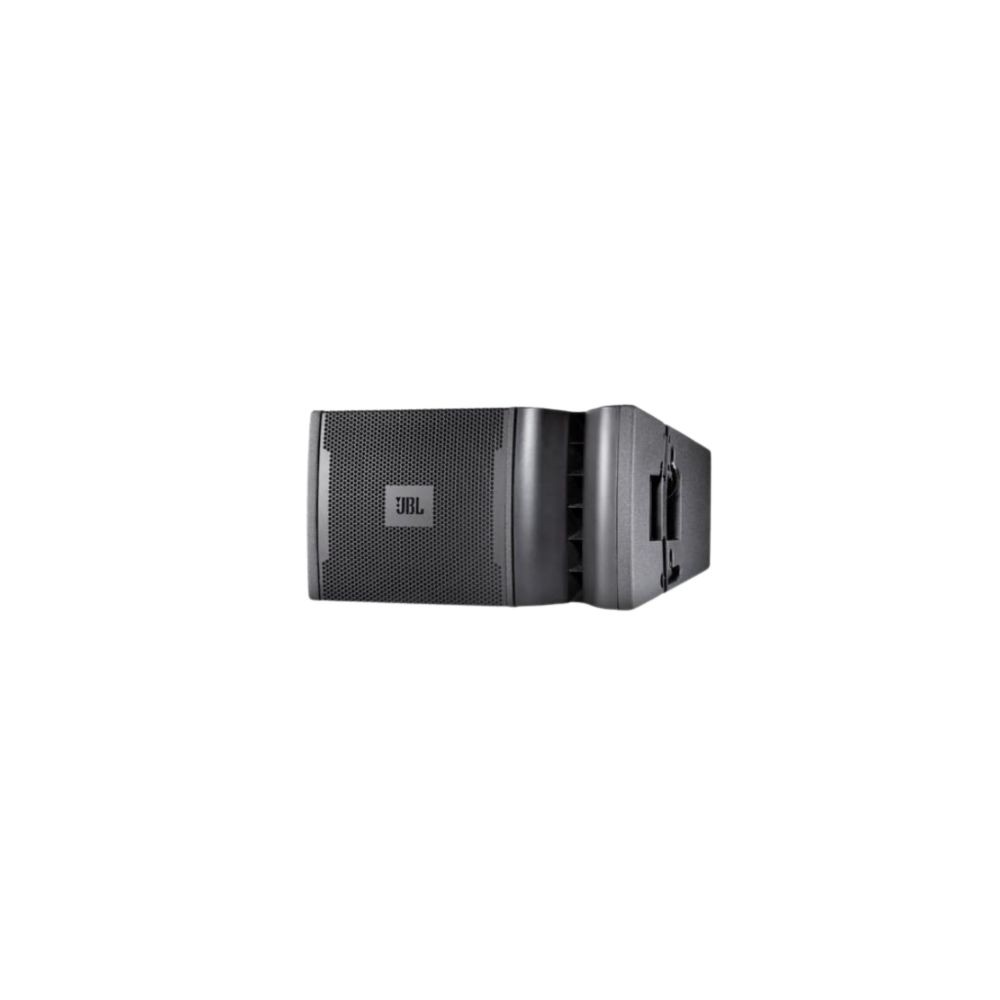

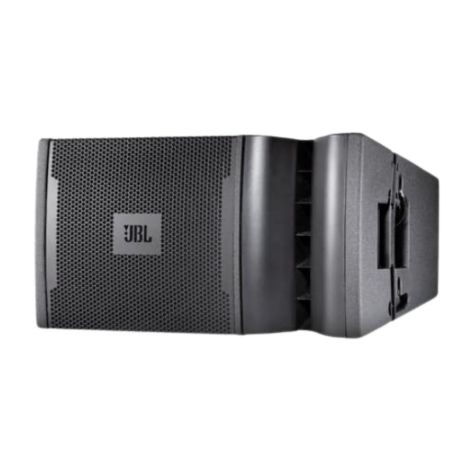

The JBL VRX932LAP is a powered, two-way, full-range line-array loudspeaker designed for professional sound reinforcement in small to medium-sized venues. It combines a 12-inch Differential Drive woofer, three high-frequency compression drivers, and an integrated amplifier and DSP module in a compact enclosure.
Its constant-curvature waveguide and 100° horizontal coverage support controlled sound distribution. Multiple cabinets can be combined into a line array, with the integrated Array Configuration Selector helping adjust high-frequency output across the array. Built-in rigging hardware and a dual-angle pole-mount socket provide options for suspended or pole-mounted setups.
Key Features
- Integrated powered system: The Crown-designed JBL DrivePack DPC-2 amplifier module provides 875W continuous and 1750W peak power ratings.
- 12-inch Differential Drive woofer: The neodymium-magnet woofer is designed to deliver high power capacity while keeping the enclosure relatively lightweight.
- Three high-frequency drivers: Three JBL 2408J annular-ring diaphragm compression drivers provide high-frequency reproduction through a constant-curvature waveguide.
- Array Configuration Selector: The integrated control supports amplitude shading to help optimize high-frequency coverage in multi-cabinet arrays.
- Flexible installation: Integrated rigging hardware, M10 suspension points and a dual-angle pole socket support compatible suspended and ground-based configurations.
Technical Information
The VRX932LAP has a nominal frequency response of 75Hz–20kHz within ±3dB and a frequency range of 57Hz–20kHz at -10dB. Its nominal coverage pattern is 100° horizontally by 15° vertically, with a specified peak sound pressure level of 136dB at 1 metre.
The integrated DrivePack DPC-2 module includes DSP-based system optimization and equalization. Audio connections consist of an XLR input with loop-through and an XLR output. The system uses a Neutrik PowerCon AC input and a PowerCon AC loop-through connector.
Applications
- Live music and performance sound reinforcement
- Corporate events and professional audiovisual productions
- Small to medium-sized venue sound systems
- Portable PA systems using compatible pole mounting
- Installed sound systems with appropriate array suspension hardware
Compatibility and System Planning
- Use a suitable professional audio signal source with the loudspeaker's XLR input.
- The XLR loop-through connections support signal routing to additional compatible equipment.
- Up to five VRX932LAP cabinets may be suspended in a single array, allowing a nominal combined vertical coverage angle of up to 75°.
- Suspended installations require the appropriate VRX-AF array frame or compatible 10mm forged eyebolts, selected and installed according to JBL documentation and applicable safety requirements.
- The enclosure's dual-angle pole-mount socket accepts compatible 36mm speaker poles or stands.
- For systems requiring extended low-frequency output, JBL identifies the VRX918SP, VRX918S and SRX781S subwoofers as compatible system options.
Specifications
| Brand | JBL |
|---|
| Part Number / MPN | VRX932LAP |
|---|
| Product Type | Powered two-way full-range line-array loudspeaker |
|---|
| Series | VRX900 |
|---|
| System Design | Constant-curvature line array |
|---|
| Low-Frequency Driver | 1 x JBL 2262FF, 305mm (12-inch) neodymium Differential Drive woofer |
|---|
| High-Frequency Drivers | 3 x JBL 2408J, 38mm (1.5-inch) voice-coil compression drivers |
|---|
| Amplifier Module | JBL DrivePack DPC-2, designed by Crown |
|---|
| Power Rating, Continuous | 875W |
|---|
| Power Rating, Peak | 1750W |
|---|
| Frequency Response (±3dB) | 75Hz–20kHz |
|---|
| Frequency Range (-10dB) | 57Hz–20kHz |
|---|
| Maximum Peak SPL | 136dB at 1m |
|---|
| Nominal Coverage | 100° horizontal x 15° vertical |
|---|
| Signal Processing | Integrated DSP-based system optimization and EQ |
|---|
| Array Control | Array Configuration Selector for amplitude shading |
|---|
| Audio Input | XLR |
|---|
| Audio Signal Connections | XLR input with loop-through; 1 x XLR output |
|---|
| AC Input Connector | Neutrik PowerCon NAC 3MPA |
|---|
| AC Loop-Through Connector | Neutrik PowerCon NAC 3MPB |
|---|
| AC Operating Range | 90–132VAC or 216–264VAC, 50/60Hz |
|---|
| Nominal AC Current Requirement | 6A per system at 120V; 3A per system at 240V |
|---|
| Enclosure Material | 25/15mm, 11-ply birch plywood |
|---|
| Finish | Black JBL DuraFlex finish |
|---|
| Grille | Black powder-coated 16-gauge perforated steel with acoustically transparent foam |
|---|
| Mounting | Integrated rigging hardware, M10 suspension points and dual-angle 36mm pole socket |
|---|
| Maximum Array Configuration | Up to five cabinets in a suspended array, subject to JBL array guidelines |
|---|
| Dimensions (H x W x D) | 349 x 597 x 444mm |
|---|
| Weight | 24kg (52lb) |
|---|
DC Supplies Product Note
The VRX932LAP is an active loudspeaker with its own amplifier and DSP, so it does not require an external power amplifier. Before planning an installation, confirm the venue's power supply, signal routing, array configuration and mounting requirements. The array frame and suspension hardware are separate accessories and should be selected to suit the intended installation.
Frequently Asked Questions
Is the JBL VRX932LAP an active or passive speaker?
It is an active, powered loudspeaker with an integrated JBL DrivePack DPC-2 amplifier module and DSP-based signal processing.
What is the power rating of the VRX932LAP?
JBL specifies 875W continuous and 1750W peak power ratings for the integrated amplifier system.
Can multiple VRX932LAP speakers be used together?
Yes. Up to five cabinets may be suspended in a single array, providing a nominal combined vertical coverage angle of up to 75°. Follow JBL's array configuration and suspension instructions.
Does the speaker support pole mounting?
Yes. It includes a dual-angle pole-mount socket designed for compatible 36mm poles or stands.
Can a subwoofer be added to the system?
Yes. JBL identifies the VRX918SP, VRX918S and SRX781S subwoofers as compatible options for systems that need additional low-frequency output.
Does the VRX932LAP include an array frame?
The VRX932LAP has integrated rigging hardware, but the optional VRX-AF array frame is a separate accessory unless explicitly included in the seller's bundle description.
