Overview

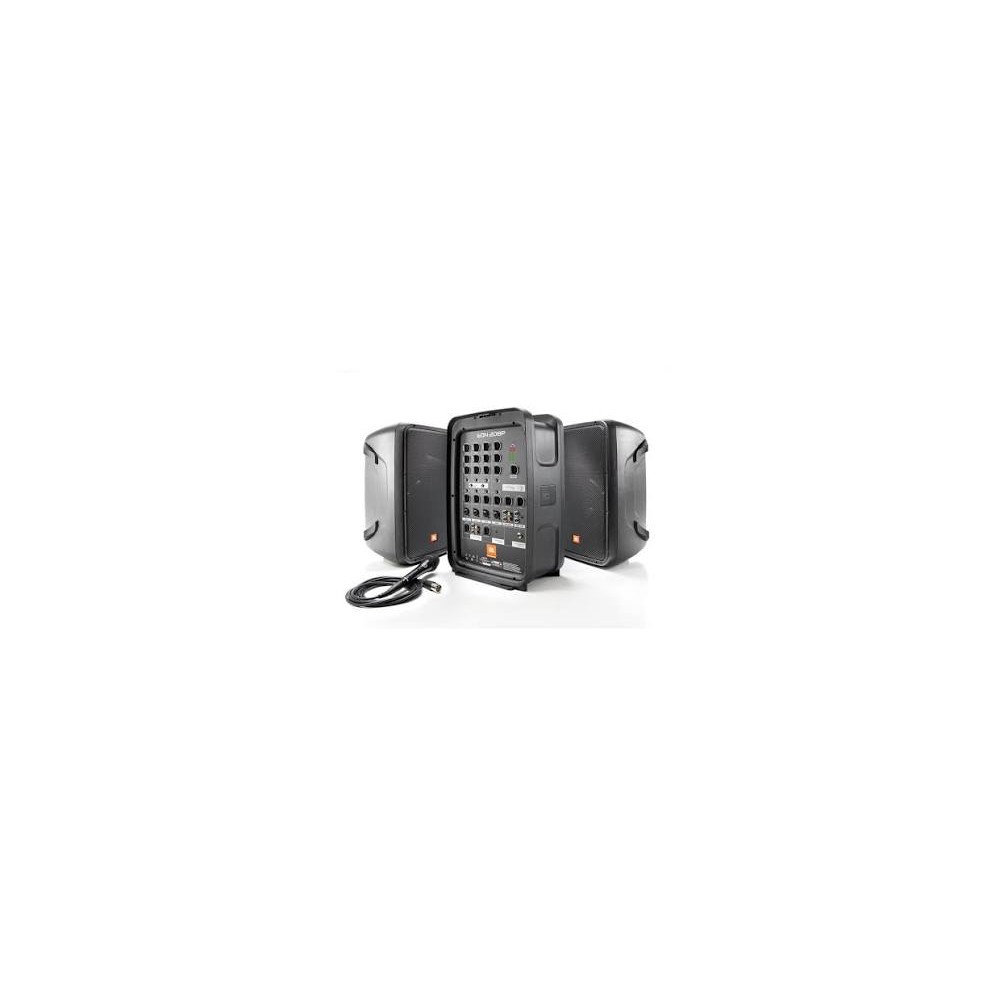

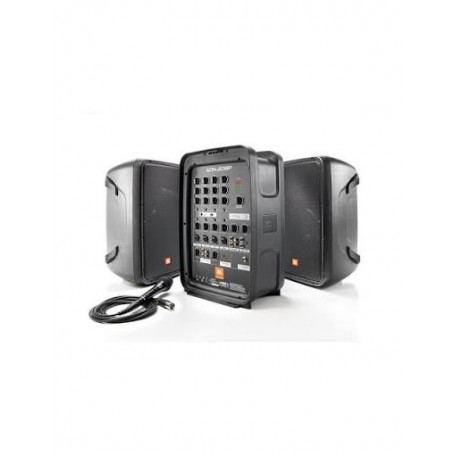

The JBL EON208P is an all-in-one portable PA system combining an 8-channel powered mixer with two 2-way full-range loudspeakers. The system provides 300W of stereo amplifier power and is designed for portable sound reinforcement where multiple microphone, instrument, and line-level sources need to be connected through a compact system.
Mixer and Connectivity
The integrated mixer provides four input channels using XLR/1/4-inch combination connectors, while the remaining channels accommodate stereo line-level sources through 1/4-inch TRS, RCA, and 3.5mm connections. Channels 1 and 2 provide shared phantom-power control, while Channel 3 includes a Hi-Z selection for guitar sources. Bluetooth connectivity provides wireless audio streaming from compatible devices.
Speaker System
The EON208P uses two 8-inch low-frequency drivers and 1-inch neodymium aluminum-dome high-frequency drivers. The speakers use a 2-way passive crossover at 2 kHz and provide a nominal 100° horizontal by 60° vertical coverage pattern. The system is rated for a maximum peak SPL of 121 dB.
Audio Processing and Outputs
Each mixer channel provides treble and bass controls, while the system includes onboard DSP limiting and reverb functionality. Monitor outputs are available through RCA and balanced 1/4-inch TRS connections, with dedicated headphone and subwoofer outputs for monitoring and system expansion.
Key Features
- 300W Class-D stereo amplifier system with two 150W channels.
- Eight-channel mixer supporting microphone, instrument, line-level, RCA, 3.5mm, and Bluetooth sources.
- Two 8-inch low-frequency drivers paired with 1-inch neodymium high-frequency drivers.
- 100° horizontal by 60° vertical nominal coverage pattern with 121 dB peak maximum SPL.
- Detachable speaker and mixer configuration with integrated carrying handle and 36mm pole-mount sockets.
Applications
The EON208P is suited to portable sound reinforcement for small performances, presentations, meetings, events, and other applications requiring a self-contained stereo PA system with multiple audio inputs.
DC Supplies Product Note
The mixer and speakers are designed to operate as an integrated system, with dedicated powered speaker outputs on the mixer. These outputs carry amplifier power and should be connected only to the EON208P speakers using appropriate unshielded speaker cables.
Specifications
| Specification | Details |
|---|
| Brand | JBL |
| Part Number / MPN | EON208P |
| Product Type | Portable PA System |
| System Type | Portable 2-way full-range loudspeakers with powered mixer |
| Amplifier Design | Class D |
| System Power Rating | 300 W (2 x 150 W stereo) |
| Input Channels | 8 |
| LF Driver | 1 x 8-inch (203 mm) woofer per speaker |
| HF Driver | 1 x 1-inch neodymium black aluminum dome tweeter per speaker |
| Maximum SPL | 121 dB peak |
| Coverage Pattern | 100° horizontal x 60° vertical |
| Crossover Frequency | 2 kHz |
| Crossover Type | 2-way passive, 2nd order, 12 dB/octave |
| Enclosure | Polypropylene |
| Bluetooth | Yes |
| Phantom Power | Channels 1 and 2 |
| Hi-Z Input | Channel 3 |
| EQ | Per-channel treble and bass, ±12 dB |
| System Limiter | Onboard DSP limiting |
| Mounting | 36 mm pole socket |
| Dimensions | 30.5 x 22.6 x 15.7 in (775 x 575 x 400 mm) |
| Net Weight | 38.8 lb (17.6 kg) |
Frequently Asked Questions
Does the JBL EON208P have Bluetooth?
Yes. The EON208P supports Bluetooth audio streaming from compatible Bluetooth devices.
How many channels does the EON208P mixer provide?
The integrated powered mixer provides eight channels, with microphone, instrument, and stereo line-level connectivity across the available inputs.
Does the EON208P support phantom power?
Yes. Channels 1 and 2 provide phantom-power control through a shared selection switch.
Can a guitar be connected directly to the EON208P?
Channel 3 provides a Hi-Z selection intended for guitar input.
Can the EON208P be mounted on speaker stands?
Yes. The speaker cabinets include 36 mm pole sockets for compatible speaker-stand mounting.
