Detailed Specifications
Eaton SRCTMTTLBM Telescopic Beam Kit for Hot Cold Aisle Containment System compatible Tripp Lite
Overview :
The Eaton SRCTMTTLBM is a Tripp Lite by Eaton SmartRack telescopic beam kit designed for hot/cold aisle containment systems in data centers and server rooms. The kit provides the structural connection between the system's end frames and supports the roof and riser panels.
The kit includes two heavy-duty telescopic beams that connect opposite frame ends and help pull the rack cabinets together to form a tighter containment structure. The adjustable beam design accommodates aisle configurations containing 8 to 12 racks, with 4 to 6 racks supported per beam.
The SRCTMTTLBM is designed as a component of the modular Tripp Lite SmartRack aisle containment system. Compatible frame, roof, riser and door components are sold separately.
Key Features :
- Telescopic beam kit for hot/cold aisle containment
- Includes two heavy-duty telescopic beams
- Supports aisle containment roof and riser panels
- Connects opposite end frames
- Helps create a tight seal between rack cabinets
- Adjustable configuration accommodates 8 to 12 racks
- Supports 4 to 6 racks per beam
- Keyhole mounting system for frame-end installation
- Includes installation hardware
- Modular design for expandable data center deployments
- Suitable for server rooms and data centers
- 5-year limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | SRCTMTTLBM |
| Product Type | Telescopic Beam Kit |
| Application | Hot/Cold Aisle Containment System |
| System | SmartRack Aisle Containment System |
| Quantity | 2 telescopic beams |
| Rack Capacity | 8 to 12 racks |
| Rack Support | 4 to 6 racks per beam |
| Compatible Racks | Standard 600 mm and wide 750 mm rack configurations |
| Supported Components | SRCTMTFRM frame ends, SRCTMTCVR600/SRCTMTCVR750 roof panels and SRCTMTRXXXXX riser panels |
| Mounting System | Keyhole mounting |
| Housing/Finish | Black |
| Installation | Minor assembly required |

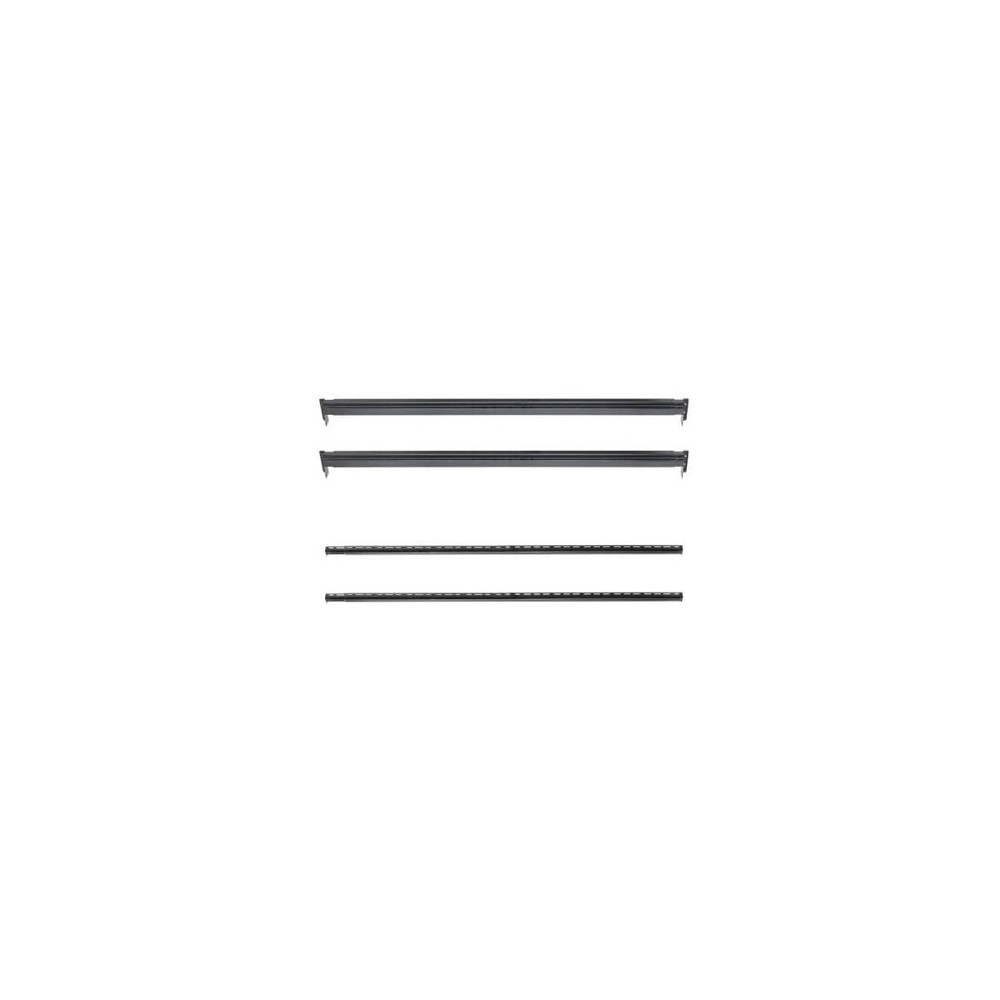

| Package Contents | 2 telescopic beams, 2 stop rails, foam strips and mounting hardware |
| Environmental Compliance | RoHS, REACH |
