Detailed Specifications

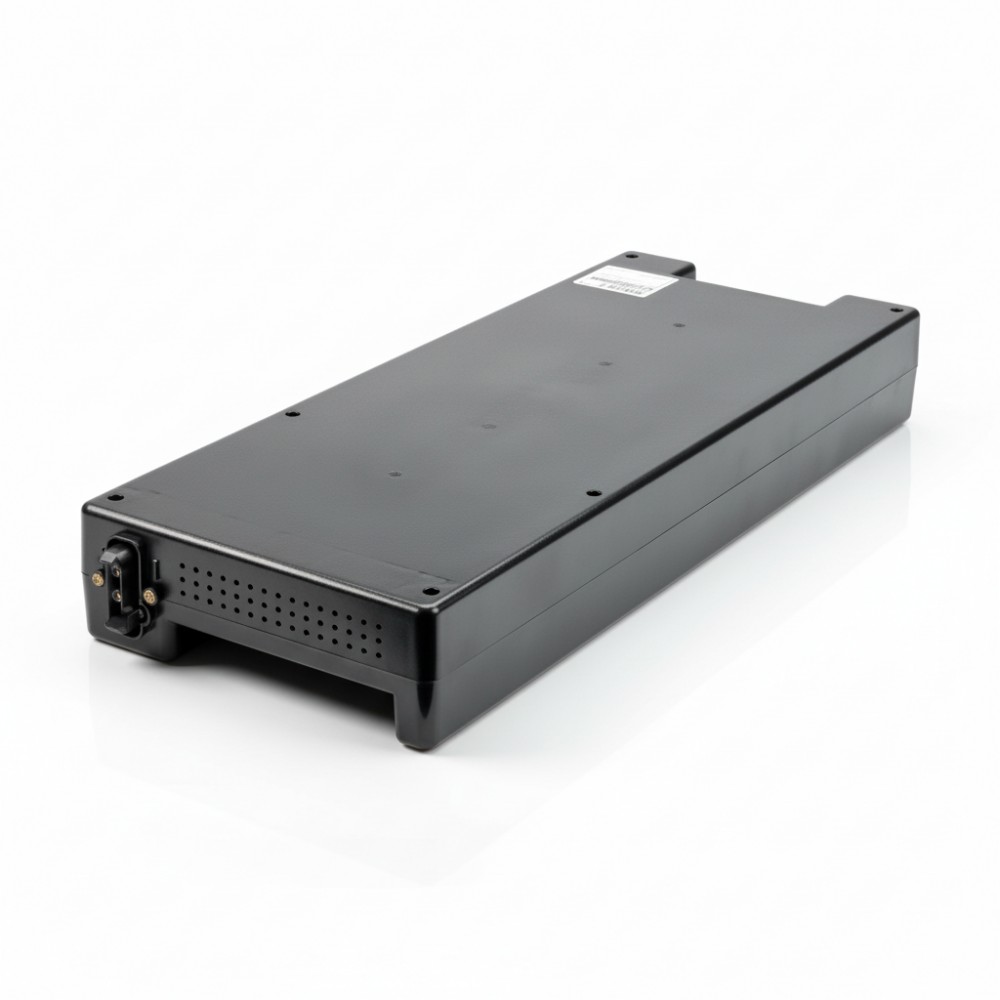

Eaton 9PXMBAT - External Battery Module
Overview :
The Eaton 9PXMBAT is an external battery module designed to provide additional runtime or restoration of runtime for Eaton 9PXM modular UPS systems and external battery modules (EBMs). It uses sealed valve-regulated lead-acid (VRLA) cells arranged as one 60 V unit per module, with two modules required to form a 120 V battery string. The unit is hot-swappable, allowing installation without shutting down connected equipment. It is intended for deployment in data-centres, server racks, or other mission-critical environments where the 9PXM UPS is used, and integrates directly into the 9PXM system via matching backplanes and connections. Its design supports scalable backup runtime expansions and maintenance-free operation in standard rack or tower configurations.
Key Features :
Hot-swappable VRLA battery cartridge for minimal downtime
Pre-wired pack ready for insertion into 9PXM chassis/EBM assembly
Requires two modules per slot to form full 120 V string
Compatible with Eaton 9PXM UPS and EBM systems for runtime scalability
Specification :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | 9PXMBAT |
| Product Type | External battery module |
| Pack Voltage per Module | 60 VDC |
| Installed Voltage per Slot | 120 VDC (two modules) |
| Battery Chemistry | Valve-regulated lead-acid (VRLA) |
| Dimensions (H × W × D) | 21.5 in × 3.0 in × 8.5 in |
| Weight | 33 lbs |
| Input Frequency Range | 50-70 Hz (60 Hz nominal) |
| Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity Range | 5 %-95 % non-condensing |
| Installation Type | Rack / Tower modular |
| Hot Swap Capability | Yes |
| Compliance & Certifications | cULus Listed, FCC, TAA Compliant |
| Warranty Period | 2-year limited warranty |
