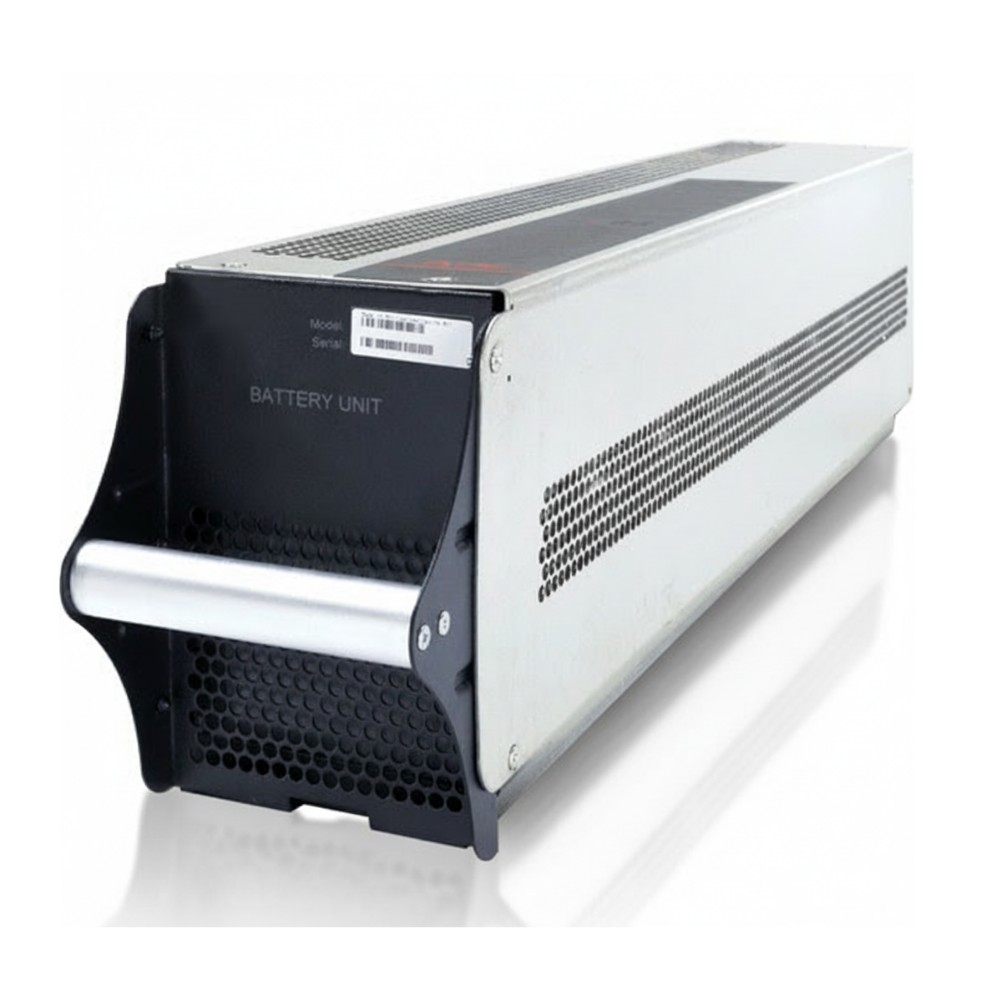

APC SYBTU1-PLP - UPS Battery Module 672 VAh
Overview
The APC SYBTU1-PLP is a replaceable UPS battery module designed for use in APC Symmetra PX series Uninterruptible Power Supplies (UPS). It is deployed by data center engineers, IT infrastructure teams, and power systems technicians to extend runtime or replace existing battery capacity in large-scale UPS installations. These modules are intended for enterprise racks where continuous power protection during utility failure is critical, such as database servers, core networking, or virtualization hosts.
This module uses sealed, maintenance-free lead-acid (SLA) batteries that are spill-proof and hot-swappable, allowing technicians to replace or add modules without shutting down the UPS or protected loads. The unit provides a 672 VAh energy capacity, enabling extended runtime when used in scalable battery banks within the Symmetra PX architecture.
The SYBTU1-PLP integrates into the battery compartment of Symmetra PX UPS systems, adding runtime for both single-phase and three-phase configurations. In typical deployments, these modules work in parallel with additional battery units to meet the runtime requirements dictated by load and site availability objectives. Proper sizing and placement are part of structured UPS design in enterprise rack deployments.
A practical deployment use case is in a 42 U data center rack housing a Symmetra PX UPS, where multiple SYBTU1-PLP modules are installed to achieve a target runtime for critical server clusters or SAN storage. The hot-swappable feature enables battery replacement during maintenance windows with minimal service interruption.
This module should not be used standalone or in UPS systems other than APC Symmetra PX series, as incompatibility with other architectures could lead to improper operation or safety concerns. Battery modules are specifically engineered to match the electrical and control interface requirements of their intended UPS family.
Key Features
• 672 VAh sealed lead-acid UPS battery module
• Hot-swappable design supports online replacement
• Maintenance-free, spill-proof battery chemistry
• Designed for Symmetra PX UPS runtime extension
• Internal form factor aligns with UPS battery bay
Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | SYBTU1-PLP |
| Product Type | UPS Battery Module |
| Battery Capacity | 672 VAh |
| Battery Chemistry | Sealed Lead-Acid (SLA) |
| Maintenance | Maintenance-free, spill-proof |
| Hot-Swappable | Yes |
| Compatibility | APC Symmetra PX UPS series |
| Height | 159 mm (6.26 in) |
| Width | 107 mm (4.21 in) |
| Depth | 700 mm (27.56 in) |
| Net Weight | ~22.7 kg (50.04 lb) |
| Color | Black |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -15-45 °C |
| Compliance | RoHS compliant |
