Detailed Specifications

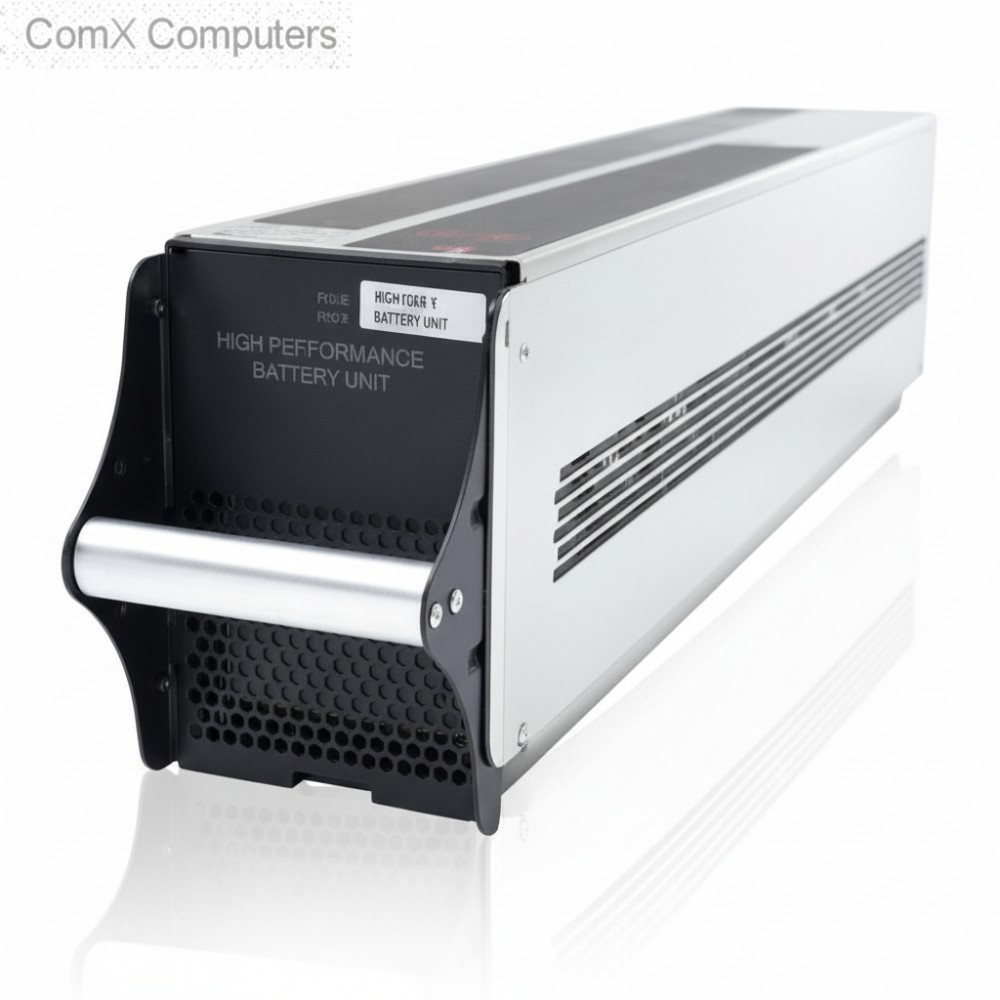

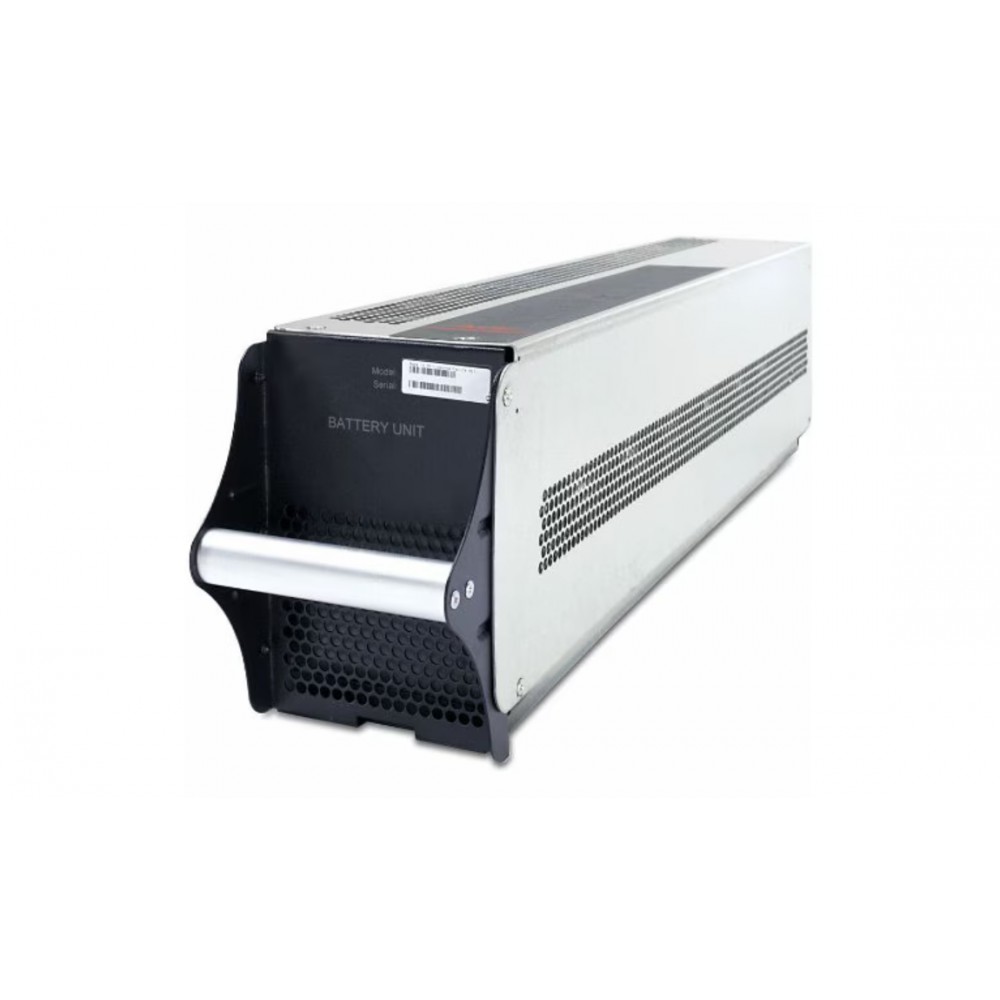

APC SYBTU2-PLP - Battery Unit 9 Ah Lead-Acid
Overview
The APC SYBTU2-PLP is a sealed lead-acid (VRLA) battery module engineered to provide DC backup runtime within APC Symmetra PX uninterruptible power systems. This module is for use by data center power teams, electrical engineers, and infrastructure procurement managers replacing aging batteries or expanding runtime capacity in modular UPS deployments.
It delivers a nominal 9 Ah (9000 mAh) capacity and interfaces directly with host UPS battery trays, supplying stored energy to maintain critical output during mains interruptions.
The design is a plug-in cartridge sized for hot-swap replacement in Symmetra PX frames. Its compact form factor aligns with standard UPS battery slot dimensions, enabling straightforward service without ancillary enclosures.
Installation is tool-free, minimizing Mean Time To Repair (MTTR) and reducing service complexity. Due care for lead-acid battery handling and UPS service protocols is required to avoid hazards or premature aging.
This unit is not a stand-alone UPS; it does not operate independently outside APC Symmetra PX battery systems and should not be connected directly to power sources or loads in isolation.
Key Features
• 9 Ah sealed lead-acid VRLA battery cartridge
• Plug-in module for hot-swappable battery replacement
• Tool-free service reduces downtime
• Form factor conforms to Symmetra PX battery slot
• CE and UL 1778 safety certifications
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SYBTU2-PLP |
| Product Type | Battery Unit |
| Battery Chemistry | Sealed Lead-Acid (VRLA) |
| Battery Capacity | 9 Ah (9000 mAh) |
| Form Factor | Plug-in module |
| Height | 159 mm (6.26 in) |
| Width | 107 mm (4.21 in) |
| Depth | 700 mm (27.56 in) |
| Weight | 25.2 kg (55.56 lb) |
| Certifications | CE, UL 1778 |
| Operating Temp | 0 - 40 °C |
| Relative Humidity | 0 - 95 % non-condensing |
| Operating Altitude | 0 - 1015 m |
| Storage Temp | -15 - 40 °C |
| Storage Humidity | 0 - 95 % |
| Package Contents | Battery module and installation guide |
