Overview

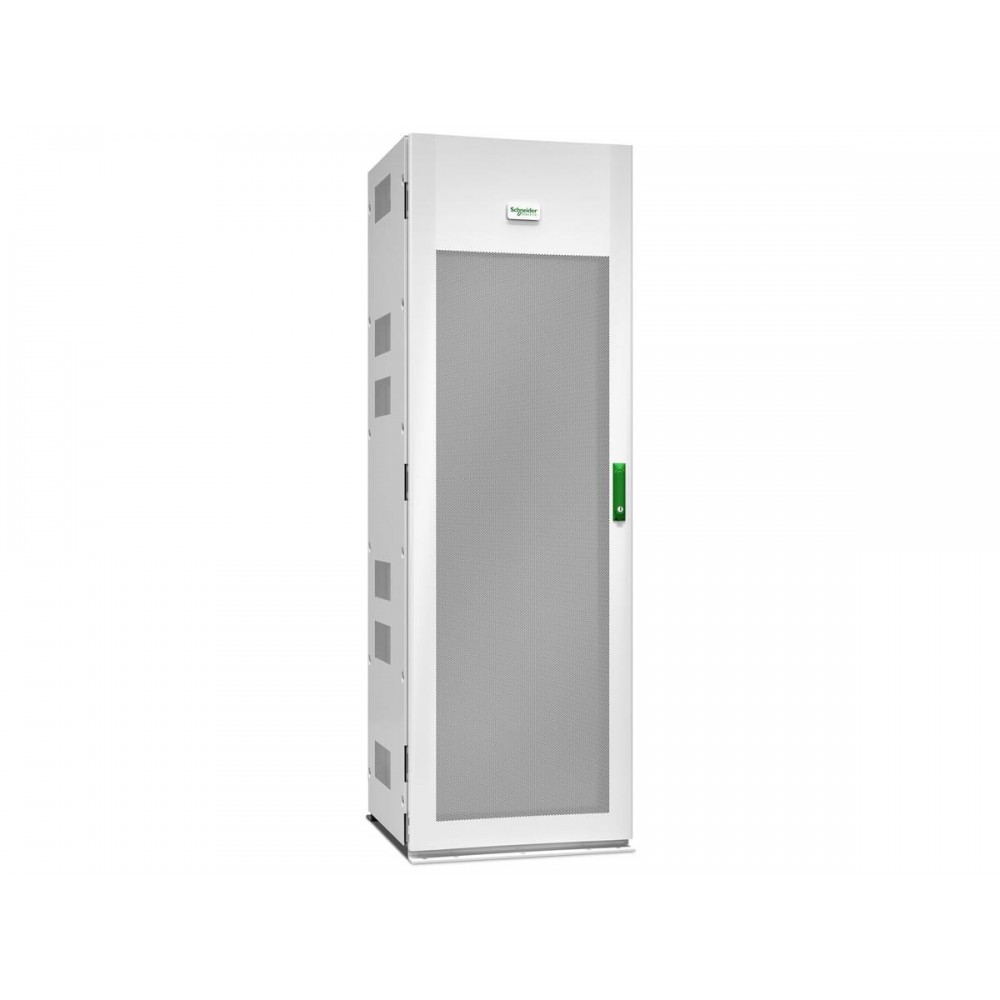

The APC LIBSESMG16UL Galaxy Lithium-Ion Battery Cabinet is an external energy storage solution designed for compatible three-phase Galaxy UPS systems. It includes 16 lithium-ion battery modules rated at 2.04 kWh each, along with a battery management system (BMS), switchgear, power supply and communication interface. The cabinet is designed to support backup power for data centers, industrial facilities and other critical infrastructure.
Key Features
- Galaxy lithium-ion battery cabinet with 16 battery modules.
- Each battery module is rated at 2.04 kWh.
- Integrated battery management system (BMS).
- Includes switchgear, power supply and communication interface.
- Designed for compatible three-phase Galaxy UPS systems.
- External battery cabinet with white, powder-coated finish.
- Supports critical-power backup applications.
Technical Specifications
| Brand | APC by Schneider Electric |
|---|
| Part Number / MPN | LIBSESMG16UL |
|---|
| Product Type | External lithium-ion battery cabinet |
|---|
| Product Line | Galaxy |
|---|
| Battery Chemistry | Lithium-ion |
|---|
| Number of Battery Modules | 16 |
|---|
| Energy per Module | 2.04 kWh |
|---|
| Total Nominal Module Energy | 32.64 kWh |
|---|
| Battery Capacity | 67 Ah |
|---|
| Battery Management | Integrated BMS |
|---|
| Nominal Battery Voltage | 486 VDC |
|---|
| Height | 77.56 in (1970 mm) |
|---|
| Width | 25.59 in (650 mm) |
|---|
| Depth | 23.11 in (587 mm) |
|---|
| Net Weight | 1036.17 lb (470 kg) |
|---|
| Color | White |
|---|
| Compliance | UL, REACH, China RoHS and EU RoHS, according to supplier/manufacturer listings |
|---|
| Warranty | 3-year limited warranty, subject to manufacturer terms |
|---|
Applications
- Backup power for compatible three-phase Galaxy UPS systems.
- Data centers and server facilities.
- Industrial processes and critical infrastructure.
- Facilities requiring external lithium-ion UPS energy storage.
Compatibility and Installation
Confirm the exact Galaxy UPS model and approved battery configuration before ordering. Installation, commissioning and maintenance should follow Schneider Electric's documentation and be carried out by qualified personnel. This is a large, heavy battery cabinet and requires appropriate handling and installation planning.
Frequently Asked Questions
1. What is the APC LIBSESMG16UL?
It is a Galaxy external lithium-ion battery cabinet containing 16 battery modules.
2. What is the energy rating of each module?
Each module is rated at 2.04 kWh.
3. What is the combined nominal module energy?
The 16 modules provide a combined nominal energy rating of 32.64 kWh.
4. Does the cabinet include battery management?
Yes. The cabinet includes a battery management system, switchgear, power supply and communication interface.
5. What are the cabinet dimensions?
The cabinet measures approximately 1970 mm high, 650 mm wide and 587 mm deep.
6. Is it compatible with every Galaxy UPS?
No. Compatibility depends on the specific UPS model and approved battery configuration. Check manufacturer documentation before purchase.
DC Supplies Product Note
DC Supplies recommends confirming UPS compatibility, installation requirements and delivery handling before ordering. Product details and warranty coverage should be verified against the official Schneider Electric documentation for the intended system.
