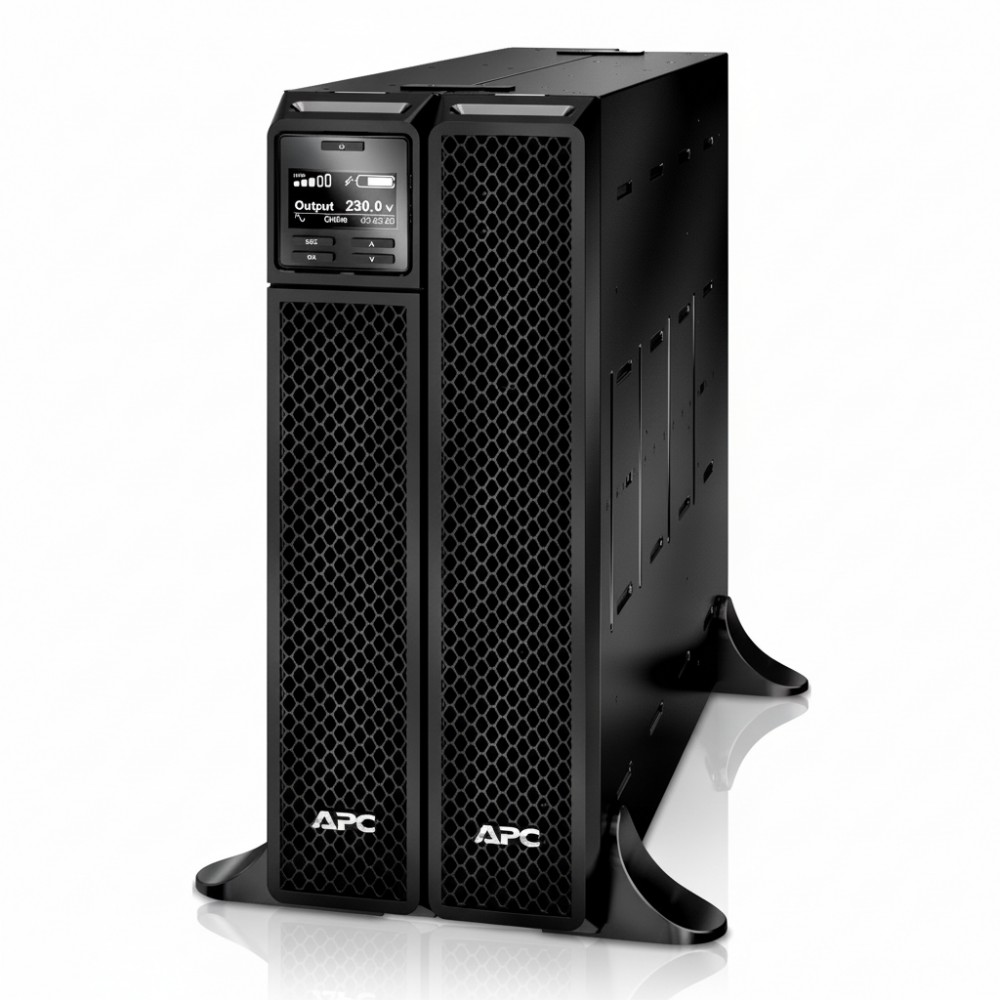

APC SRT3000XLW-IEC - 3000 VA On-Line UPS 208/230 V
Overview
The APC SRT3000XLW-IEC is a 3 kVA (3000 VA / 2700 W) double-conversion on-line uninterruptible power supply (UPS) designed for critical power protection of servers, network equipment, storage, telecom systems, and industrial loads requiring continuous AC power with minimal interruption. It's deployed by IT architects, data center engineers, and facilities teams responsible for uptime and power quality in commercial and enterprise environments.
This UPS leverages double-conversion on-line topology, where incoming AC power is rectified to DC and then inverted back to AC, providing a pure sine wave output even under significant utility disturbances such as sags, surges, frequency variation, and noise. This architecture delivers zero transfer time to battery support when mains power fails.
Rated for input voltages from 208 V to 240 V AC and configurable output voltages within the same range, the SRT3000XLW-IEC accommodates diverse international mains standards. It is engineered to support data center racks, server closets, and distributed IT closets where stable power is required and rack-mount or tower form factors are preferred.
The unit includes multiple IEC output receptacles (6× C13, 2× C19, plus IEC jumpers) to power connected load segments directly, with capacity sufficient for high-density server or network clusters. Intelligent battery management and internal battery charger optimize recharge and longevity while limiting maintenance overhead.
Installation supports both upright tower placement and rack deployment with an optional rack mount kit, enabling flexible integration into existing infrastructure. Built-in SmartSlot expansion enables installation of network management and monitoring cards for centralized UPS control.
Key Features
• 3000 VA / 2700 W double-conversion on-line UPS
• Pure sine wave output with zero transfer time
• 6× IEC C13 + 2× IEC C19 outlets with IEC jumpers
• SmartSlot for optional network management modules
• Tower or 2U rack form factor with removable support feet
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT3000XLW-IEC |
| Product Type | On-Line Double Conversion UPS |
| Rated Power | 3000 VA / 2700 W |
| Topology | Double-Conversion On-Line |
| Output Waveform | Pure sine wave |
| Input Voltage Range | 208 V - 240 V AC |
| Output Voltage Range | 208 V - 240 V AC |
| Frequency Range | 50 / 60 Hz ± tolerance |
| Outlets | 6× IEC 60320 C13, 2× IEC 60320 C19, 2× IEC jumpers |
| Form Factor | Tower (optional 2U rack) |
| Battery Type | Sealed lead-acid, maintenance-free |
| Recharge Time | ~3 hours typical |
| SmartSlot | Yes (network management cards) |
| Dimensions (H×W×D) | ~85 mm × 432 mm × 635 mm |
| Weight | ~69 lb (31.3 kg) |
| Certifications | ENERGY STAR®, CE, others |
