Detailed Specifications

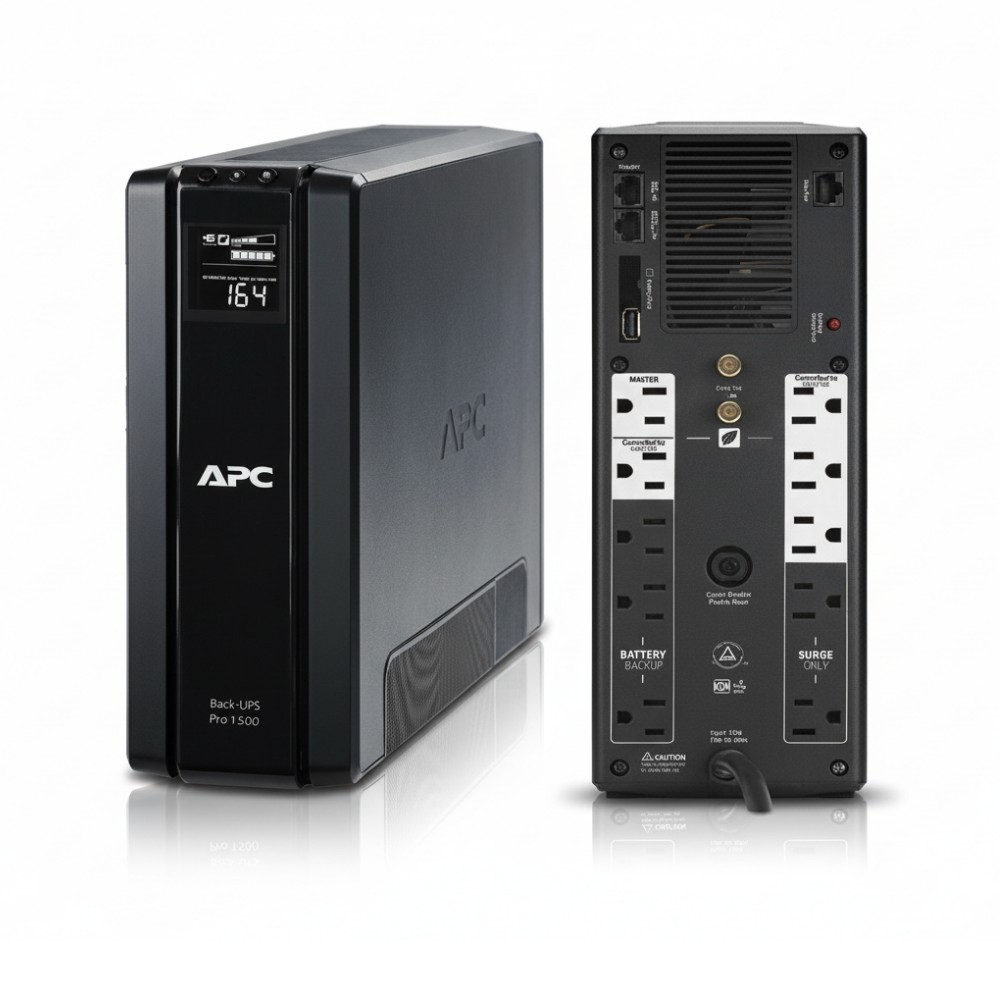

APC BR1500G Back-UPS Pro 1500VA 865W 120V Tower UPS, AVR, LCD, 10 NEMA 5-15R Outlets
LONG DESCRIPTION
The APC BR1500G Back-UPS Pro is a 1500VA/865W line-interactive uninterruptible power supply designed to provide battery backup, surge protection, and voltage regulation for computers, networking equipment, home-office systems, and other connected electronics.
This exact BR1500G model operates at 120V and provides ten NEMA 5-15R outlets. Five outlets provide battery backup and surge protection, while five provide surge protection only. The outlet configuration also includes Master and Controlled outlets for APC's power-saving functionality.
Automatic Voltage Regulation (AVR) helps correct certain utility-voltage fluctuations without relying on battery power for every variation. The UPS uses a stepped approximation to a sine wave when operating from battery power.
An integrated LCD display provides UPS status information, including load and battery indicators. Audible alarms provide notifications about changes in utility power and UPS operating conditions. The unit also provides data-line surge protection for compatible network and communication connections.
The BR1500G uses a user-replaceable lead-acid battery and includes a 6-foot power cord with a NEMA 5-15P input connection. Its tower design measures 11.85 × 4.41 × 15.04 inches and weighs approximately 26.68 lb.
OVERVIEW
The APC BR1500G is a 1500VA/865W line-interactive Back-UPS Pro with AVR, LCD monitoring, ten NEMA 5-15R outlets, and user-replaceable battery.
KEY FEATURES
- Exact APC model: BR1500G
- 1500VA / 865W rated capacity
- Line-interactive UPS topology with Automatic Voltage Regulation
- Ten NEMA 5-15R outlets: five battery-backup/surge-protected and five surge-protection-only
- LCD display with load and battery status indicators
- Stepped approximation to sine wave output during battery operation
- User-replaceable lead-acid battery
- Six-foot power cord with NEMA 5-15P input plug
- Data-line surge protection for compatible network and communication connections
- Tower form factor for freestanding installation
SPECIFICATIONS
| SpecificationValue | |
|---|
| Brand | APC |
| Manufacturer | Schneider Electric |
| MPN | BR1500G |
| Product Type | Uninterruptible Power Supply (UPS) / Battery Backup |
| Model | BR1500G |
| UPS Technology | Line-interactive |
| Form Factor | Tower |
| Rated Capacity | 1500 VA |
| Rated Power | 865 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC on utility power |
| Output Voltage on Battery | 115 V ±8% |
| Input Connection | NEMA 5-15P |
| Power Cord Length | 6 ft |
| Output Connections | 5 × NEMA 5-15R battery backup/surge + 5 × NEMA 5-15R surge-only |
| Output Waveform | Stepped approximation to sine wave |
| Automatic Voltage Regulation | Yes |
| Display | LCD |
| Battery Type | Lead-acid |
| Battery Replacement | User replaceable |
| Replacement Battery Part Number | Not Verified |
| Data-Line Protection | Network protection up to 1000 Base-T; coaxial protection |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Surge Protection | All outlets |
| Product Dimensions | 11.85 × 4.41 × 15.04 in (H × W × D) |
| Product Weight | 26.68 lb |
| Shipping Dimensions | Not Verified |
| Shipping Weight | Not Verified |
| Rack Mountable | No |
| Warranty | 3 years |
