Overview

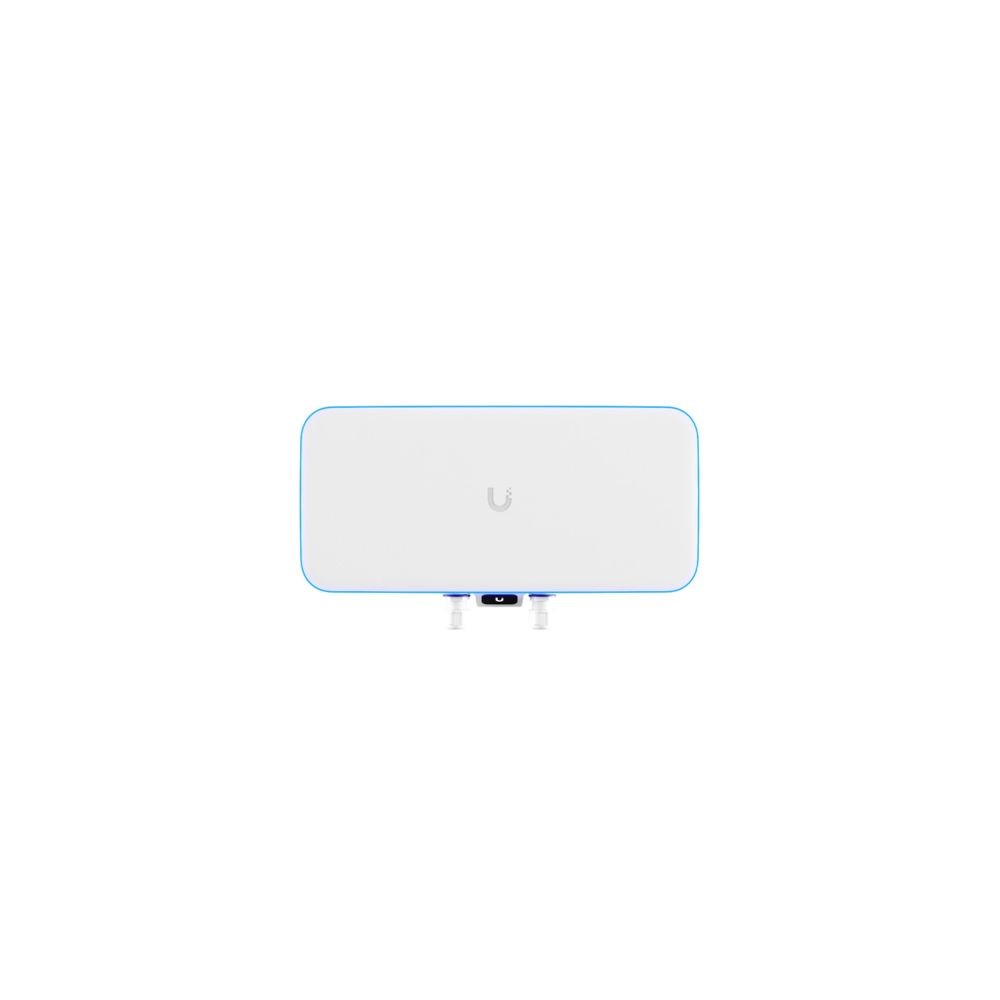

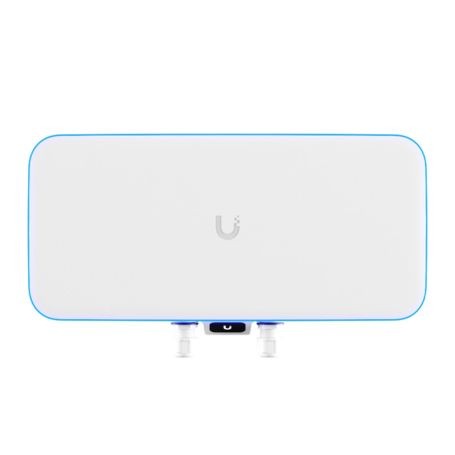

The Ubiquiti UWB-XG UniFi WiFi BaseStation XG is a high-density 5 GHz wireless access point designed for large venues and demanding wireless deployments. It uses a tri-radio architecture with 12 spatial streams and an integrated dual-mode antenna array that can be configured for different coverage requirements.
Wireless Architecture
The UWB-XG uses three 4x4 MIMO 5 GHz radios, providing a total of 12 spatial streams. Each radio supports up to 1.7 Gbps maximum data rate at 80 MHz channel bandwidth under the manufacturer's specified conditions.
The integrated antenna system provides selectable coverage characteristics. The small-cell configuration uses 15 dBi directional gain with a 50° x 50° beamwidth, while the large-cell configuration uses 10 dBi directional gain with a 90° x 90° beamwidth.
Network Connectivity
The BaseStation XG provides two Ethernet interfaces: one 10/100/1000 Mbps RJ45 port and one 1/10 Gbps Ethernet port. The 10 GbE interface can be used for high-bandwidth network connectivity, while the 1 GbE interface can provide bridging functionality.
Power and Installation
The UWB-XG supports 802.3bt PoE and has a maximum power consumption of 31W. Ubiquiti specifies a supported voltage range of 44–57V DC. The device supports VESA-compatible mounting as well as pole and wall installation using the supplied mounting brackets.
Outdoor Construction
The BaseStation XG is designed for outdoor deployment and has an IP67 weatherproofing rating. Its enclosure combines polycarbonate and aluminum alloy construction. The specified ambient operating temperature is -40°C to 70°C (-40°F to 158°F), with 5% to 95% non-condensing operating humidity.
Key Features
- Tri-radio 5 GHz WiFi 5 architecture with 12 spatial streams
- Three 4x4 MIMO radios with up to 1.7 Gbps maximum data rate per radio at 80 MHz
- Selectable dual-mode antenna with 15 dBi small-cell or 10 dBi large-cell gain
- 1/10 GbE and Gigabit Ethernet interfaces
- 802.3bt PoE power with IP67 outdoor weatherproofing
Applications
The UWB-XG is intended for high-density wireless deployments where substantial client capacity and directional coverage are required. Its selectable antenna configuration makes it suitable for large-venue installations where the desired coverage pattern may vary between a more focused small-cell deployment and a wider large-cell configuration.
DC Supplies Product Note
The UWB-XG has two Ethernet interfaces with different roles and speeds. The 1/10 GbE interface is the appropriate high-bandwidth interface for LAN connectivity, while the 1 GbE interface is available for bridging and can also be used for supported PoE configurations. When using the 10 GbE port, Ubiquiti specifies enabling flow control on the upstream switch port for maximum performance.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UWB-XG |
| Product Type | WiFi BaseStation / Access Point |
| Product Family | UniFi |
| WiFi Standard | WiFi 5 |
| Wireless Standards | 802.11a/n/ac/ac-wave2 |
| Operating Frequency | 5 GHz |
| Spatial Streams | 12 |
| MIMO | 3 x 4x4 MIMO radios |
| Maximum Data Rate | 1.7 Gbps per radio at 80 MHz |
| Maximum TX Power | 25 dBm |
| Maximum BSSIDs | 8 per radio |
| Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80 MHz |
| Antenna | Integrated dual-mode antenna array |
| Small-Cell Antenna Gain | 15 dBi |
| Large-Cell Antenna Gain | 10 dBi |
| Small-Cell Beamwidth | 50° x 50° |
| Large-Cell Beamwidth | 90° x 90° |
| Networking Interface | 1 x 10/100/1000 Mbps RJ45; 1 x 1/10 Gbps Ethernet |
| Power Method | 802.3bt PoE |
| Supported Voltage Range | 44–57V DC |
| Maximum Power Consumption | 31W |
| Coverage Area | 465 m² (5,000 ft²) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Weatherproofing | IP67 |
| Mounting | VESA-compatible, pole/wall |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713 in) |
| Weight | 3.2 kg (7.055 lb), without mount |
FAQs
What wireless standard does the UWB-XG support?
The UWB-XG is a WiFi 5 access point supporting 802.11a/n/ac/ac-wave2 wireless standards.
How many spatial streams does the UWB-XG provide?
The BaseStation XG provides 12 spatial streams through three 4x4 MIMO 5 GHz radios.
What Ethernet ports are available?
The UWB-XG provides one 10/100/1000 Mbps RJ45 Ethernet port and one 1/10 Gbps Ethernet port.
What antenna is built into the UWB-XG?
The unit has an integrated dual-mode antenna array. It can operate with a 15 dBi small-cell configuration or a 10 dBi large-cell configuration, with corresponding beamwidths specified by Ubiquiti.
