Overview

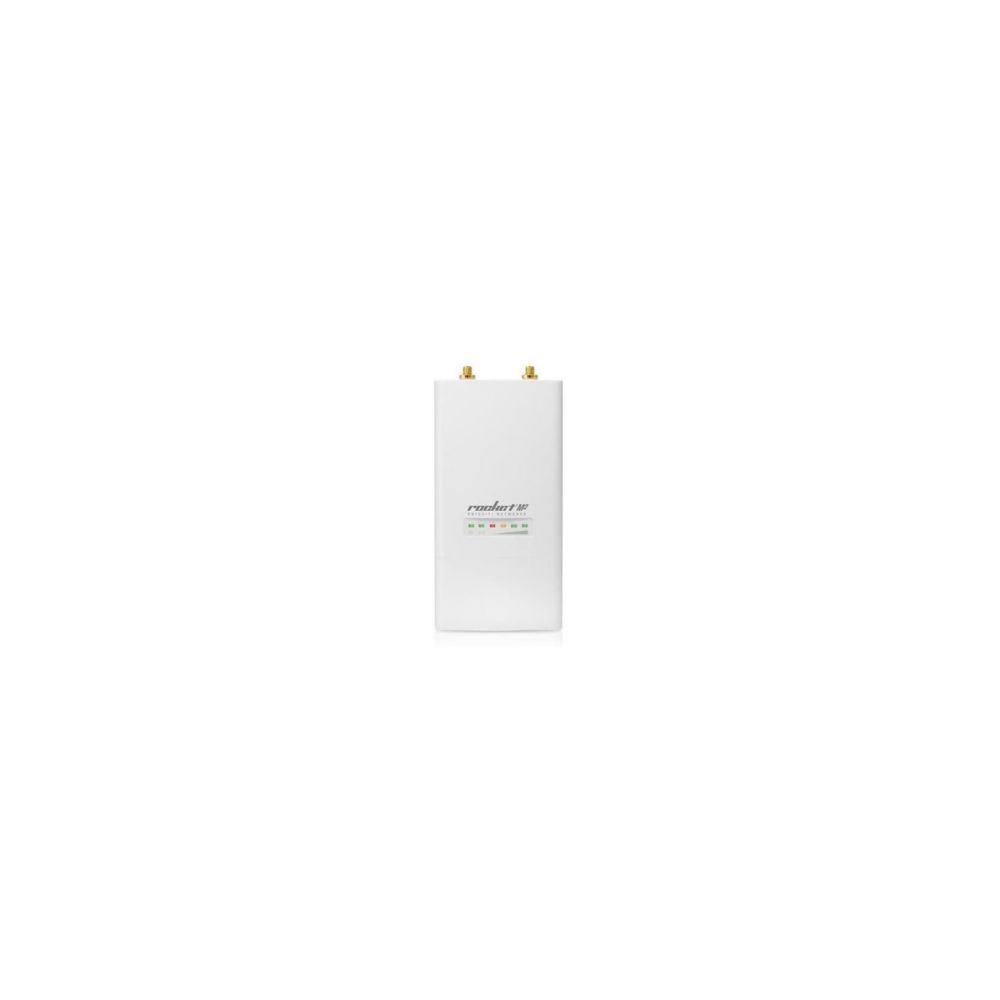

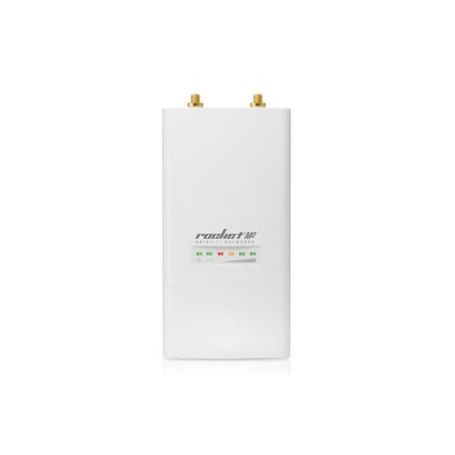

The Ubiquiti ROCKETM2US is a 2.4 GHz 2x2 MIMO airMAX BaseStation designed for outdoor point-to-point (PtP) and point-to-multipoint (PtMP) wireless network deployments. The US variant is the RocketM2 platform specified for operation in the applicable US regulatory configuration.
The RocketM2 uses an external-antenna architecture, allowing the radio to be paired with a compatible Ubiquiti airMAX antenna for the required wireless coverage or link configuration. It combines 802.11n wireless technology with Ubiquiti airMAX TDMA technology for outdoor wireless networking.
Wireless Connectivity
The RocketM2 operates in the 2.4 GHz band and uses 2x2 MIMO radio technology. It supports wireless throughput of up to 150+ Mbps real TCP/IP throughput under suitable operating conditions. The radio provides configurable channel bandwidths and frequency selection within the supported regulatory range.
Ubiquiti airMAX TDMA technology assigns transmission opportunities to connected clients through scheduled time slots. This architecture is intended for outdoor PtMP deployments as well as dedicated PtP wireless bridges.
Antenna Interface
The RocketM2 is designed to work with compatible external airMAX antennas rather than relying on an integrated antenna. Its two RF connectors provide the connections required for the 2x2 MIMO radio architecture.
Network and Power
A single 10/100 Mbps Ethernet port provides the wired network interface. The Ethernet connection also supplies power to the radio through passive Power over Ethernet. The specified power method uses passive PoE rather than IEEE 802.3af or 802.3at active PoE.
Outdoor Deployment
The RocketM2 enclosure is designed for outdoor use and uses UV-stabilized plastic construction. The specified operating temperature range is -30°C to 75°C (-22°F to 167°F), supporting deployment across a wide range of outdoor environments.
Key Features
- 2.4 GHz 2x2 MIMO airMAX BaseStation architecture
- Up to 150+ Mbps real TCP/IP throughput under suitable conditions
- Designed for airMAX point-to-point and point-to-multipoint deployments
- External antenna design for integration with compatible airMAX antennas
- 10/100 Mbps Ethernet with passive PoE power
Applications
The ROCKETM2US can be used as a wireless base station for outdoor airMAX networks, including point-to-multipoint access networks and point-to-point wireless bridges. Its external antenna architecture allows the installer to select an appropriate compatible antenna for the intended link or coverage pattern.
DC Supplies Product Note
The RocketM2 is a radio/base-station unit and does not provide an integrated antenna. Antenna selection therefore needs to be made separately according to the required PtP or PtMP deployment. The unit also requires compatible passive PoE power, so an appropriate passive PoE supply should be used rather than assuming compatibility with standard 802.3af/802.3at PoE switches.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | ROCKETM2US |
| Manufacturer Model | ROCKETM2(US) |
| Product Type | Outdoor Wireless BaseStation |
| Product Family | RocketM |
| Product Series | airMAX |
| Wireless Standard | IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Operating Frequency | 2402-2462 MHz |
| MIMO Technology | 2x2 MIMO |
| Wireless Throughput | Up to 150+ Mbps real TCP/IP |
| Ethernet Interface | 1 x 10/100 Mbps RJ45 |
| RF Antenna Interface | 2 x external RF connectors |
| Power Method | Passive Power over Ethernet |
| Maximum Power Consumption | 6.5W |
| Processor | Atheros MIPS 24Kc, 400 MHz |
| Memory | 128 MB SDRAM, 8 MB Flash |
| Enclosure Material | UV-stabilized plastic |
| Operating Temperature | -30°C to 75°C (-22°F to 167°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 160 x 80 x 30 mm |
| Weight | 500 g (1.1 lb) |
| Deployment | Outdoor |
FAQs
What frequency does the ROCKETM2US operate on?
The US RocketM2 operates in the 2.4 GHz band, with the documented operating frequency range of 2402-2462 MHz.
Can the RocketM2 be used for point-to-point links?
Yes. The RocketM2 is designed for both point-to-point bridging and point-to-multipoint airMAX applications.
Does the RocketM2 include an integrated antenna?
No. The RocketM2 uses an external-antenna design and is intended to be paired with a compatible airMAX antenna.
What Ethernet speed does the RocketM2 support?
The unit provides one 10/100 Mbps RJ45 Ethernet interface.
Does the RocketM2 use passive PoE?
Yes. The RocketM2 uses passive Power over Ethernet. It should be powered with a compatible passive PoE supply rather than assuming compatibility with standard 802.3af or 802.3at PoE.
Is the ROCKETM2US an outdoor product?
Yes. The RocketM2 enclosure is designed for outdoor deployment and is specified for an operating temperature range of -30°C to 75°C (-22°F to 167°F).
