Overview

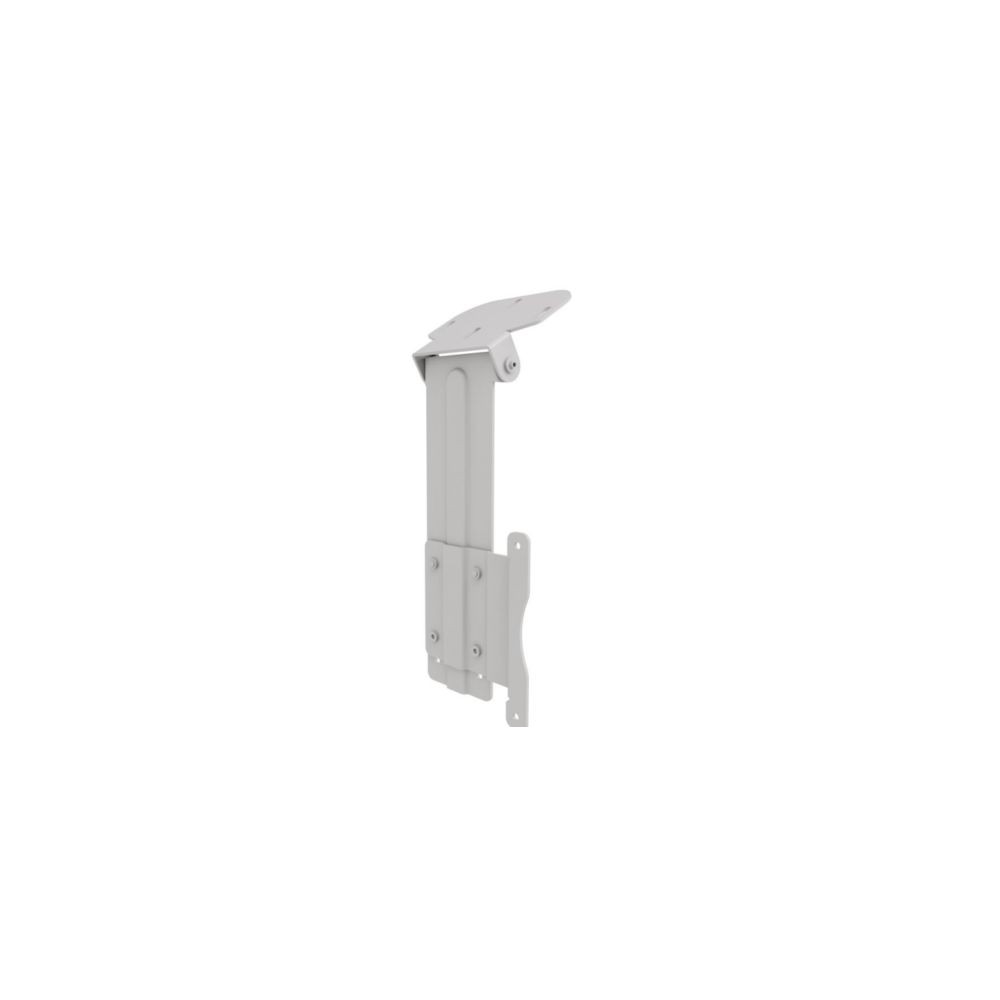

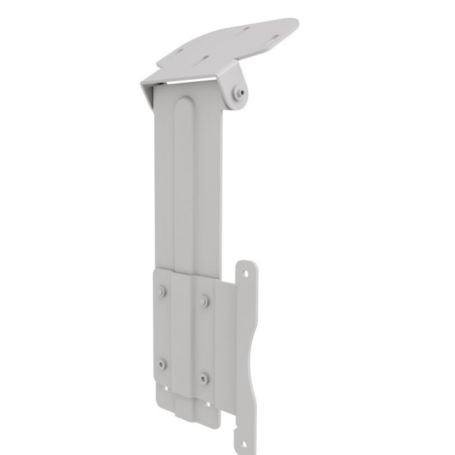

The Ergotron 98-649-251 Top-Mount Scanner Holder is a VESA-mounted accessory designed to position a compatible wireless barcode scanner above a single monitor. It supports scanning workflows in healthcare environments, allowing caregivers to access a scanner while keeping their hands available for other tasks.
The holder attaches to a compatible monitor mounting assembly and positions the scanner above the display. Its adjustable design accommodates supported scanner cradles and allows the scanner interface to tilt for convenient access during routine scanning operations.
Scanner Positioning and Adjustment
The holder features an adjustable bracket that positions the scanner above the monitor. The scanner interface supports up to 45 degrees of tilt, allowing its angle to be adjusted to suit the installation and scanning workflow.
The mounting arrangement is designed to offset the holder toward the center of the display, helping avoid interference with the monitor mount's lift-pivot operation.
Scanner Compatibility
Ergotron identifies several compatible wireless barcode scanners for this holder:
- Honeywell Xenon 1902H
- Honeywell Xenon XP 1952H
- Zebra DS8178 Wireless Scanner, using the presentation-style cradle only
- Zebra CS6080 Cordless Companion Scanner
Compatibility depends on the scanner model, cradle configuration, and monitor mounting arrangement. Verify the exact scanner and cradle before ordering.
Key Features
- VESA mounting: Attaches using a 100 × 100 mm VESA mounting pattern.
- Adjustable scanner angle: Provides up to 45 degrees of tilt for positioning the scanner interface.
- Single-monitor configuration: Designed for compatible monitor mounts supporting displays between 19 and 27 inches.
- Supported scanner models: Compatible with specified Honeywell and Zebra wireless barcode scanners.
- Mounting hardware included: Supplied with an adjustable bracket and attachment hardware.
Applications
This accessory is intended for healthcare workstation environments where wireless barcode scanners are used to scan medication labels, patient-related barcodes, or other workflow documents. Positioning the scanner above the monitor can help keep the scanning device accessible without requiring it to occupy the main work surface.
Compatibility and Installation
The Ergotron 98-649-251 is designed for compatible single-monitor mounting configurations. It supports a 100 × 100 mm VESA mounting pattern and is listed for monitor mounts holding displays measuring 19 to 27 inches.
This accessory is not compatible with dual-monitor configurations. Before installation, verify the monitor mount, VESA interface, scanner model, cradle type, and the combined load on the mounting system.
DC Supplies Product Note
Confirm the scanner's cradle configuration before purchasing. For the Zebra DS8178, compatibility is specified for the presentation-style cradle only. Also account for the holder and scanner when checking the monitor mount's total load capacity.
Specifications
| Brand | Ergotron |
|---|---|
| Part Number / MPN | 98-649-251 |
| Product Type | Top-mount scanner holder |
| Product Name | Top-Mount Scanner Holder, VESA Attach |
| Product Category | Monitor-mounted scanner accessory |
| Mounting Standard | VESA FDMI MIS-D, 100, C |
| VESA Mounting Pattern | 100 × 100 mm |
| Compatible Monitor Size | 19–27 inches, subject to mounting compatibility |
| Supported Configuration | Single-monitor mount |
| Dual-Monitor Compatibility | Not compatible |
| Maximum Load Capacity | 1.5 lb (0.7 kg) |
| Maximum Scanner Interface Tilt | 45 degrees |
| Compatible Scanner Models | Honeywell Xenon 1902H; Honeywell Xenon XP 1952H; Zebra DS8178 with presentation-style cradle; Zebra CS6080 Cordless Companion Scanner |
| Color | White |
| Product Dimensions | 14.6 × 12.6 × 9.6 inches (37 × 32 × 24 cm) |
| Product Weight | Approximately 1.1 lb (0.5 kg) |
| Included Components | Adjustable bracket and attachment hardware |
| UPC / GTIN | 698833090109 |
| Manufacturer Warranty | Five years, subject to manufacturer terms and exclusions |
Frequently Asked Questions
Which barcode scanners are compatible with this holder?
Listed compatible models include the Honeywell Xenon 1902H, Honeywell Xenon XP 1952H, Zebra DS8178 with its presentation-style cradle, and Zebra CS6080 Cordless Companion Scanner. Confirm the scanner and cradle configuration before ordering.
Can this holder be used with a dual-monitor setup?
No. The 98-649-251 is specified for compatible single-monitor mounting configurations and is not compatible with dual-monitor configurations.
Which VESA mounting pattern does it use?
The holder uses a 100 × 100 mm VESA mounting pattern. Confirm that the intended monitor mount provides the required interface.
Can the scanner angle be adjusted?
Yes. The scanner interface supports up to 45 degrees of tilt to accommodate the installation and scanning position.
Does the holder include a barcode scanner?
The listed package contents include the adjustable bracket and attachment hardware. A barcode scanner and its cradle are not listed as included components and should be sourced separately unless explicitly stated otherwise by the seller.
What should be checked before installation?
Verify the monitor mount's VESA pattern, supported display size, single-monitor configuration, scanner and cradle compatibility, and remaining load capacity. Ensure that the complete assembly stays within the mounting system's specified limits.
