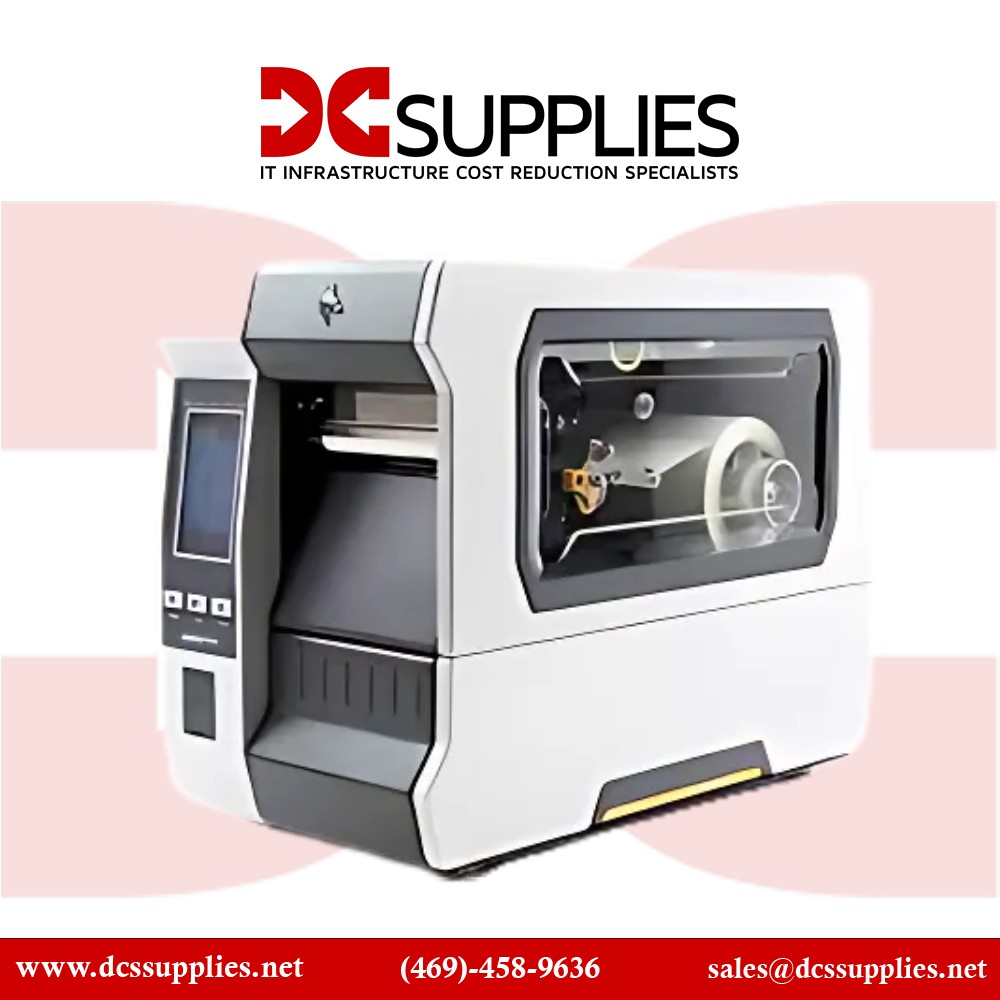

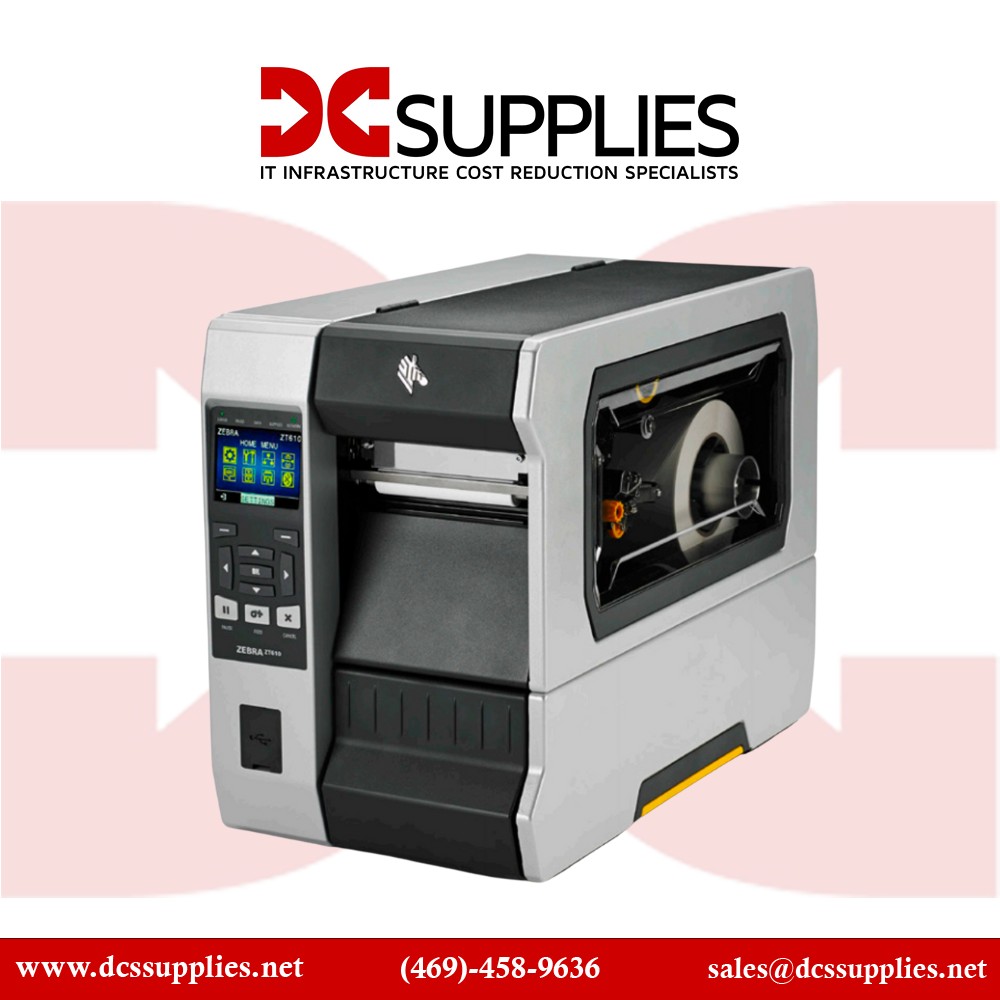

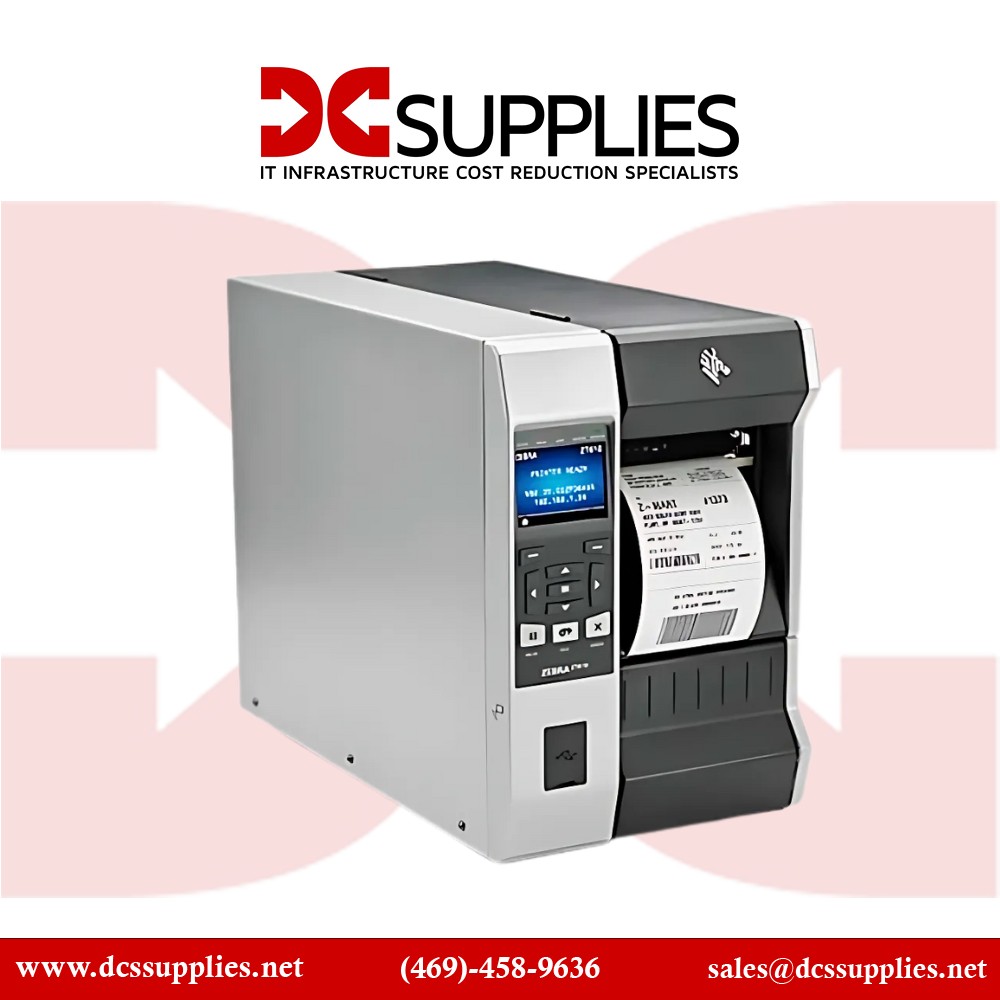

Zebra ZT610 300 dpi Industrial Barcode Printer
The Zebra ZT61043-T010100Z is a high-performance industrial barcode label printer designed for demanding labeling operations in manufacturing, warehousing, logistics, distribution, and inventory management. It supports both direct thermal and thermal transfer printing, delivering 300 dpi resolution for clear text, barcodes, and detailed label graphics.
With a maximum print width of 4.09 inches, a rugged industrial design, an intuitive color touchscreen, and multiple wired connectivity options, the ZT610 provides reliable integration into professional labeling workflows.
Key Features
- 300 dpi Print Resolution: Produces clear text, barcodes, and detailed label graphics.
- Dual Printing Technology: Supports both direct thermal and thermal transfer printing.
- Industrial Print Performance: Prints at speeds up to 12 inches per second at 300 dpi.
- Multiple Connectivity Options: Includes USB 2.0, RS-232 serial, Gigabit Ethernet, and Bluetooth.
- Rugged Construction: Built for demanding industrial labeling environments, with an intuitive color touchscreen for printer operation.
Product Overview
The Zebra ZT610 combines precise printing with flexible media handling and enterprise connectivity. Its 300 dpi printhead supports detailed barcode and label output, while the printer accommodates a range of label materials, including continuous, die-cut, notched, hole, and black-mark media.
With 1 GB of SDRAM and 2 GB of onboard flash memory, the printer supports stored label formats, graphics, and fonts. Zebra's ZPL and ZPL II programming languages enable integration with compatible labeling applications and business systems.
Applications
- Manufacturing and work-in-progress labeling
- Warehouse inventory and asset tracking
- Shipping, receiving, and distribution labels
- Product identification and compliance labeling
- Supply chain and logistics operations
Technical Specifications
| Brand | Zebra Technologies |
| Part Number / MPN | ZT61043-T010100Z |
| Product Type | Industrial Barcode Label Printer |
| Printer Series | Zebra ZT610 / ZT600 Series |
| Print Technology | Direct Thermal and Thermal Transfer |
| Print Resolution | 300 dpi (12 dots/mm) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Maximum Print Speed | 12 inches per second (305 mm/s) at 300 dpi |
| Display | 4.3-inch color touchscreen |
| Memory | 1 GB SDRAM and 2 GB onboard flash |
| Connectivity | USB 2.0, RS-232 serial, Gigabit Ethernet, Bluetooth 4.1 |
| USB Host Ports | 2 front-mounted ports |
| Printer Languages | ZPL, ZPL II, XML-enabled printing |
| Maximum Media Width | 4.5 inches (114 mm) |
| Maximum Media Roll Diameter | 8 inches (203 mm) |
| Media Core Size | 3 inches (76 mm) |
| Power Supply | 250 W rated, 90–265 VAC, 47–63 Hz |
| Dimensions (D × W × H) | 19.88 × 10.56 × 15.58 inches (505 × 268.2 × 395.7 mm) |
| Weight | 50 lb (22.7 kg) |
Compatibility and Installation
The ZT610 supports integration with compatible computers, enterprise applications, and labeling systems through its wired and Bluetooth interfaces. It supports ZPL and ZPL II printer languages for label formatting and printing workflows.
Media selection, ribbon requirements, interface configuration, and software settings depend on the intended application. Thermal transfer printing requires compatible thermal transfer ribbon, while direct thermal printing uses compatible direct thermal media.
Frequently Asked Questions
1. What type of printer is the Zebra ZT610?
It is an industrial barcode and label printer designed for commercial and industrial labeling applications.
2. What is the print resolution of this model?
The ZT61043-T010100Z is the 300 dpi configuration, suitable for detailed text, barcodes, and label graphics.
3. Does it support direct thermal and thermal transfer printing?
Yes. The printer supports both methods, allowing users to select compatible label media and ribbon based on their requirements.
4. What connectivity options are available?
Standard interfaces include USB 2.0, RS-232 serial, Gigabit Ethernet, and Bluetooth 4.1, along with two front-mounted USB host ports.
5. What is the maximum label print width?
The maximum print width is 4.09 inches (104 mm). The supported media width is up to 4.5 inches (114 mm).
DC Supplies Product Note
Confirm the exact part number ZT61043-T010100Z when ordering. This listing describes the 300 dpi ZT610 configuration; optional accessories and media-handling upgrades may vary by configuration. Check application requirements and media compatibility before purchase.
