Detailed Specifications

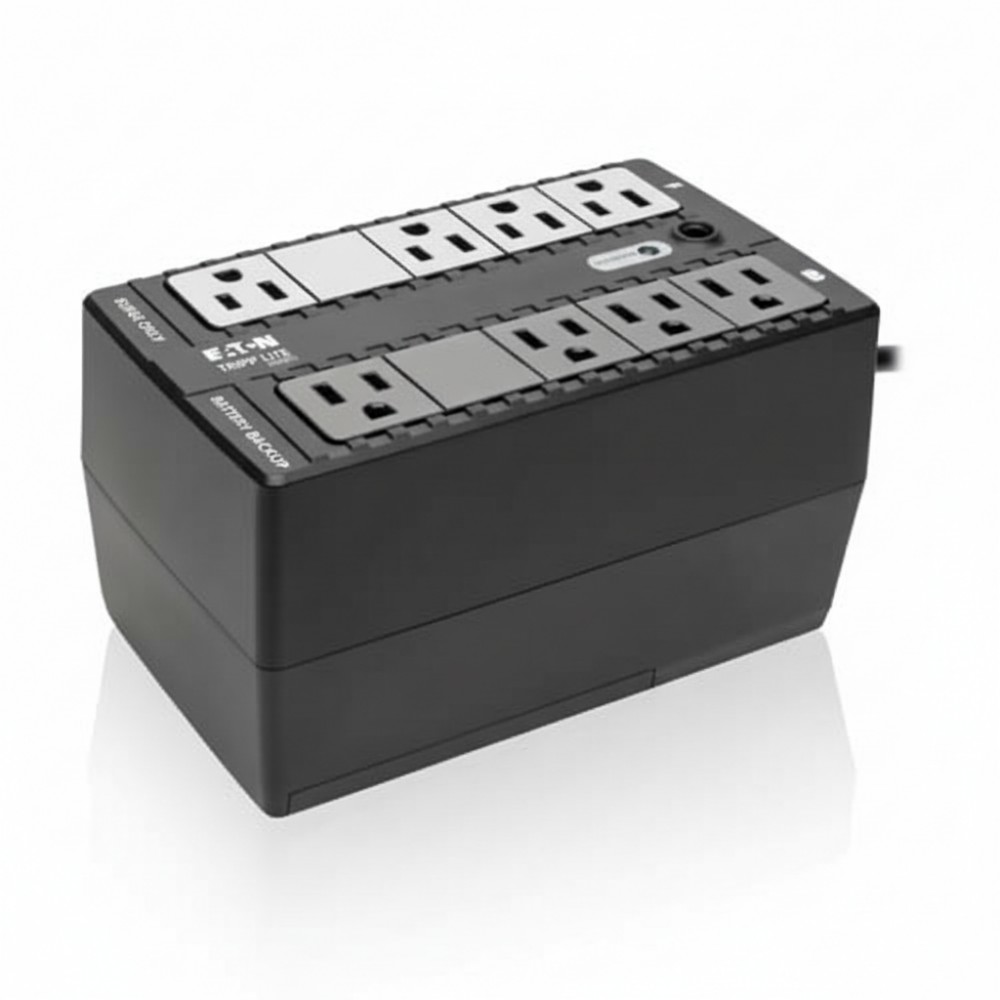

Eaton Tripp Lite BC450 - 450 VA Standby UPS
Overview
The Eaton Tripp Lite BC450 is a standby uninterruptible power supply (UPS) providing basic battery backup and surge protection for low-power equipment in 120 V AC power environments. It is typically deployed by IT support techs and small office administrators to preserve uptime long enough to save data and shut down connected devices during brief outages or mains faults. Its standby topology switches to battery only when mains power fails, offering simple continuity for non-critical loads.
This UPS is rated 450 VA / 255 W and uses a valve-regulated lead-acid (VRLA) battery to deliver temporary backup power. It's designed to protect equipment such as workstations, network switches, POS systems, and consumer-grade servers against brownouts, blackouts, surges, and line noise. The internal battery allows orderly shutdown during interruptions, but it is not intended to sustain extended outages.
The BC450 is a compact desktop/ wall-mountable form factor suitable for placement under desks, on shelves, or attached to walls near protected devices. Its eight NEMA 5-15R outlets include a mix of battery-backed and surge-only receptacles, enabling simple load distribution in small IT closets or branch offices.
Communication or advanced management features are not supported on this model, which makes it appropriate for basic backup support rather than integrations with server shutdown automation or network monitoring platforms.
In real deployments, the BC450 provides just enough hold-up to complete saves and shutdown scripts × typical runtime at half load (~127 W) is ~7 min and ~1.5 min at full rated load. It should not be used as a primary power source or where high-availability or long runtimes are needed; more robust line-interactive or online UPS systems with external battery options are required for those applications.
Key Features
- 450 VA / 255 W standby UPS with battery backup
- (8) NEMA 5-15R outlets: battery-backed + surge-only
- Silent alarm on battery mode; overload/low battery alerts
- Cold-start capable for battery-only operation
- Desktop/wall-mount form factor for small IT spaces
Specifications
| Specification | Detail |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | BC450 |
| Product Type | Standby UPS |
| VA Rating | 450 VA |
| Wattage Capacity | 255 W |
| Output Topology | Standby |
| Nominal Output Voltage | 110/115/120 V AC |
| Input Connection | NEMA 5-15P |
| Output Receptacles | (8) NEMA 5-15R (battery + surge) |
| Battery Type | Sealed lead-acid (VRLA) |
| Runtime (Half Load) | ~6.9 min |
| Runtime (Full Load) | ~1.5 min |
| Transfer Time | Typical ~6 ms |
| Waveform (Battery Mode) | PWM sine wave |
| Form Factor | Desktop / wall mount |
| Dimensions (H×W×D) | ~7.36″ × 5.67″ × 10.86″ |
| Weight | ~3.96 lb |
| Operating Temp | 0 °C to 40 °C |
| AC Suppression | 316 joules |
| Certifications | UL 1778, CSA, FCC Class B, NOM, ICES |
