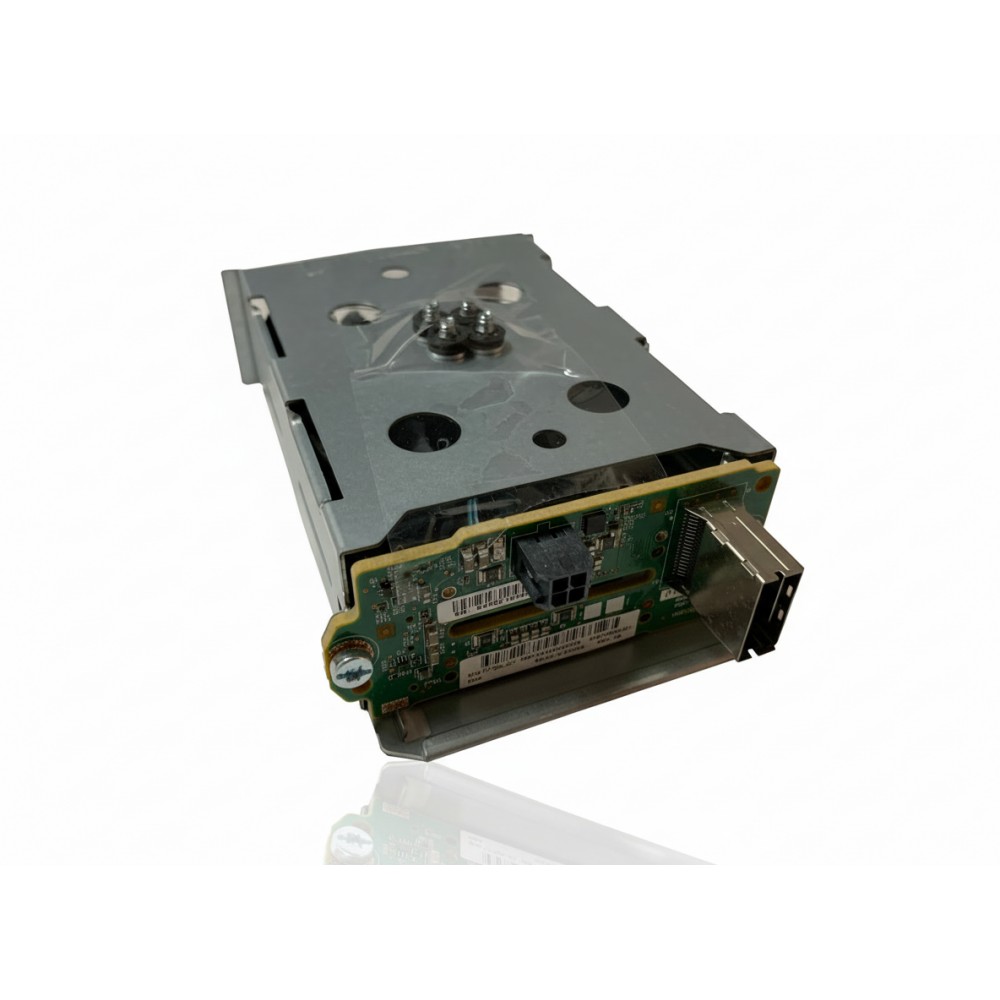

HP 724864-B21 BackplaneDL360 Gen9 SAS/SATA Kit View larger

HPE 724864-B21 BackplaneDL360 Gen9 SAS/SATA Kit

New

HP DL380 Gen9 2‑SFF Front/Rear SAS/SATA Kit
×




  • New
  • Refurbished

Detailed Specifications

HPE 724864-B21 2 SFF Front/Rear SAS/SATA Drive Kit

Overview :

The 724864-B21 kit from HPE is a drive backplane and cage upgrade for field engineers working with ProLiant DL servers, designed to enable two additional small form factor (2.5") SAS or SATA drives in either the front or rear bays. It supports deployment in the ProLiant DL380 Gen9 chassis (and compatible DL388 Gen9 systems) and solves the need for increased density without replacing the full server. The kit allows use of two SFF hot‑plug drives in the front or rear of the chassis depending on bay configuration, providing flexibility for branch, campus or data‑centre rack deployments. It integrates with the existing backplane and cabling infrastructure of the Gen9 server and is managed within the server’s storage subsystem.

Key Features :

  • Enables two hot‑plug SFF (2.5″) SAS/SATA drives

  • Front or rear bay support depending on chassis layout

  • Compatible with DL380 Gen9 and DL388 Gen9 systems

  • Retains existing backplane and cable architecture

  • Provides cost‑effective drive expansion without new chassis

Specifications :

SpecificationValue
Brand HPE
Part Number 724864‑B21
Product Type Drive kit / backplane assembly
Drive Count Supported 2 × SFF (2.5″) SAS/SATA
Compatible Chassis ProLiant DL380 Gen9, DL388 Gen9
Positioning Front or rear bay (per chassis config)
Dimensions 5.72 × 9.50 × 7.51 in (approx.) (converted from 14.5 × 24.13 × 19.05 cm)
Weight 0.99 lb (0.45 kg)
Supported Interface SAS or SATA (per server backplane)
Field Upgrade Yes — supports retrofit installation
Rear Bay Note Rear 2‑SFF requires 24 SFF or 12 LFF chassis variant; rear drives may limit CPU ≤160 W
Front Bay Note Front 2‑SFF requires Universal Media Bay kit if 8 SFF/8+8 model
Warranty Standard HPE parts warranty (varies by region)
Certification OEM genuine part, field‑installable
Packaging Quantity 1 kit per part
