Overview

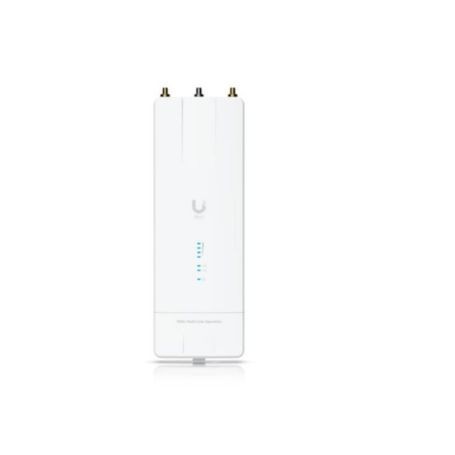

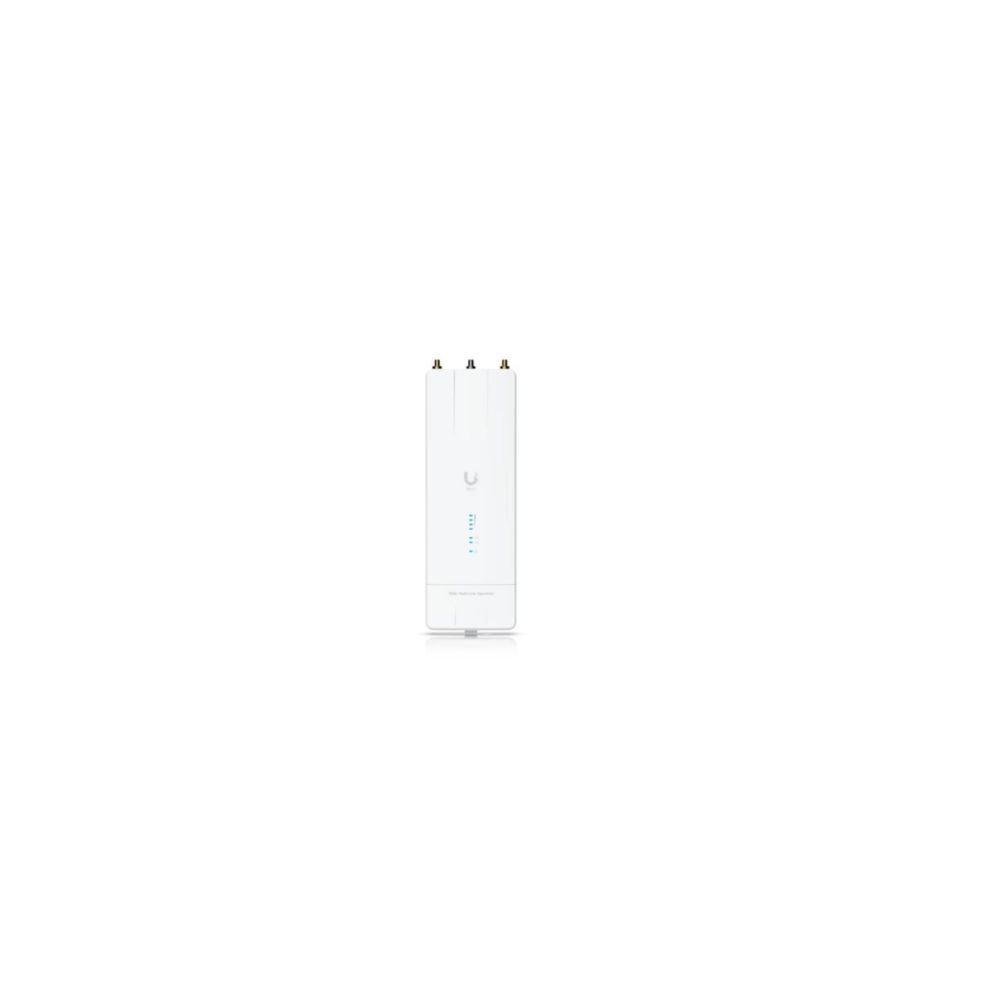

The Ubiquiti Wave MLO5 is a dual 5 GHz point-to-point wireless backhaul radio based on WiFi 7 technology and Multi-Link Operation (MLO). It combines two 2×2 MIMO 5 GHz radios into a high-capacity wireless link with 5+ Gbps total throughput, 10GbE wired connectivity, integrated GPS, and UISP management.
Wireless Architecture
The Wave MLO5 uses two independent 2×2 5 GHz radios for MLO operation. Radio 1 supports 20, 40, 80, and 160 MHz channel bandwidths, while Radio 2 additionally supports 240 MHz operation. Maximum transmit power is 24 dBm per 5 GHz radio, subject to regional regulatory limits.
Network Connectivity
Wired connectivity includes one 10GbE RJ45 port and one 10G SFP+ port. The radio operates in PtP mode and provides bridge networking with WPA3-PSK (AES) encryption. Ubiquiti specifies total wireless throughput above 5 Gbps and a maximum range of up to 100 km, with actual performance and range dependent on the antenna configuration, regulatory environment, and link conditions.
Synchronization and Management
An integrated GPS system provides synchronization capabilities, while UISP provides centralized management and wireless link diagnostics. Built-in utilities include antenna alignment, site survey, speed test, ping, traceroute, and discovery functions.
Key Features
- Dual 5 GHz WiFi 7-based radios with Multi-Link Operation
- 5+ Gbps total throughput and up to 100 km specified maximum range
- 10GbE RJ45 and 10G SFP+ wired interfaces
- Integrated GPS and dedicated GPS connector for synchronization
- IPX6 weatherproof enclosure with pole mounting support
Applications
The Wave MLO5 is designed for high-capacity point-to-point wireless backhaul between network sites. It can be deployed for ISP infrastructure, enterprise campus links, remote-site connectivity, and other backhaul applications requiring multi-gigabit wireless capacity and 10GbE network interfaces.
DC Supplies Product Note
The Wave MLO5 uses external antenna connections, so the antenna selection and link design are important parts of deployment planning; the radio itself provides two waterproof RP-SMA RF connectors rather than an integrated directional antenna.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | Wave-MLO5 |
| Product Type | Point-to-Point Wireless Backhaul Radio |
| Product Family | UISP Wave MLO |
| Wireless Technology | WiFi 7-based Multi-Link Operation (MLO) |
| Operating Mode | PtP |
| Radio Frequency | 5 GHz |
| 5 GHz Radios | 2 × 2×2 MIMO |
| Maximum TX Power | 24 dBm |
| Radio 1 Channel Bandwidth | 20 / 40 / 80 / 160 MHz |
| Radio 2 Channel Bandwidth | 20 / 40 / 80 / 160 / 240 MHz |
| Operating Frequency | 5180–5320 MHz, 5500–5700 MHz, 5745–5825 MHz |
| Total Throughput | 5+ Gbps |
| Maximum Range | 100 km |
| Ethernet Interface | 1 × 10GbE RJ45 |
| SFP+ Interface | 1 × 10G SFP+ |
| RF Connectors | 2 × waterproof RP-SMA |
| GPS Connector | 1 × waterproof GPS |
| GPS | Integrated |
| Processor | Quad-core IPQ5322, 1.5 GHz |
| Memory | 1GB DDR4 |
| Encryption | WPA3-PSK (AES) |
| Power Method | Passive PoE |
| Supported Voltage | 44–54V DC; 22–27V DC |
| Maximum Power Consumption | 20W |
| Power Adapter | 54V DC, 0.56A 10GbE PoE adapter included |
| Weatherproofing | IPX6 |
| Mounting | Pole mount |
| Pole Diameter | 25.4–50.8 mm (1–2 in.) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 5–95% noncondensing |
| Dimensions | 249.3 × 82 × 47.6 mm |
| Weight | 575 g |
| Management | UISP |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Wave MLO5?
The Wave MLO5 is a dual 5 GHz point-to-point wireless backhaul radio using WiFi 7-based Multi-Link Operation technology.
What throughput does the Wave MLO5 provide?
Ubiquiti specifies total throughput above 5 Gbps.
What network ports are available?
The radio has one 10GbE RJ45 port and one 10G SFP+ port.
Does the Wave MLO5 include a built-in antenna?
No. The radio uses two waterproof RP-SMA RF connectors for connection to compatible external antennas.
