Detailed Specifications

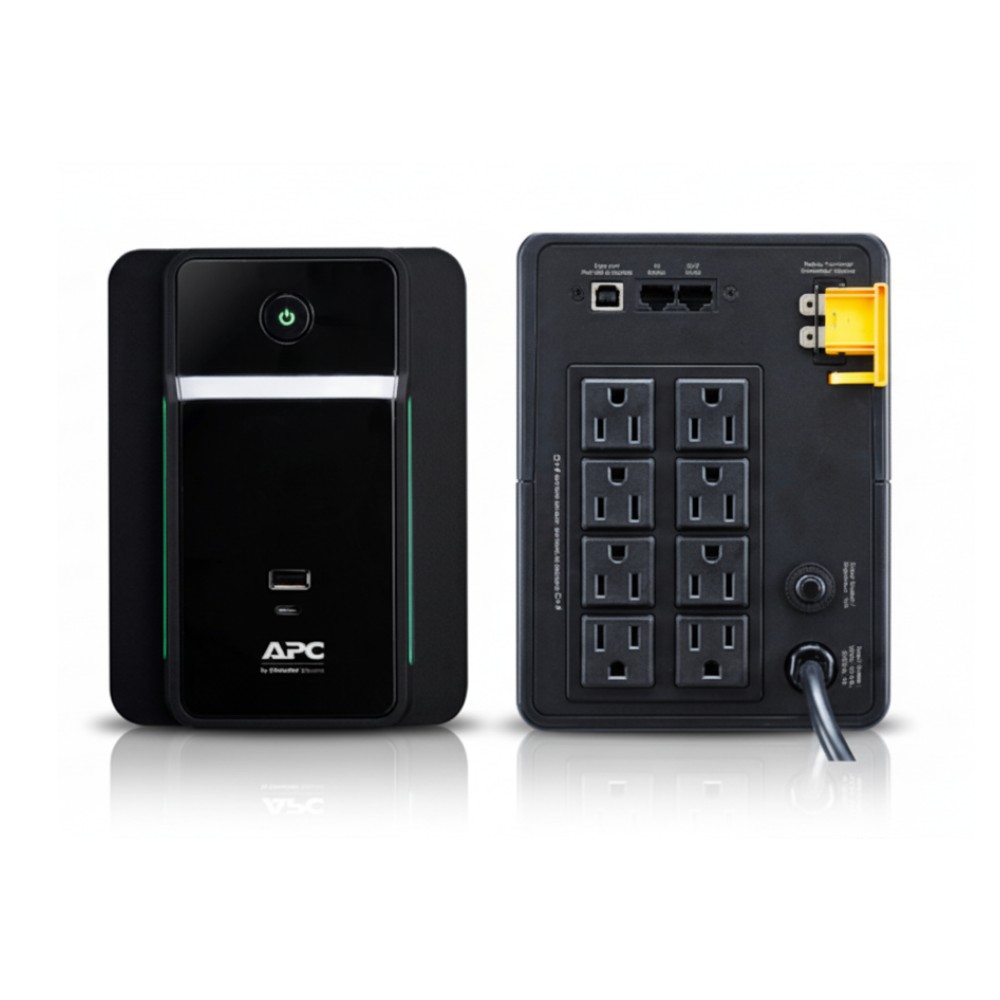

APC BVK1200M2 - 1200 VA Line-Interactive UPS
Overview
The APC BVK1200M2 is a line-interactive uninterruptible power supply (UPS) designed to provide AC continuity and surge protection for desktops, networking gear, and small servers during utility voltage fluctuations and outages. It's installed by IT support and facilities teams where regulated backup power and orderly shutdown capability are required for critical electronics.
Rated at 1200 VA with up to ~650 W load support, this UPS uses automatic voltage regulation (AVR) to correct under- and over-voltage conditions without engaging battery support until necessary. Switch-over to battery power typically occurs within 6-10 ms when mains voltage falls outside defined thresholds.
The BVK1200M2 includes eight NEMA 5-15R outlets, all providing both battery backup and surge protection to maintain connected load continuity. Integrated data-line protection and Emergency Power Off (EPO) support are included for comprehensive protection in IT environments handling sensitive equipment.
Connectivity options include USB-A and USB-C charging ports for auxiliary device power, as well as a USB communications interface for basic power event monitoring and graceful system shutdown when paired with host software on connected hosts.
The tower form factor occupies minimal footprint alongside workstations or rack shelves in distributed IT or small office deployments. Maintenance procedures include user-replaceable battery service to extend the UPS operational lifespan without full unit replacement.
This unit does not generate power independently and must be connected to mains AC to charge its battery and provide regulated output to loads. It's unsuitable as a primary power source or for large power systems beyond its 1200 VA/650 W capacity.
Key Features
• 1200 VA / ~650 W line-interactive UPS with AVR
• 8× NEMA 5-15R outlets with battery backup and surge protection
• USB-A and USB-C auxiliary charging ports
• RJ-45 data-line protection + Emergency Power Off support
• User-replaceable sealed lead-acid battery
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | BVK1200M2 |
| Product Type | Line-Interactive UPS |
| Rated Capacity | 1200 VA / ~650 W |
| Topology | Line-Interactive with AVR |
| Output Waveform | Stepped approximation to sine wave |
| Input Voltage Range | 108 - 150 V AC |
| Nominal Output Voltage | 120 V AC |
| Frequency | 60 Hz |
| Outlets | 8× NEMA 5-15R (battery + surge) |
| Surge Energy Rating | 350 J |
| USB Ports | 1× USB-A & 1× USB-C (5 V) |
| Communications | USB (HID compliant) |
| Data-Line Protection | RJ-45 Ethernet |
| EPO Support | Yes |
| Battery Type | Sealed lead-acid (user-replaceable) |
| Battery Voltage | 12 V |
| Battery Capacity | ~9 Ah |
| Recharge Time | ~6 hours |
| Typical Runtime (Half Load) | ~7 min |
| Typical Runtime (Full Load) | ~1 min |
| Dimensions (HxWxD) | ~7.5×5.5×15.4 in |
| Weight | ~17 lb |
| Operating Temp | 0 - 40 °C |
| Operating Humidity | 0 - 95 % non-condensing |
