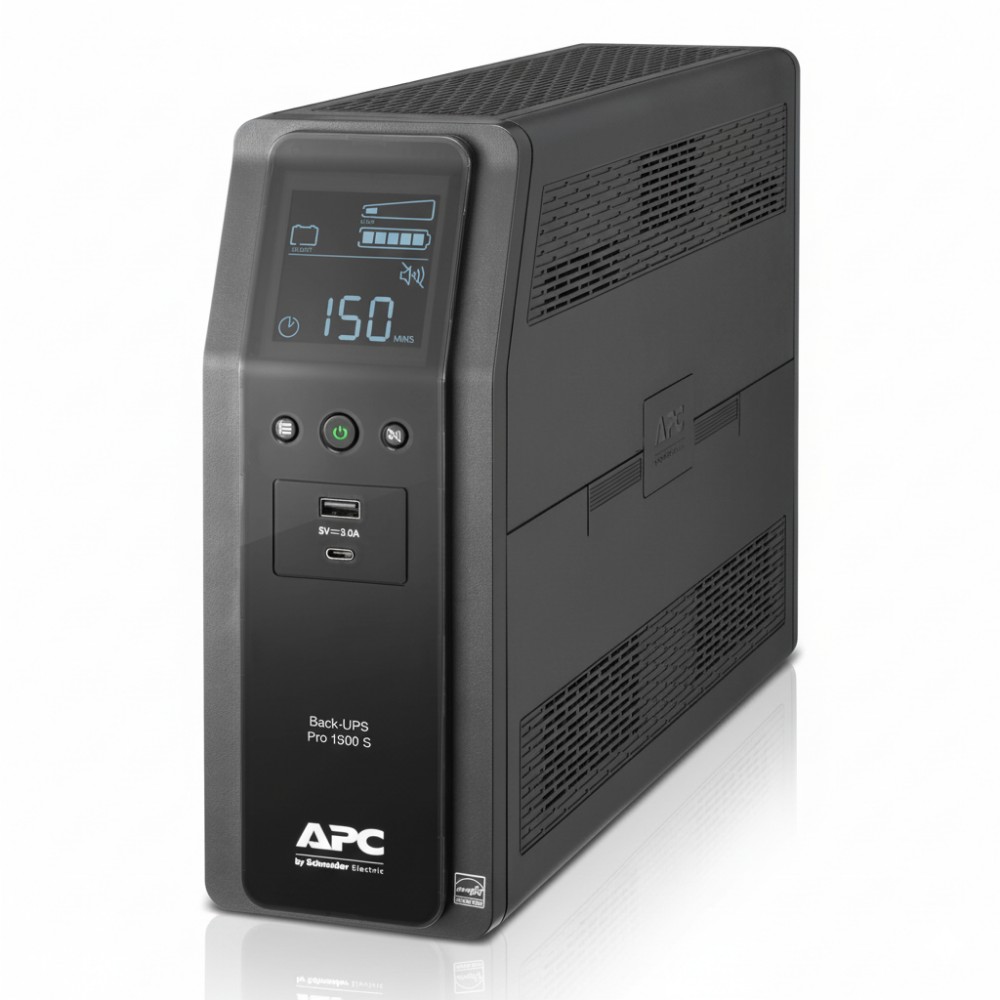

APC BR1500MS2 - Line-Interactive 1500 VA UPS 900 W
Overview
The APC BR1500MS2 is a line-interactive uninterruptible power supply (UPS) engineered to provide AC continuity, surge protection, and managed shutdown capability for connected electronics and IT equipment. It's deployed in small business, home server, and workstation environments where maintaining power during outages and regulating incoming voltage is essential.
Rated for 1500 VA / 900 W, this UPS uses line-interactive topology with automatic voltage regulation (AVR), which corrects undervoltages and overvoltages without engaging the battery until necessary, thereby preserving runtime capacity.
The UPS integrates a multi-function LCD interface conveying real-time status of load level, battery charge, and event conditions. Built-in USB Type-A and Type-C ports provide auxiliary charging for mobile devices while the unit supports data-line protection for network and coaxial connections to safeguard against surge events.
Six outlets provide both battery backup and surge protection, while four additional outlets offer surge-only protection to segregate critical from non-critical loads and maximize available runtime. The unit automatically recharges the internal sealed lead-acid battery when mains power is restored.
During outages, the transfer to battery power typically occurs within 8 ms (maximum ~10 ms), and the sine-wave output supports a wide range of computing and networking equipment without the waveform limitations of stepped approximations.
Key Features
• 1500 VA / 900 W line-interactive UPS with AVR
• 10 outlets (6 battery + surge, 4 surge-only)
• Integrated multifunction LCD status and control console
• Dual USB Type-A and Type-C charging ports
• Sine-wave output with ~8 ms transfer time
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | BR1500MS2 |
| Product Type | Line-Interactive UPS |
| Rated Capacity | 1500 VA / 900 W |
| Topology | Line-Interactive with AVR |
| Waveform Type | Sine wave output |
| Input Voltage Range | 88 - 147 V AC |
| Nominal Output Voltage | 120 V AC |
| Frequency | 60 Hz ± tolerance |
| Transfer Time | ~8 ms typical, ≤10 ms |
| Outlets | 10× NEMA 5-15R (6 battery & surge, 4 surge only) |
| USB Ports | 1× USB-A & 1× USB-C (5 V / 3 A shared) |
| Surge Protection | ~1080 J |
| Data-Line Protection | RJ45 network और coaxial |
| Battery Type | Sealed lead-acid, user-replaceable |
| Recharge Time | ~16 hours |
| Replacement Battery | APCRBC163 |
| Operating Temp | 0 - 40 °C |
| Humidity | 0 - 95 % non-condensing |
| Dimensions | ~3.94 × 10.24 × 14.49 in |
| Weight | ~27.6 lb |
