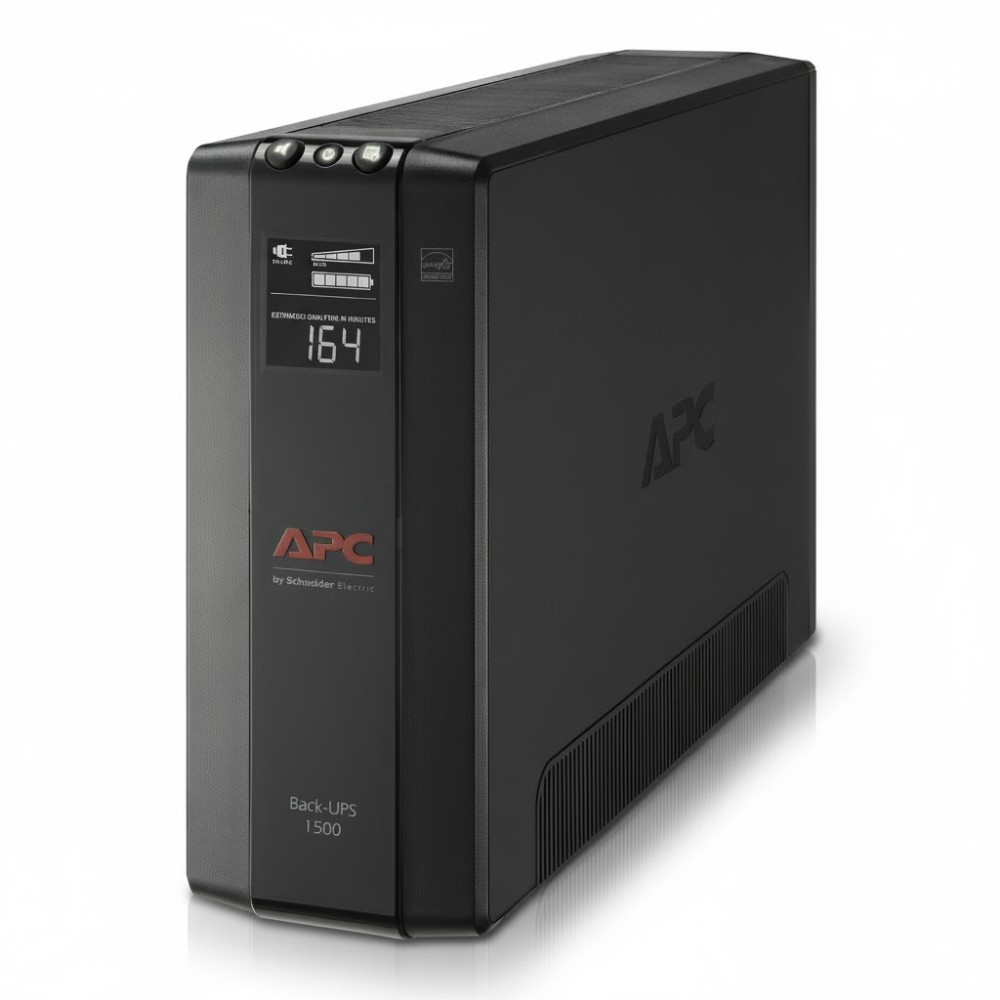

APC BX1500M - Line-Interactive UPS 1500 VA / 900 W
Overview
The APC BX1500M is a line-interactive uninterruptible power supply (UPS) designed to maintain AC continuity and mitigate power anomalies for connected electronics in home offices, small businesses, and distributed IT spaces. It provides temporary battery support and surge protection during utility outages, enabling orderly shutdowns and protecting devices from voltage transients and dips.
With a rated output capacity of 1500 VA / 900 W and automatic voltage regulation (AVR), this UPS stabilizes input fluctuations within the range of ~88 V to 139 V AC, reducing battery use for minor undervoltages and overvoltages. Line-interactive topology with simulated sine wave output switches to battery support with a typical transfer time of 8 - 10 ms.
The unit includes ten NEMA 5-15R outlets × five offering both battery backup and surge protection, plus five dedicated surge-only outlets × allowing segmentation of critical and non-critical loads to preserve runtime for essential devices. An integrated multi-function LCD and status indicators present load level, battery status, and event logs to aid in situational awareness during power events.
A sealed, maintenance-free lead-acid battery supplies DC energy for on-battery operation. Runtime varies based on load; full-load support is approximately 2.8 minutes, and at half-load around 10.9 minutes. Batteries are replaceable using the APC APCRBC124 model without removing the UPS from service.
Installation is straightforward as a compact tower form factor suitable for placement adjacent to equipment racks, shelves, or desktops where space is limited. USB and serial communication interfaces support basic management or integration with software tools.
Key Features
• 1500 VA / 900 W line-interactive UPS with AVR
• 10 NEMA 5-15R outlets (5 battery backup + surge, 5 surge only)
• Multi-function LCD for power and battery status
• Sealed, replaceable lead-acid battery (APCRBC124)
• Typical 8 - 10 ms transfer to battery support
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | BX1500M |
| Product Type | Line-Interactive UPS |
| Rated Capacity | 1500 VA / 900 W |
| Topology | Line-Interactive |
| Output Waveform | Simulated sine wave |
| Input Voltage Range | ~88 - 139 V AC |
| Output Voltage | 120 V AC nominal |
| Frequency | 60 Hz nominal |
| Transfer Time | 8 - 10 ms typical |
| Outlets | 10× NEMA 5-15R (5 battery + surge, 5 surge-only) |
| Surge Protection | 789 J surge energy rating |
| Battery Type | Sealed lead-acid, maintenance-free |
| Full-Load Runtime | ~2.8 min @ 900 W |
| Half-Load Runtime | ~10.9 min @ ~450 W |
| Recharge Time | ~16 hours |
| Replacement Battery | APCRBC124 |
| Communications | USB, Serial (RJ45) |
| Operating Temp | 0 - 40 °C |
| Operating Humidity | 0 - 95 % non-condensing |
| Dimensions (WxHxD) | ~100 × 250 × 382 mm |
| Weight | ~11 kg |
