Overview

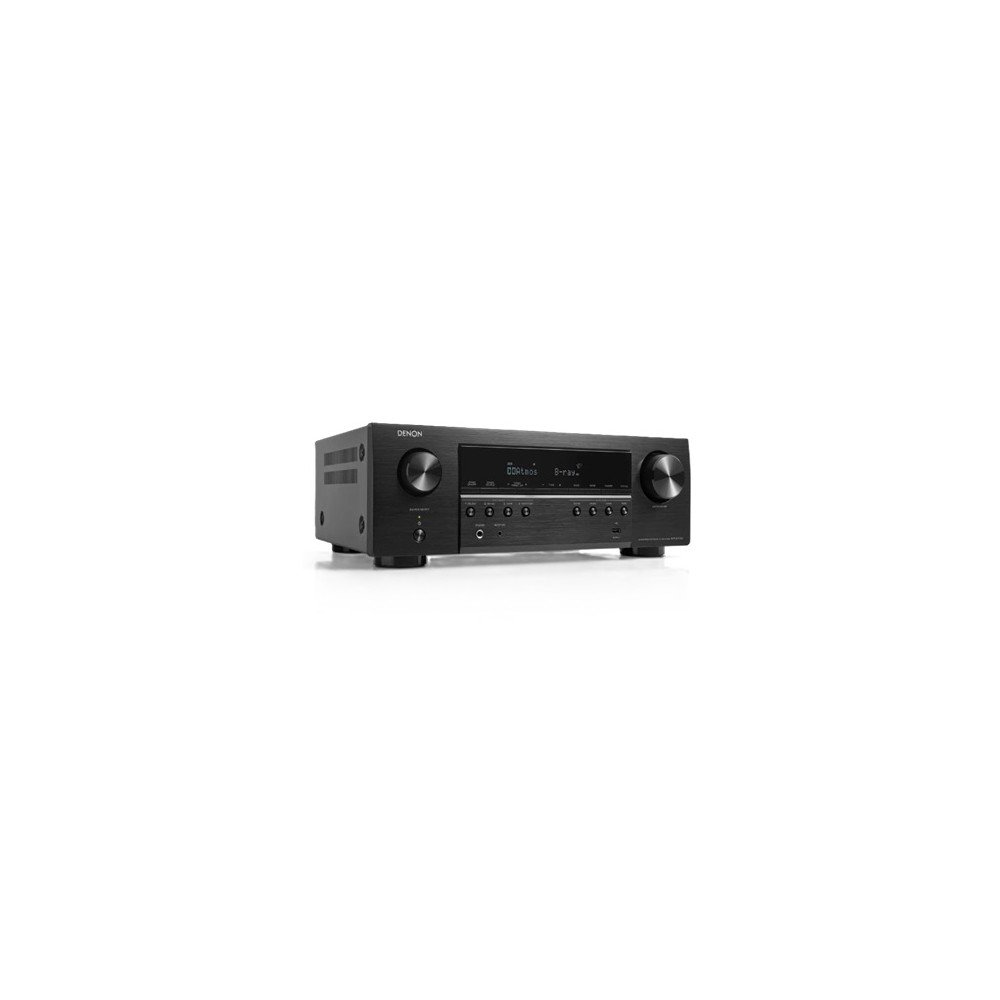

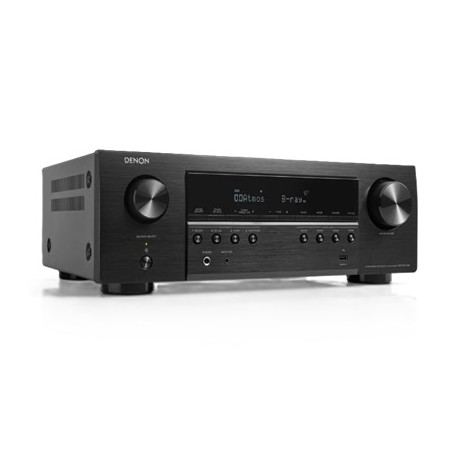

The Denon AVR-S770H is a 7.2-channel network AV receiver designed for home theater systems, music playback, and modern television and gaming setups. It combines seven discrete power amplifier channels with support for Dolby Atmos, DTS:X, 8K video, wireless streaming, and multi-room audio through HEOS.
The receiver supports conventional 7.2-channel surround sound or a 5.2.2 Dolby Atmos configuration with compatible height speakers. Its network connectivity and HDMI switching allow connected entertainment devices, televisions, gaming consoles, and audio sources to operate through a centralized system.
Audio Performance and Surround Sound
The AVR-S770H delivers a rated 75 watts per channel into 8-ohm speakers, measured from 20 Hz to 20 kHz with two channels driven at 0.08% total harmonic distortion. It also supports a 110-watt-per-channel rating at 6 ohms under the manufacturer's specified test conditions.
Supported surround formats include Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS:X, DTS-HD Master Audio, and DTS Virtual:X. Audyssey MultEQ room correction measures the connected speaker system and adjusts its response to suit the listening environment.
Video and HDMI Connectivity
The receiver provides six HDMI inputs and one HDMI output, with three inputs supporting 8K and advanced 4K gaming signals. Supported video capabilities include 8K/60Hz, 4K/120Hz, HDR10+, Dolby Vision, HDR10, HLG, and Dynamic HDR, subject to the connected source, display, cable, and signal format.
HDMI Enhanced Audio Return Channel (eARC) allows compatible televisions to send supported audio formats back to the receiver through the HDMI connection. Additional features include HDMI-CEC, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Frame Transport (QFT), and HDCP 2.3.
Network Streaming and Multi-Room Audio
Built-in Wi-Fi, Ethernet, and Bluetooth provide several options for connecting audio sources. HEOS supports compatible music services and multi-room playback with compatible HEOS-enabled products. Apple AirPlay 2 and Spotify Connect provide additional ways to stream music from supported devices and services.
The receiver supports playback of selected high-resolution audio formats, including FLAC, ALAC, and WAV up to 192 kHz/24-bit, along with DSD 2.8 MHz and 5.6 MHz files. Availability of individual streaming services depends on region, account requirements, and service support.
Key Features
- Seven discrete amplifier channels supporting 7.2-channel or 5.2.2-channel home theater configurations.
- Dolby Atmos, DTS:X, Dolby Surround, and DTS Virtual:X audio processing.
- Six HDMI inputs and one output, including three 8K-capable inputs and eARC support.
- HEOS, Wi-Fi, Ethernet, Bluetooth, AirPlay 2, and Spotify Connect for network and wireless audio.
- Audyssey MultEQ room correction with Dynamic EQ and Dynamic Volume.
Compatibility and Installation
The AVR-S770H is designed for compatible passive loudspeakers and subwoofers. Speaker impedance, wiring, placement, and the selected amplifier configuration should follow the manufacturer's recommendations. The receiver has two subwoofer outputs for compatible powered subwoofers.
HDMI-connected televisions, media players, set-top boxes, and gaming systems can be integrated into the system. For advanced video formats such as 4K/120Hz and 8K/60Hz, ensure that the source device, display, and HDMI cable all support the intended signal.
For network streaming and app control, connect the receiver to a compatible home network. The HEOS and Denon AVR Remote apps provide supported playback, setup, and receiver-control functions.
Applications
- Home theater systems with Dolby Atmos or DTS:X surround sound.
- Gaming and movie setups using compatible 4K/120Hz or 8K displays.
- Music playback using network streaming, Bluetooth, AirPlay 2, or USB audio.
- Multi-room listening with compatible HEOS-enabled products.
- Home entertainment systems combining HDMI sources, television audio, and passive speakers.
DC Supplies Product Note
Choose the speaker layout before installation. A 5.2.2 Dolby Atmos setup uses five ear-level speakers, two subwoofers, and two height channels, while a 7.2 layout uses additional surround channels without dedicated height speakers. The receiver has seven amplifier channels, so configurations requiring more than seven simultaneously amplified speaker channels need a different system design.
Specifications
| Specification | Details |
|---|
| Brand | Denon |
| Part Number / MPN | AVR-S770H |
| Product Type | Network AV receiver |
| Channel Configuration | 7.2 channels |
| Number of Power Amplifiers | 7 |
| Rated Power Output | 75 W per channel, 8 ohms, 20 Hz–20 kHz, 0.08% THD, two channels driven |
| Additional Power Rating | 110 W per channel, 6 ohms, 1 kHz, 0.7% THD, two channels driven |
| Supported Speaker Layouts | 7.2 or 5.2.2 |
| Surround Formats | Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS:X, DTS-HD Master Audio, DTS Virtual:X |
| Room Correction | Audyssey MultEQ |
| Sound Enhancements | Audyssey Dynamic EQ, Audyssey Dynamic Volume, Compressed Audio Restorer |
| HDMI Inputs | 6 total, including 3 8K-capable inputs |
| HDMI Outputs | 1 |
| Maximum Supported Video Signals | 8K/60Hz and 4K/120Hz |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR |
| HDMI Features | eARC, CEC, HDCP 2.3, VRR, ALLM, QFT |
| Analog Audio Inputs | 2 |
| Phono Input | 1 MM input |
| Optical Digital Inputs | 2 |
| Coaxial Digital Inputs | 1 |
| Subwoofer Outputs | 2 |
| USB Audio Input | 1 front USB port |
| USB Power Output | Rear USB, 5 V / 1.5 A |
| Network Connectivity | Wi-Fi, Ethernet |
| Wireless Audio | Bluetooth, Apple AirPlay 2 |
| Multi-Room Audio | HEOS built-in |
| Streaming Compatibility | Spotify Connect and supported HEOS streaming services |
| High-Resolution Audio | FLAC, ALAC, WAV up to 192 kHz/24-bit; DSD 2.8/5.6 MHz |
| Speaker Impedance | 4–16 ohms, subject to the manufacturer's configuration requirements |
| Power Consumption | 400 W |
| Power Consumption, No Sound | 29 W in ECO mode; 39 W with ECO mode off |
| Standby Power Consumption | 0.1 W |
| Network Standby Consumption | Less than 2.0 W |
| Remote Control | RC-1257 |
| Color | Black |
| Dimensions, Antennas Horizontal (W × D × H) | 434 × 339 × 151 mm (17.1 × 13.3 × 5.9 inches) |
| Dimensions, Antennas Vertical (W × D × H) | 434 × 339 × 215 mm (17.1 × 13.3 × 8.5 inches) |
| Product Weight | 8.6 kg (19.0 lb) |
Frequently Asked Questions
Can the AVR-S770H power a Dolby Atmos speaker setup?
Yes. It supports a 5.2.2 layout, which includes five ear-level speakers, two subwoofers, and two height channels, using its seven amplifier channels.
Does this receiver support 4K gaming at 120Hz?
Yes. It supports 4K/120Hz signals through compatible HDMI inputs. A compatible gaming device, display, and HDMI cable are also required.
Can I stream music without connecting a separate streamer?
Yes. Built-in HEOS, Wi-Fi, Bluetooth, AirPlay 2, and Spotify Connect provide supported streaming options without requiring a separate streaming device.
Can I connect a turntable?
Yes. The receiver has an MM phono input for a compatible moving-magnet turntable. A turntable requiring a different phono configuration may need a suitable external phono preamplifier.
Does it include room calibration?
Yes. Audyssey MultEQ room correction is built in. Use a compatible calibration microphone and follow the setup procedure described in the manufacturer's documentation.
Can it play audio in another room?
Yes. It supports multi-room functions through HEOS and has assignable speaker connections for supported configurations. Available sources and output options depend on the selected setup.
