Detailed Specifications

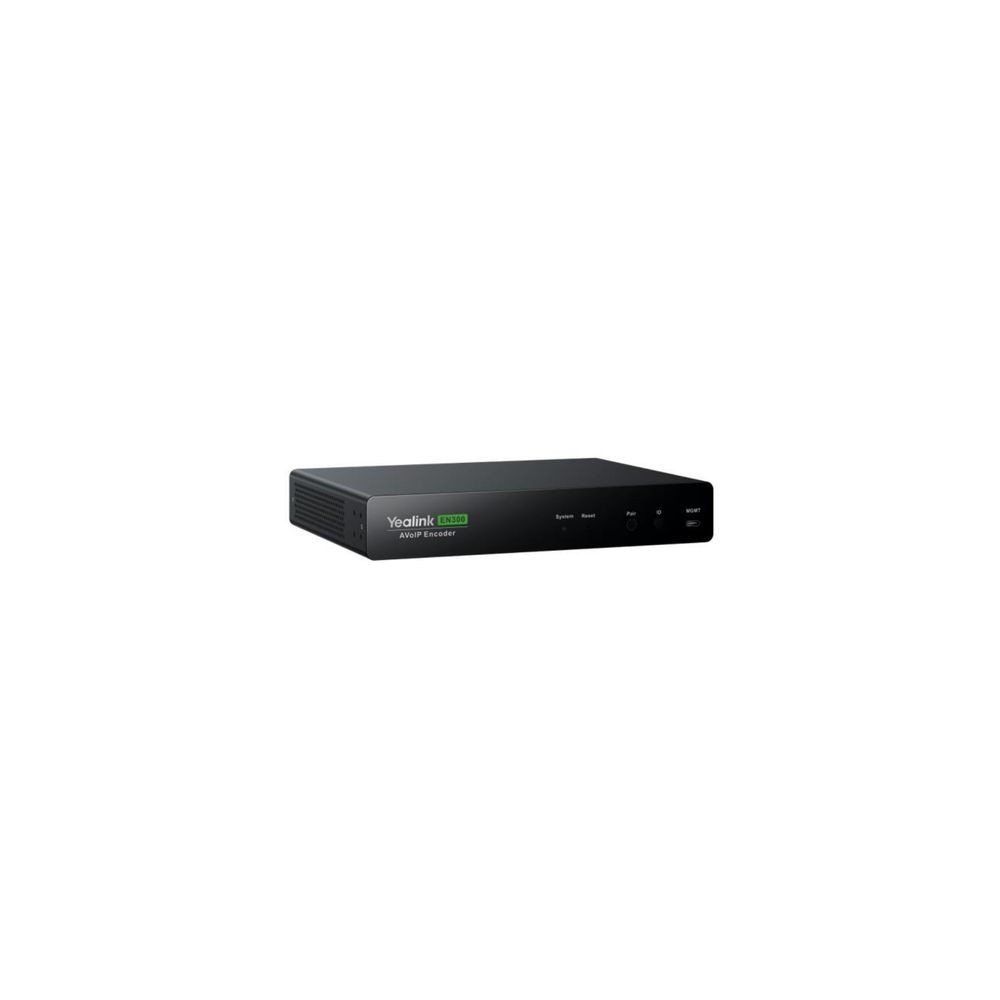

YEALINK 1303167 - AV over IP Encoder
Overview
The Yealink EN300 (MPN: 1303167) is a professional-grade AV over IP (AVoIP) transmitter engineered to encode and distribute high-definition media over standard 1Gbps enterprise networks.It addresses long-distance signal degradation and rigid matrix switching limits by utilizing low-compression encoding technology.This architecture delivers lossless 4K video at 60Hz with full 4:4:4 chroma sampling across local area subnets while maintaining ultra-low latency measured under a single frame.
The hardware features an integrated USB over IP bus to enable remote peripheral switching, allowing physical USB assets like conference room cameras, mice, or keyboards connected to a downstream decoder to pipe back directly into the host compute node. Input switching is managed natively via automated hardware negotiation across dual HDMI ports and a full-featured USB-C interface that supplies up to 45W of USB Power Delivery for laptop charging during wired BYOD/BYOM sessions. The unit includes native support for the Dante AV-A protocol and AES67 audio streams through on-demand software licensing. Do not deploy this transmitter on sub-Gigabit networks or standard unmanaged switches lacking IGMP Snooping capabilities, as multicast high-bandwidth 4K distribution will saturate non-optimized networking infrastructure.
Key Features
Lossless 4K60 video transmission maintains 4:4:4 color depth accuracy.
Integrated 45W Type-C port enables simultaneous casting and fast charging.
USB over IP routing bridges remote conference room peripherals seamlessly.
Embedded Dante AV-A protocol supports native network audio interoperability.
Automated hardware priority switching transitions between live media sources fast.
Specifications
| |
| Brand | Yealink |
| Part Number | 1303167 |
| Product Type | AV over IP Encoder |
| Video Processing | Up to 4K Ultra HD (3840 x 2160) @ 60Hz, 8-bit color, HDR |
| Chroma Sampling | 4:4:4 Chroma Subsampling |
| Network Latency | Ultra-low transmission latency (less than 1 frame delay) |
| Video Input Interfaces | 2 x HDMI Type-A, 1 x Full-Featured USB Type-C |
| Video Output Interfaces | 1 x HDMI Type-A (Supports CEC Display Control) |
| Network Interfaces | 1 x 1Gbps RJ-45 Ethernet port (Multicast, DHCP, IPv4) |
| USB Connectivity | 2 x USB 3.0 Type-B (Host), 1 x USB 3.0 Type-A (Peripheral) |
| Audio Processing | Multi-channel LPCM, Dual-channel balanced/unbalanced analog out |
| Network Audio Support | Dante AV-A / AES67 interoperability (License required) |
| Control Interfaces | 1 x Bi-directional RS-232, 1 x Unidirectional IR Out, 1 x RJ-45 MGMT |
| Content Protection | HDCP 2.3 Compliant |
| Power Management | PoE+ (802.3at Class 4) or DC 19V / 4.74A External Adapter |
