Overview

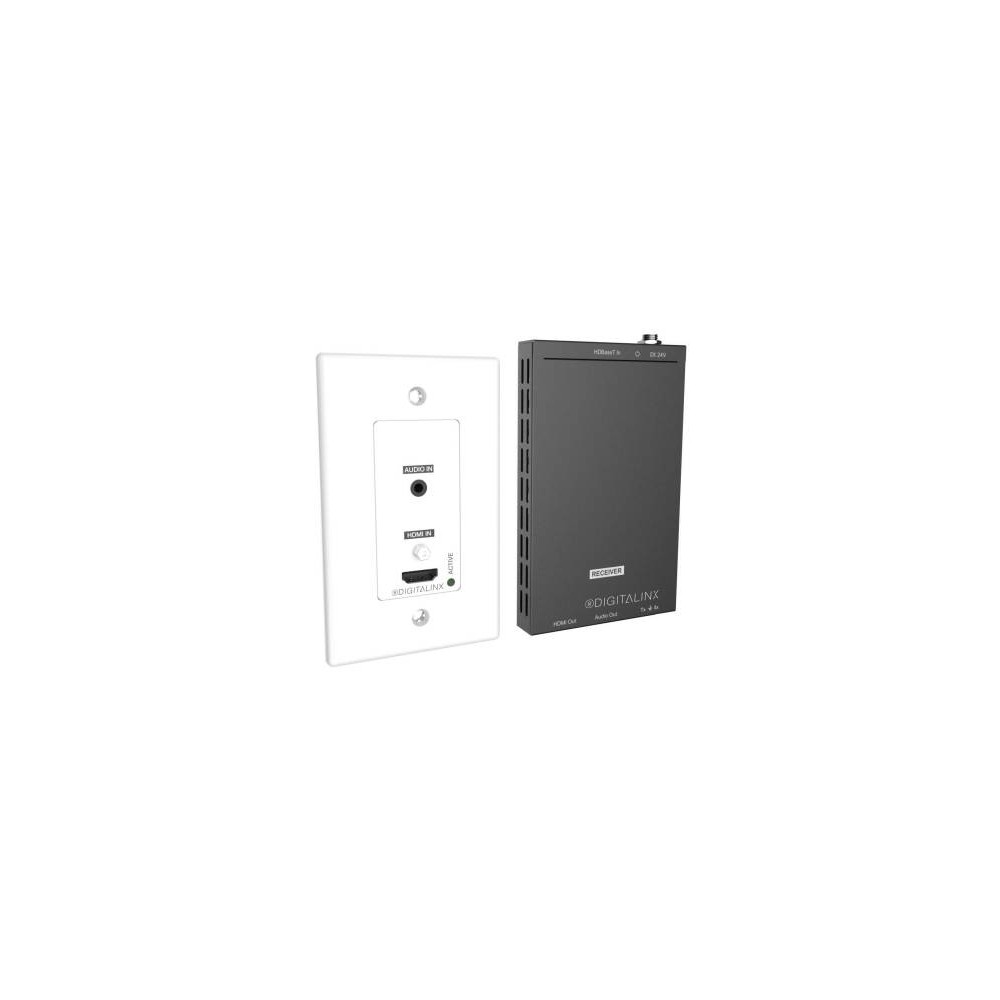

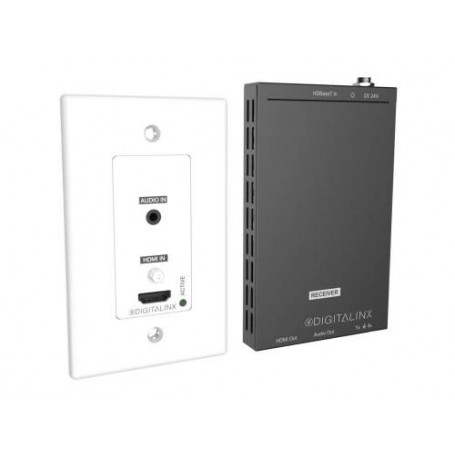

The Liberty DL-1H1A-WPKT-W is an HDMI HDBaseT wall plate extender set designed to transmit video, audio, and control signals over a single Category cable. It supports compatible 4K video formats and HDCP 2.2 content protection, making it suitable for professional audiovisual installations. The system includes a wall plate transmitter and a receiver, providing a practical solution for conference rooms, classrooms, commercial displays, and other installations requiring HDMI signal extension over longer distances.
Key Features
- HDMI signal extension over Category cable - Supports compatible 4K video formats - HDCP 2.2 content protection - HDMI audio and separate stereo analog audio support - RS-232 and CEC control pass-through - Remote power delivery to the transmitter - Wall plate transmitter for clean, professional installations - Designed for compatible Liberty HDBaseT equipment
Technical Specifications
| Specification | Details | |---|---| | Brand | Liberty | | Manufacturer | Liberty AV Solutions | | Part Number / MPN | DL-1H1A-WPKT-W | | Product Type | HDMI HDBaseT Wall Plate Extender Set | | Video Interface | HDMI | | Maximum Resolution | Up to 4K, depending on supported video format | | Content Protection | HDCP 2.2 | | Audio | HDMI audio and stereo analog audio | | Control Interfaces | RS-232 and CEC | | Transmission Medium | Category twisted-pair cable | | Installation | Wall plate transmitter and remote receiver | | Power | Remote power over the transmission link | | Application | Professional AV signal extension |
Applications
- Conference rooms and meeting spaces - Educational classrooms - Commercial display installations - Projector and presentation systems - Professional AV integration projects
Installation and Compatibility
Use the transmitter and receiver as a matched set and follow the manufacturer's recommendations for cable type, transmission distance, and power requirements. Confirm compatibility with the connected HDMI source, display, and control system before installation.
Frequently Asked Questions
1. What is the DL-1H1A-WPKT-W?
It is an HDMI HDBaseT extender set with a wall plate transmitter and a receiver.
2. Does it support 4K video?
Yes. It supports compatible 4K video formats, subject to the source, display, cabling, and supported signal configuration.
3. Can it transmit control signals?
Yes. It supports RS-232 and CEC pass-through.
4. What cable does it use?
It uses compatible Category twisted-pair cable. Follow manufacturer guidance for cable selection and maximum distance.
DC Supplies Product Note
Before ordering, verify the exact model number, required resolution, cable distance, and compatibility with your AV equipment.
