Detailed Specifications

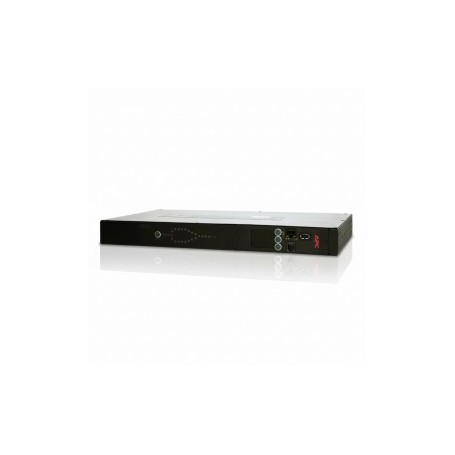

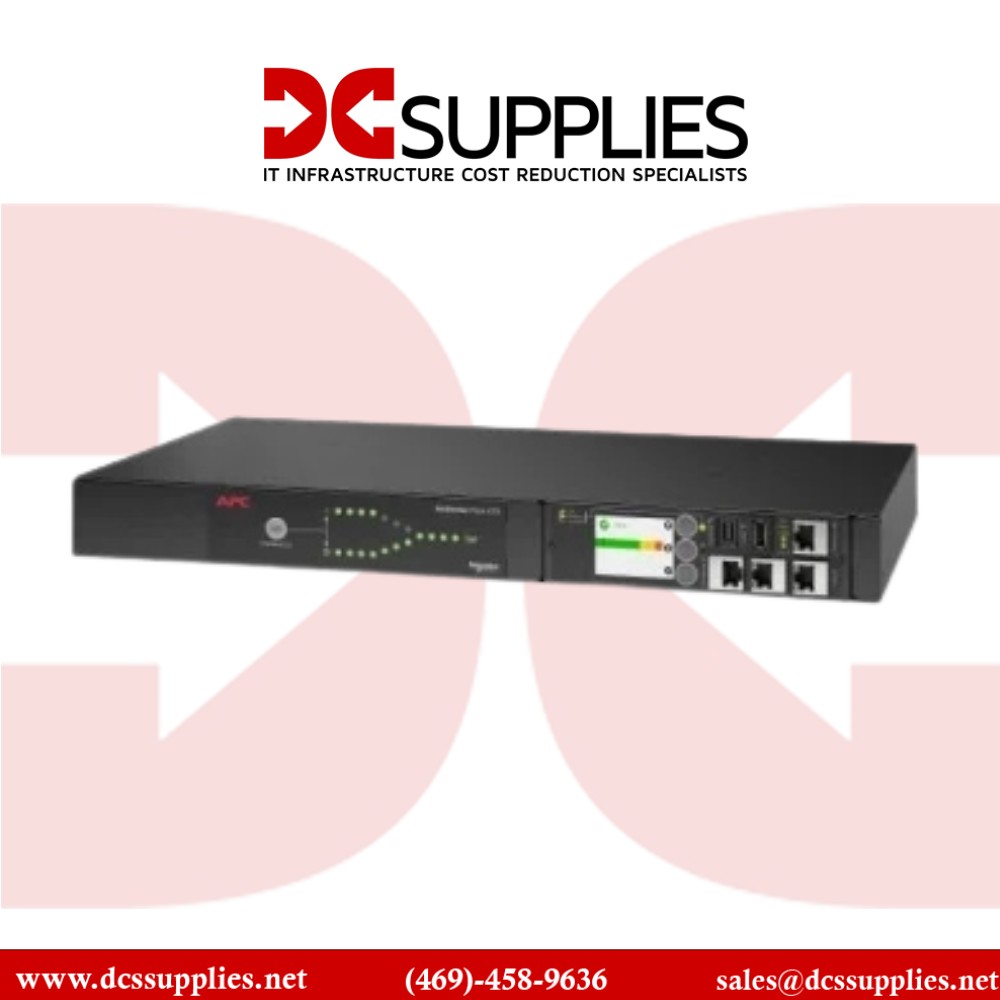

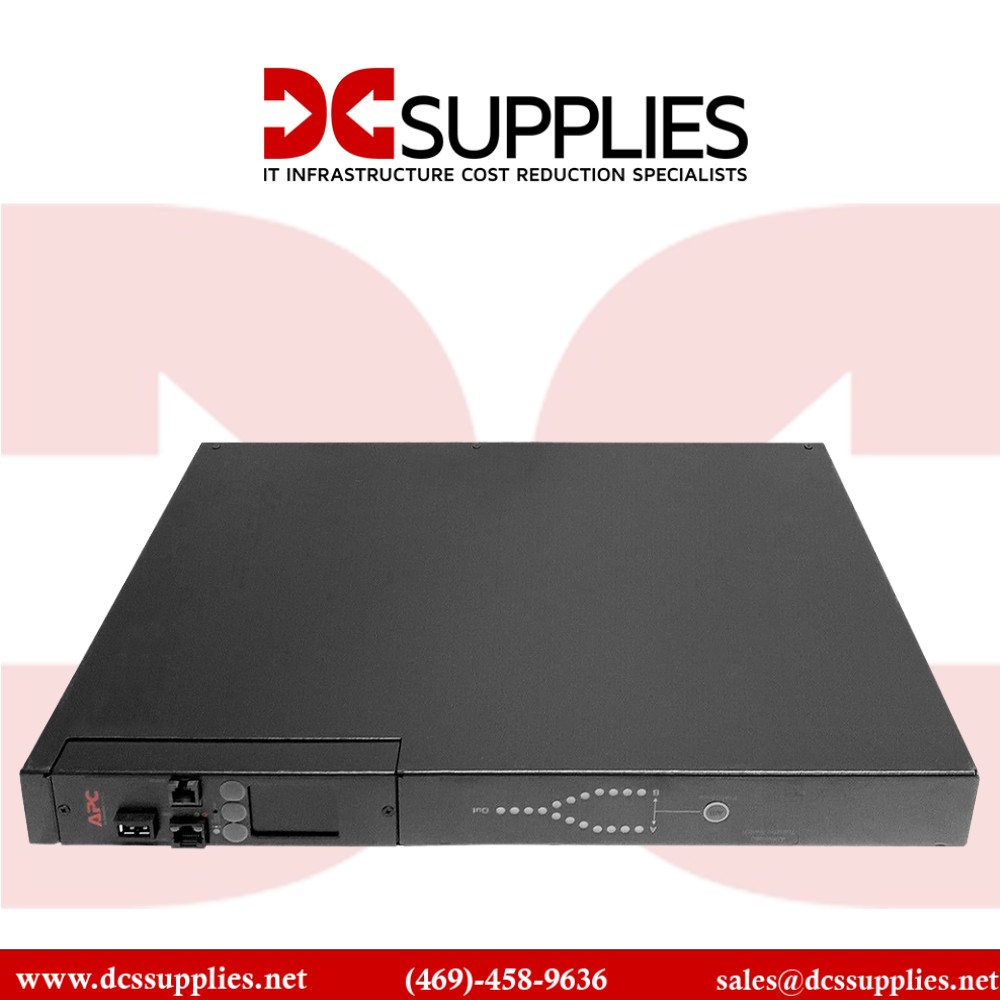

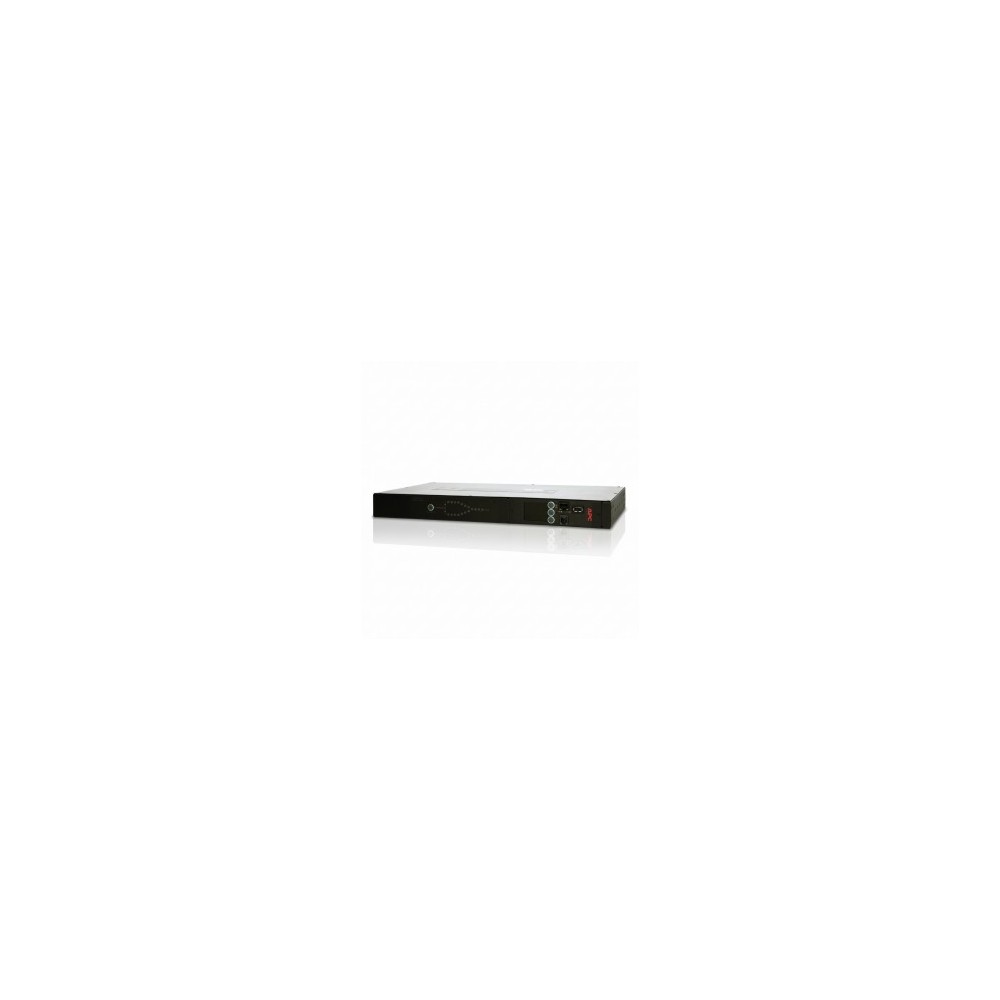

APC AP4430 - Rack Automatic Transfer Switch (1U, 20A)
Overview :
The APC AP4430 is a rack-mounted automatic transfer switch that provides redundant power switching for single-corded IT equipment. It is designed to sense loss or degradation of a primary power source and switch to a secondary input with minimal disruption. The device is suited for use in racks, data centers, edge enclosures, or network closets. It integrates into power and infrastructure management platforms for remote monitoring and control.
Key Features :
Seamless transfer in ≤ 10 ms under fault conditions
Two independent input sources (dual-inlet design)

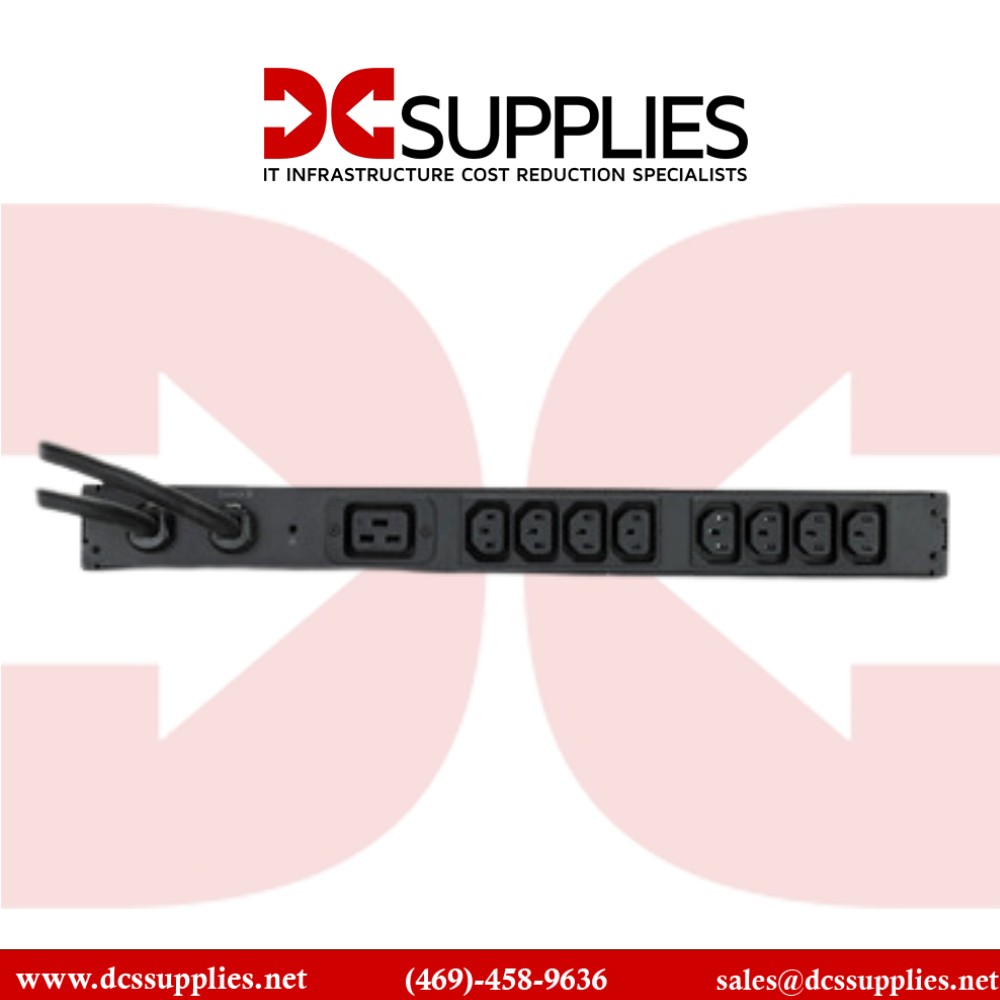

Supports 8 × IEC C13 plus 1 × IEC C19 outputs
Compact 1U form factor for rack deployment
Specifications :
| Specification | Value |
|---|
| Brand | APC |
| Part Number | AP4430 |
| Product Type | Rack Automatic Transfer Switch (Rack ATS) |
| Input Voltage Range | 200 V / 208 V AC |
| Input Connection Type | NEMA L6-20P (dual inlet) |
| Output Voltage | 200 V / 208 V AC |
| Output Receptacles | 8 × IEC 60320 C13, 1 × IEC 60320 C19 |
| Rated Current | 20 A |
| Rack Units (Height) | 1U |
| Dimensions (HxWxD) | 1.7 in × 17 in × 9.3 in (approx.) |
| Weight | ~10.65 lb (~4.83 kg) |
| Certifications | EN 55022 Class A, FCC Part 15 Class A |
