Detailed Specifications

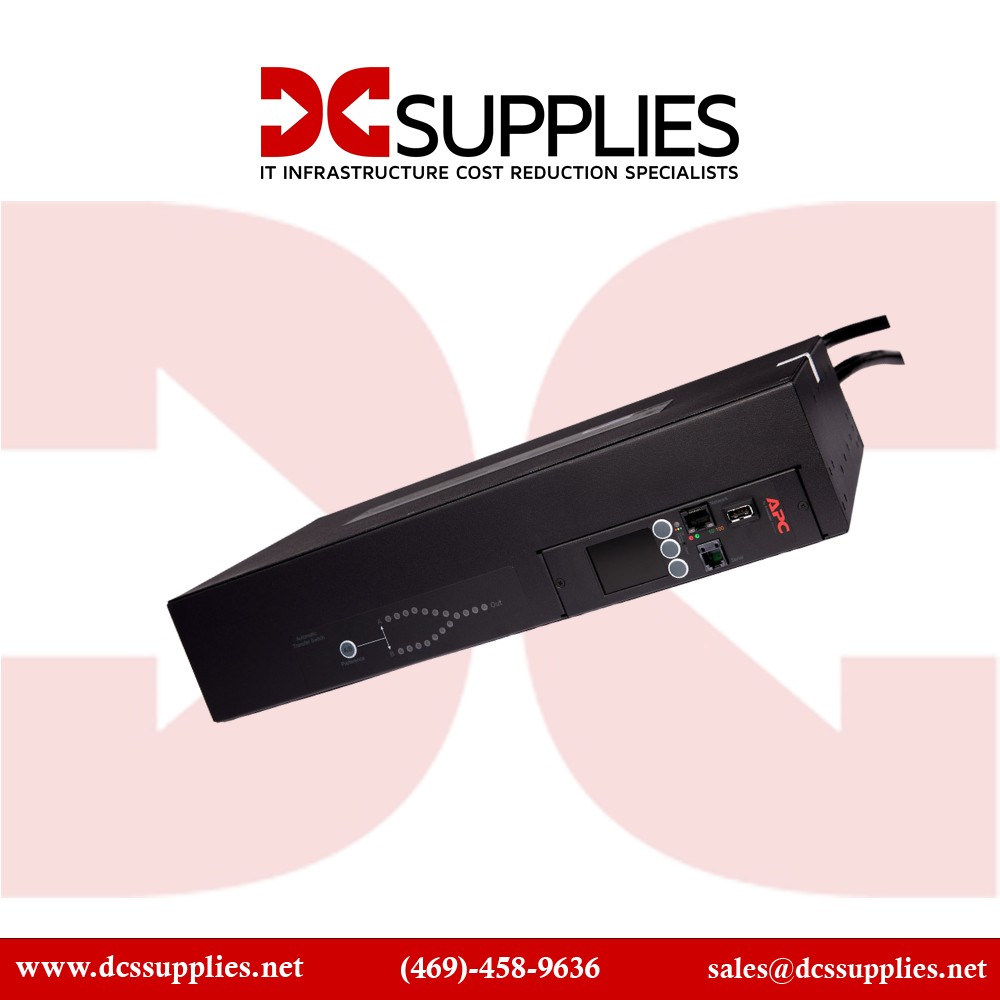

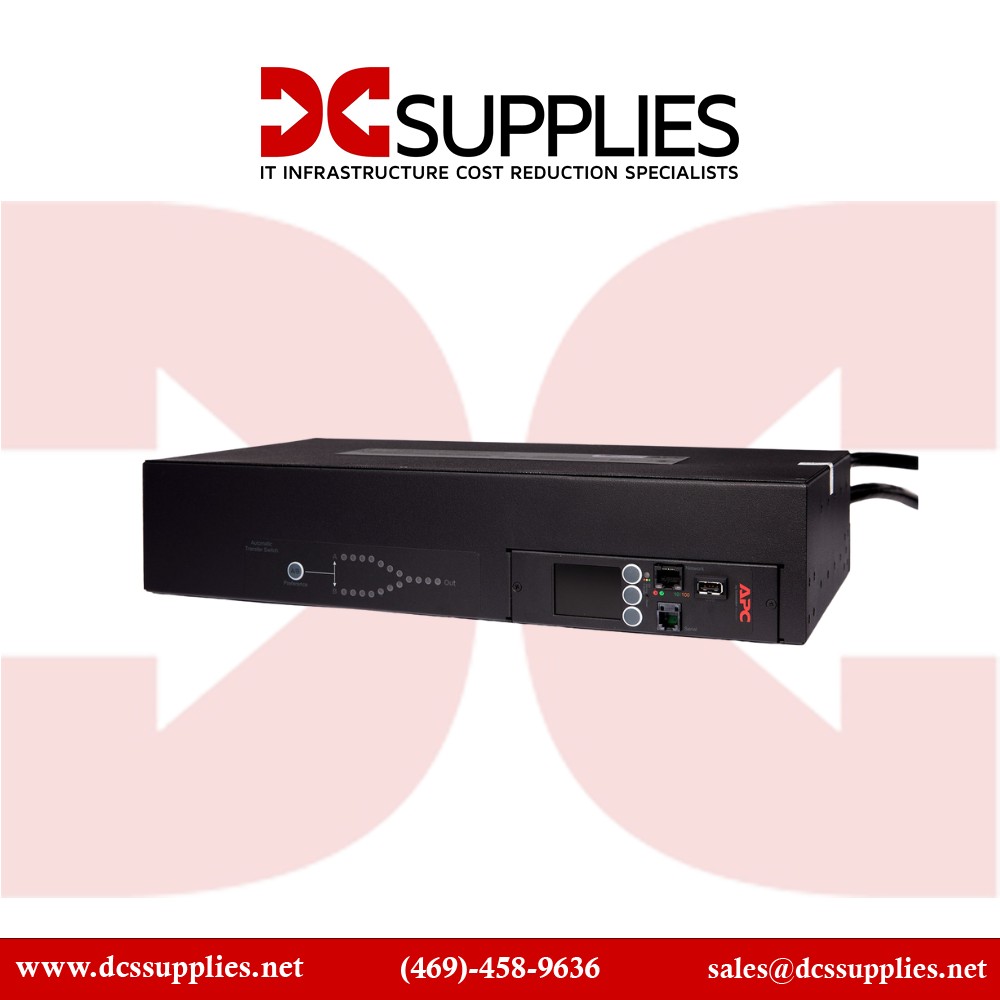

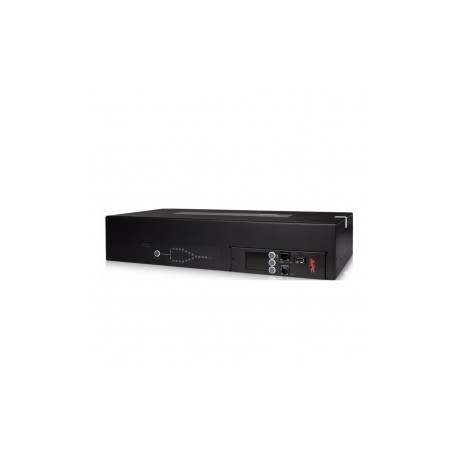

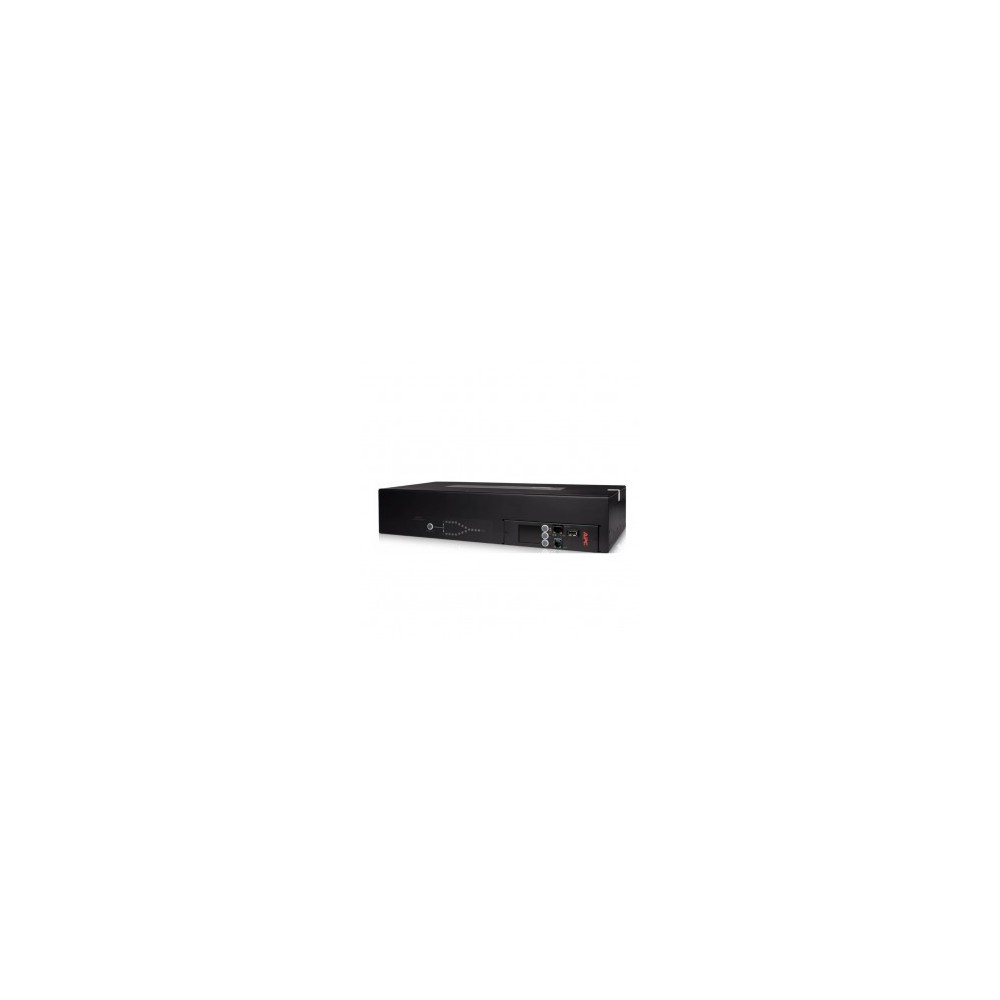

APC AP4431 - Rack Automatic Transfer Switch (ATS) 208V 30A
Overview
The APC AP4431 is a 2U rackmount Automatic Transfer Switch (ATS) designed to provide seamless power redundancy for critical IT equipment. Operating at 208V and 30A, it features dual L6-30P inputs and a single L6-30R output, ensuring continuous power supply by automatically switching between power sources in case of a failure. The device is equipped with an LCD display for real-time monitoring and offers multiple communication interfaces, including Ethernet, RS-232, and USB, for remote management and configuration. Its compact 2U form factor makes it suitable for standard 19-inch racks, optimizing space without compromising on performance.
Key Features
Dual Input Configuration: Supports two L6-30P inputs for redundant power sources.
Single Output: Provides one L6-30R output to connected equipment.
LCD Display: Offers real-time status and configuration information.
Multiple Communication Ports: Includes Ethernet, RS-232, and USB interfaces for flexible connectivity.
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AP4431 |
| Product Type | Rack Automatic Transfer Switch |
| Input Voltage | 208V AC 1-phase |
| Output Voltage | 208V AC 1-phase |

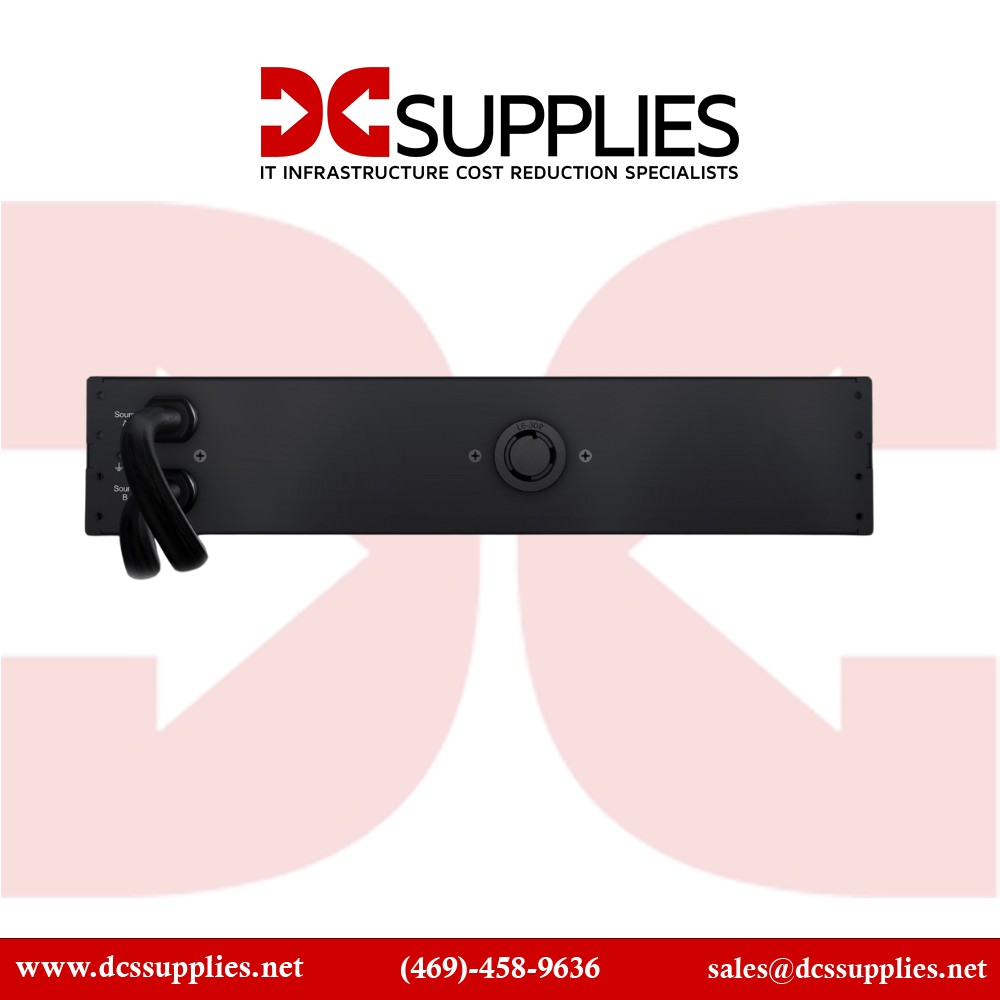

| Input Connectors | 2 x L6-30P |
| Output Connector | 1 x L6-30R |
| Current Rating | 30A |
| Mounting | 2U Rackmount (front) |
| Weight | 14.3 lb (6.5 kg) |
