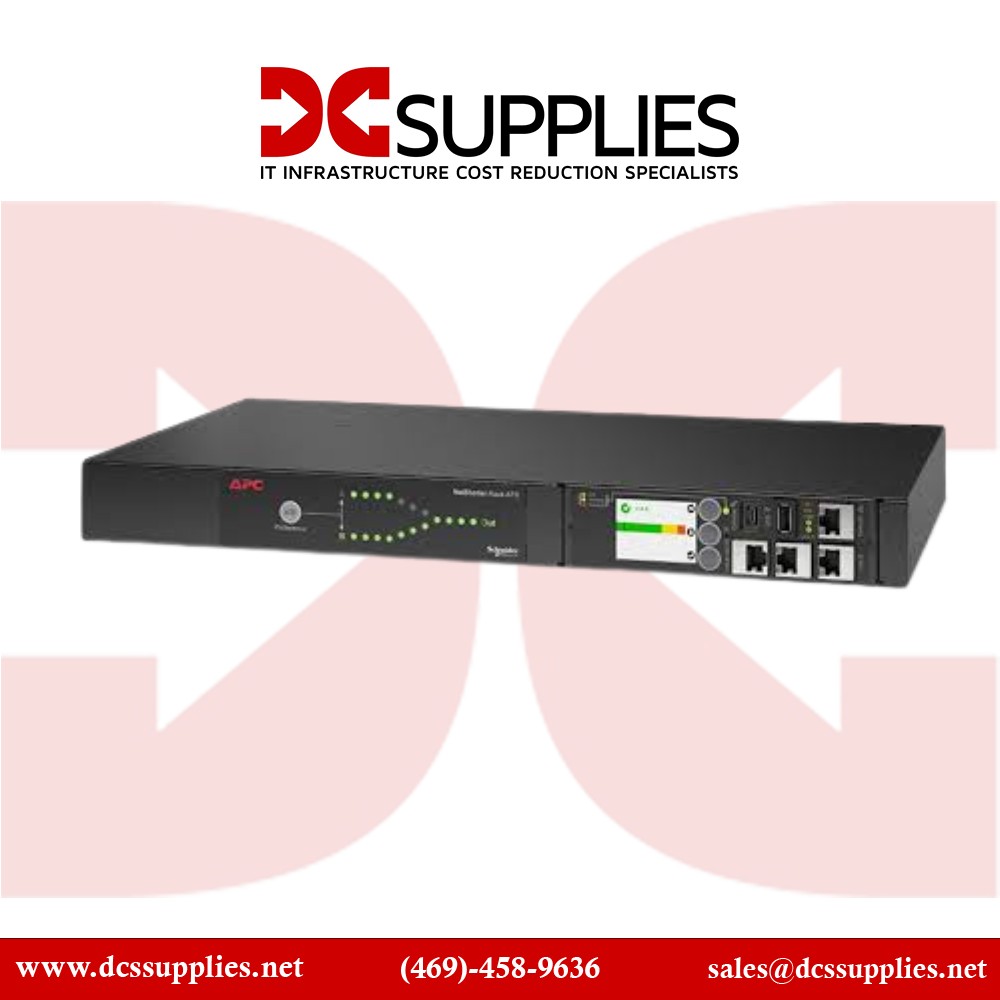

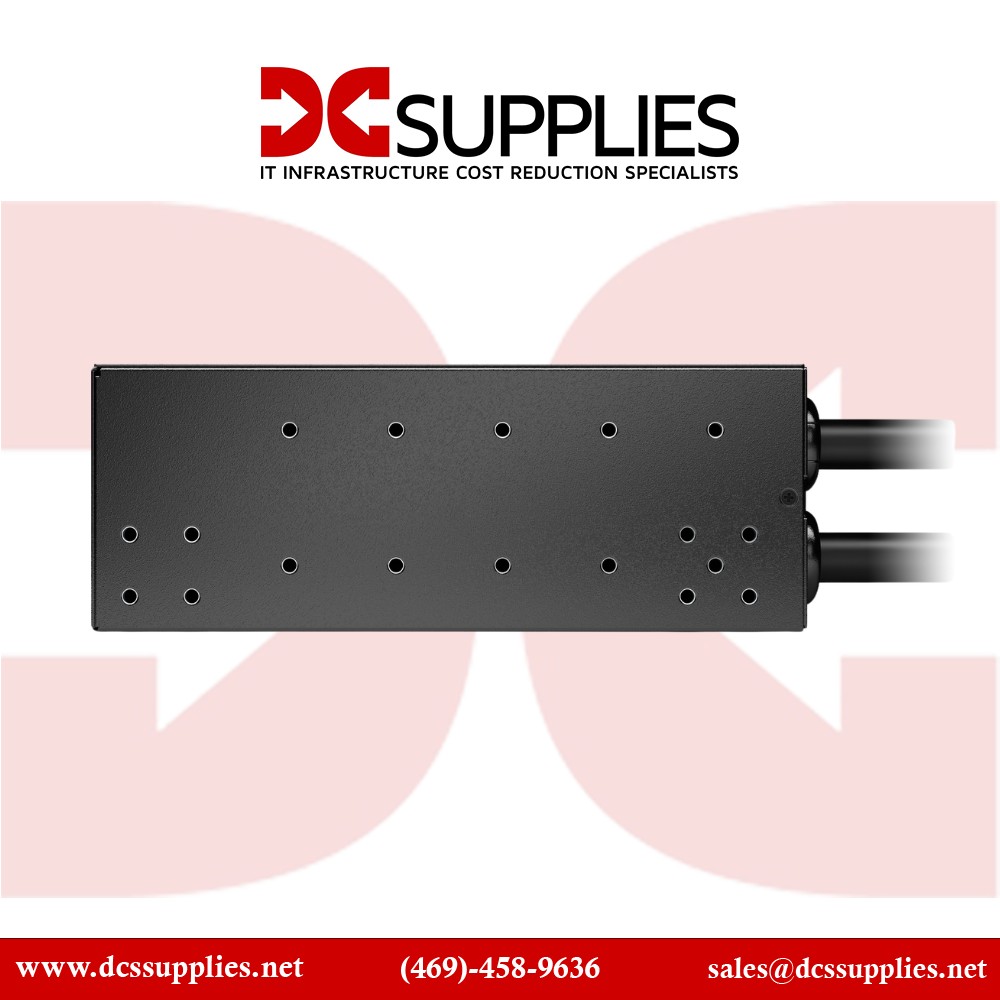

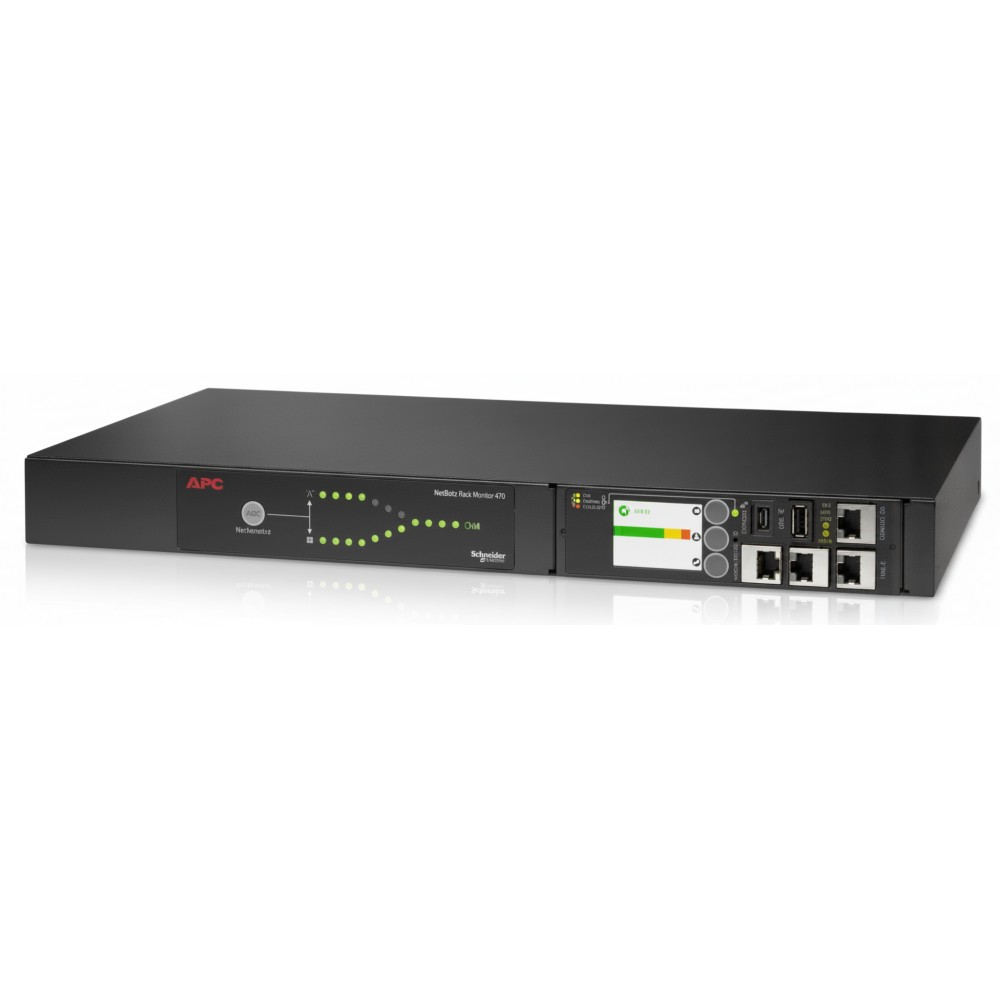

APC AP4421A - 1U Rack Automatic Transfer Switch 10 A 230 V
Overview
The APC AP4421A is a rack-mount automatic transfer switch (ATS) engineered to preserve AC power continuity for single-powered IT equipment by automatically switching load between two redundant 230 V sources. It's deployed by data center engineers, electrical infrastructure teams, and facilities support personnel where sustained AC supply is required in telecom, server, and network racks. The ATS integrates with redundant utility or UPS feeds, ensuring loads remain powered when one source fails.
This model is rated for 10 A continuous current at 230 V AC, providing up to 2000 VA of load capacity. Dual IEC C14 inlet connectors accept two incoming AC sources, and the ATS exposes twelve IEC C13 outlets to feed connected devices, enabling centralized distribution without separate power management hardware.
The AP4421A occupies 1U of standard 19-inch rack space, making it suitable for deployment directly above or below critical gear. It includes a built-in management interface with LCD indicators and supports remote configuration and monitoring through an integrated Network Management Card (NMC3) using Web UI, SNMP, and CLI.
Switching between sources occurs with minimal disruption × typically within 10 ms × helping preserve continuity for loads that are sensitive to momentary outages. This ATS also supports environment monitoring and enhanced security features, allowing teams to log events and track power source health alongside other rack infrastructure metrics.
The unit does not generate power or provide UPS battery support; it merely shifts load between sources. It must be paired with redundant AC feeds (e.g., mains utility and UPS or dual UPS outputs) to ensure persistent power delivery under fault conditions.
Key Features
• Rack-mount automatic transfer switch for redundant 230 V AC sources
• Dual IEC C14 inlet connectors for two AC feeds
• 12 IEC C13 switched output outlets
• 10 A continuous current / ~2000 VA load capacity
• Integrated LCD and NMC3 network management interface
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AP4421A |
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Rated Current | 10 A continuous |
| Nominal Voltage | 230 V AC |
| Load Capacity | 2000 VA |
| Input Connections | 2× IEC 60320 C14 10 A |
| Output Outlets | 12× IEC 60320 C13 |
| Topology | Automatic source transfer |
| Form Factor | 1U rack mount |
| Network Management | Field-replaceable NMC3 (Web UI, SNMP, CLI) |
| Display | On-board LCD indicators |
| Transfer Time | ~10 ms typical |
| Operating Temp | −5 °C to 45 °C |
| Storage Temp | −25 °C to 65 °C |
| Humidity | 5 - 95 % non-condensing |
| Dimensions (HxWxD) | ~44 × 432 × 236 mm |
| Weight | ~3.9 kg |
| Mounting Position | Horizontal rack-mount |
