Overview

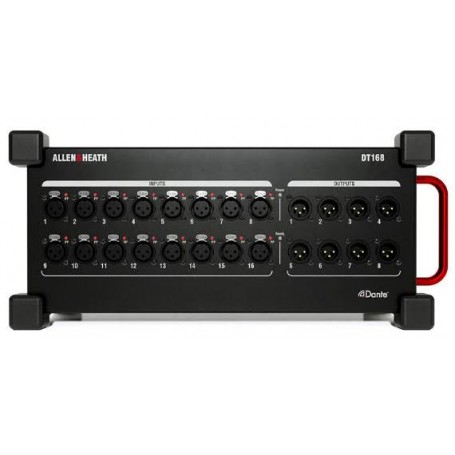

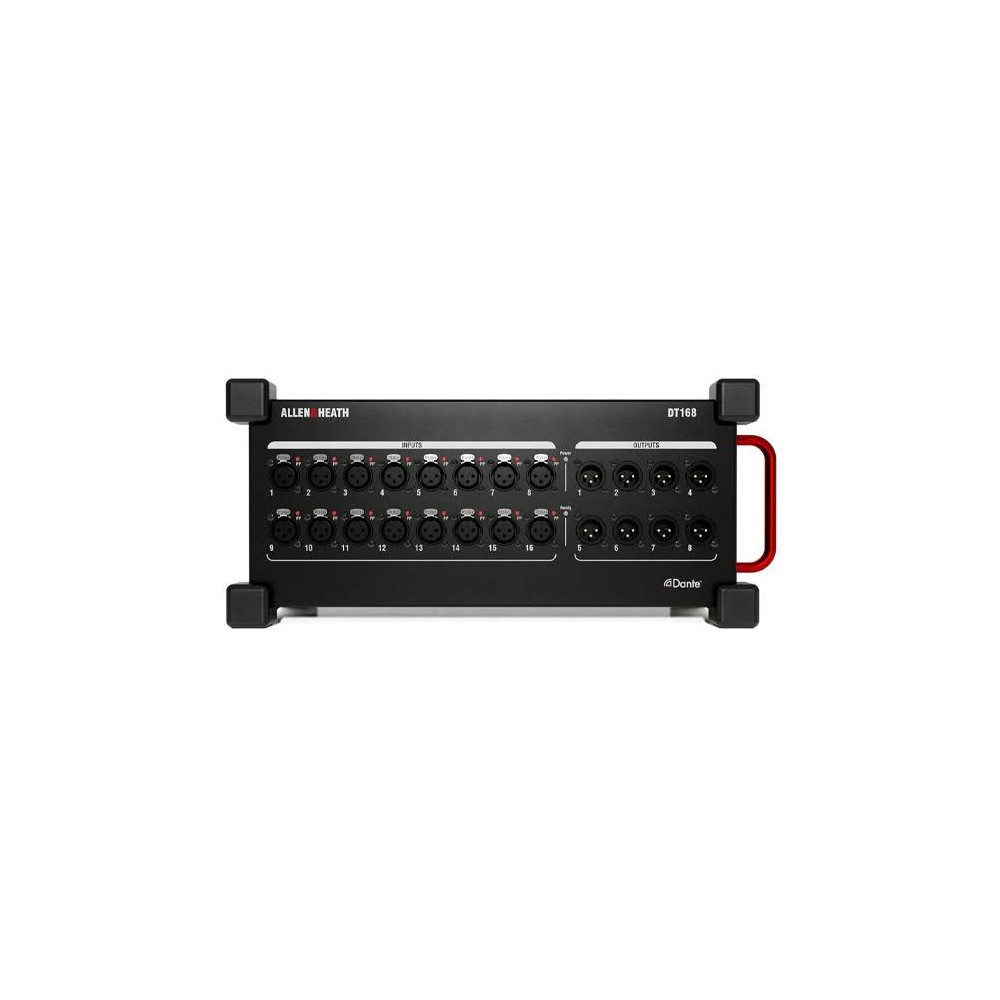

The Allen & Heath AH-DT168 DT168 is a professional Dante audio expander designed to add remote audio inputs and outputs to compatible digital mixing consoles and audio networking systems. Its portable stagebox design provides 16 balanced XLR mic/line inputs with remotely controllable preamps and 8 balanced XLR line outputs, making it suitable for live sound, installed audio, broadcast, and event production environments.
Supporting 48 kHz and 96 kHz Dante audio, the DT168 connects through primary and secondary network ports for switched or redundant network configurations. Its rugged enclosure, protective rubber bumpers, and carrying handle make it practical for both mobile productions and permanent installations.
Key Features
- 16 balanced XLR microphone/line inputs with remotely controllable preamps
- 8 balanced XLR analog line outputs
- Dante digital audio networking at 48 kHz and 96 kHz
- Primary and secondary Dante network connections with locking etherCON connectors
- Switched or redundant network operating modes
- Remote preamp control with compatible Allen & Heath systems and supported software workflows
- +48V phantom power support for compatible condenser microphones
- Portable enclosure with protective rubber bumpers and an integrated carrying handle
- Optional 19-inch rack-mount installation using a compatible rack kit
- AES67 compatibility and Dante Domain Manager readiness
Technical Specifications
| Brand | Allen & Heath |
| Part Number / MPN | AH-DT168 |
| Product Type | Dante Audio Expander / Digital Stagebox |
| Microphone/Line Inputs | 16 balanced XLR inputs |
| Analog Outputs | 8 balanced XLR line outputs |
| Audio Network | Dante |
| Supported Sample Rates | 48 kHz and 96 kHz |
| Network Ports | Primary and secondary locking etherCON connections |
| Network Modes | Switched or redundant |
| Phantom Power | +48V support on microphone inputs |
| Maximum Power Consumption | 40 W |
| Operating Voltage | 100–240V AC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W × D × H) | 410 × 190 × 185 mm |
| Weight | Approximately 4.6 kg |
| Mounting | Portable placement or optional rack mounting |
Applications
- Live sound reinforcement and concert production
- Stage input and output expansion for digital mixing consoles
- Theater, auditorium, and house-of-worship sound systems
- Broadcast and production facilities using Dante audio networks
- Corporate events, conference venues, and installed audio systems
Compatibility and Installation
The DT168 is designed for integration with compatible Dante-enabled Allen & Heath systems, including supported SQ, Avantis, AHM-64, and dLive configurations. Integration depends on the console, Dante interface, firmware, and system configuration. It can also be used with other Dante-capable equipment where the required audio routing and preamp-control functions are supported.
For rack installation, a compatible optional rack-mount kit is required. Confirm system compatibility, firmware requirements, network configuration, and mounting accessories before purchase.
Frequently Asked Questions
1. How many inputs and outputs does the Allen & Heath AH-DT168 provide?
It provides 16 balanced XLR microphone/line inputs and 8 balanced XLR line outputs.
2. Does the DT168 support 96 kHz audio?
Yes. The unit supports Dante audio networking at both 48 kHz and 96 kHz.
3. Can the DT168 operate with redundant network connections?
Yes. Its primary and secondary Dante connections support switched or redundant network configurations, depending on the selected setup.
4. Is the DT168 compatible with every digital mixing console?
Not necessarily. It requires a compatible Dante audio network, and remote preamp control depends on the console, interface, software, and firmware configuration.
5. Can the DT168 be mounted in a 19-inch rack?
Yes. Rack mounting is possible with a compatible optional rack-mount kit.
6. Is the AH-DT168 suitable for portable events?
Yes. Its portable stagebox enclosure, carrying handle, and protective rubber bumpers make it suitable for mobile live-sound and event-production use.
