Detailed Specifications

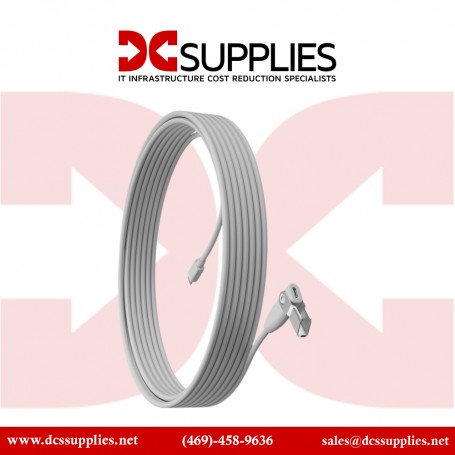

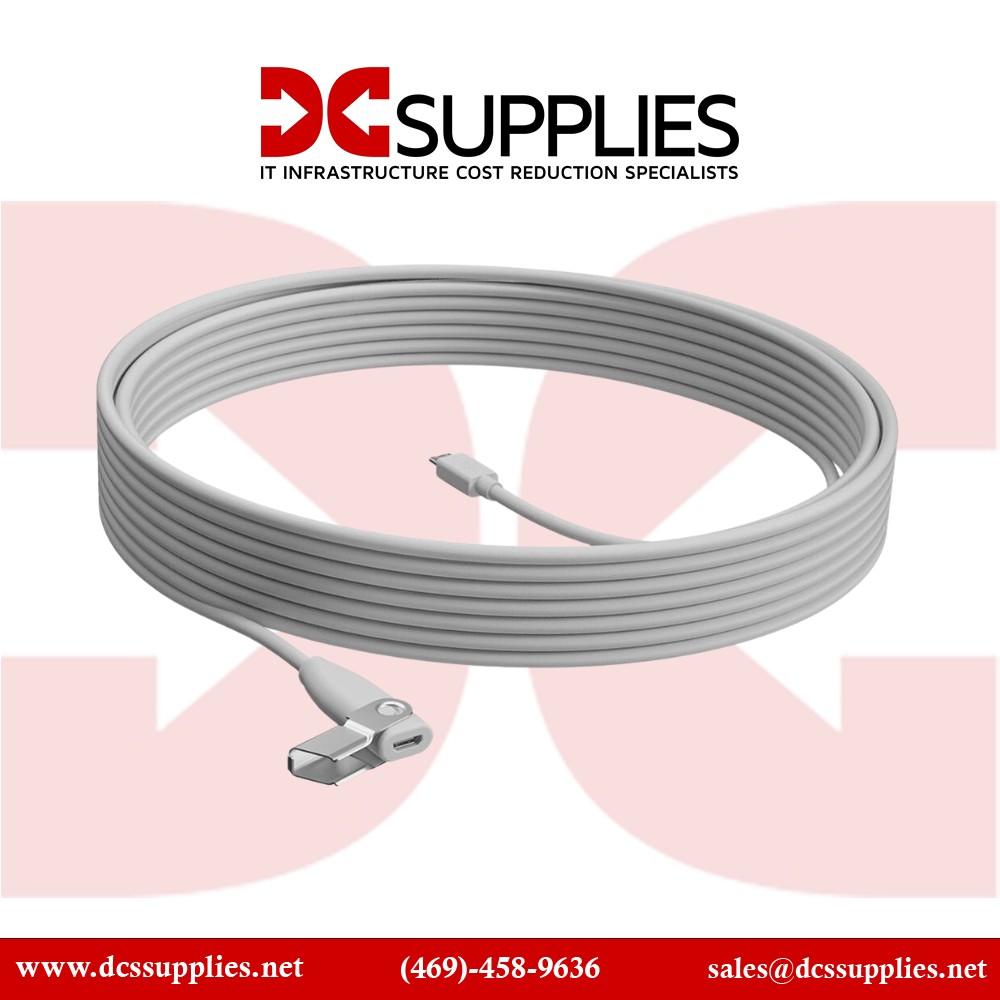

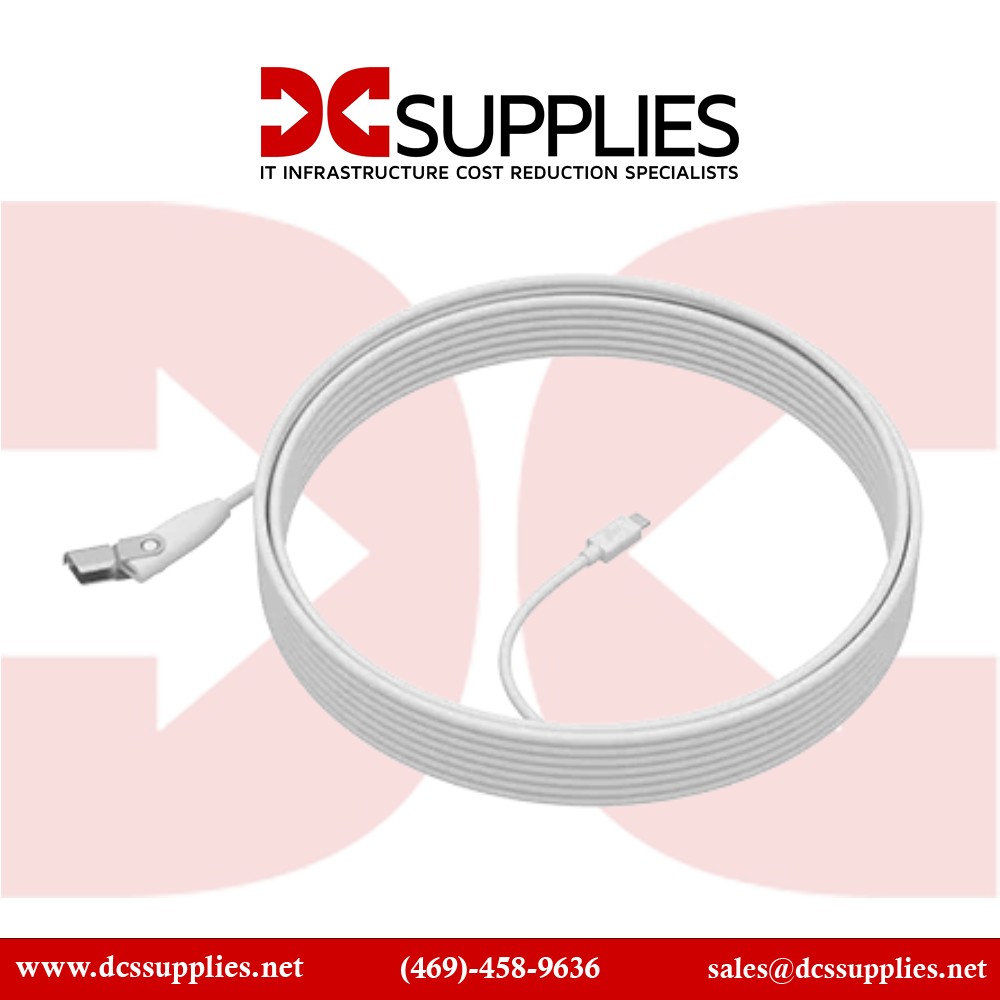

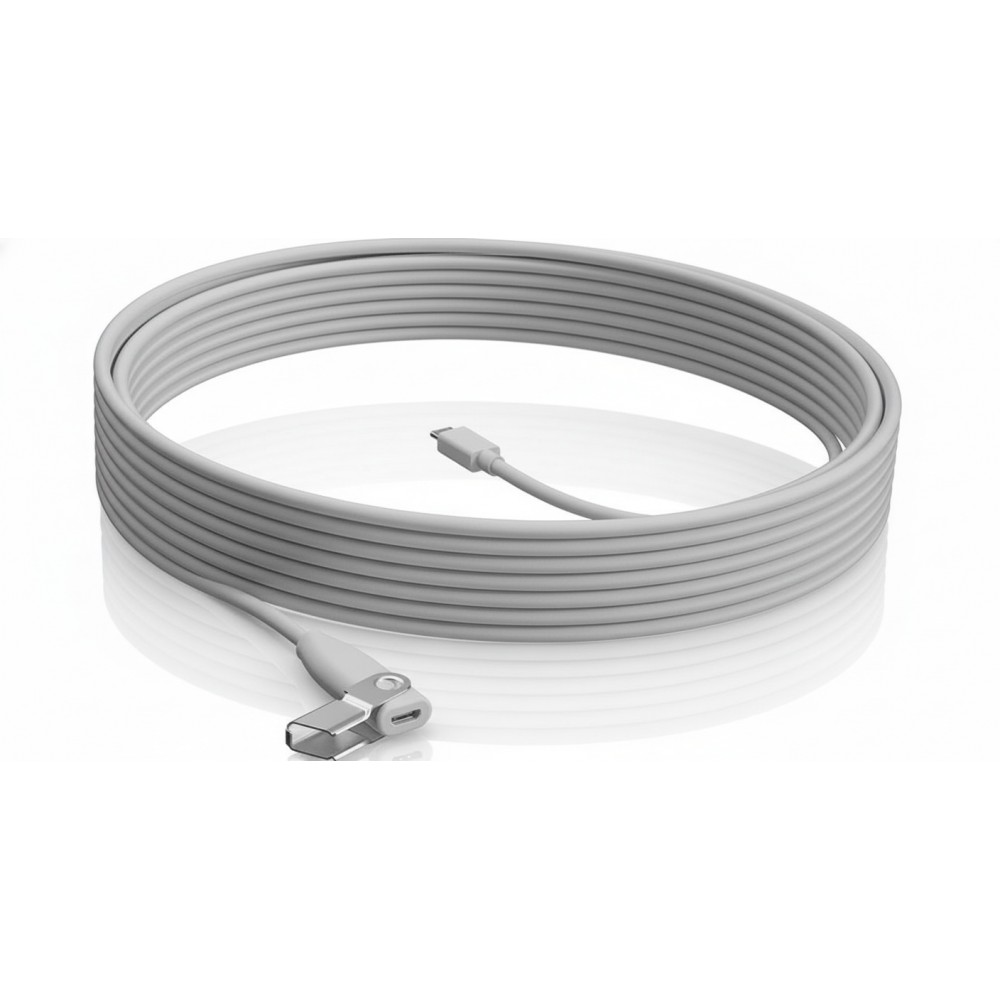

Logitech 952-000047 – Mic Pod Extension Cable
Overview :
The Logitech 952-000047 is a 10 metre (approx. 32.8 ft) extension cable designed for use with the modular microphone pod system deployed in medium to large conference rooms. It enables layout flexibility by extending the connection between the microphone pod and the hub or display unit when fixing larger tables or alternative room geometries. The cable is plenum‑rated and certified for commercial installation—such as in-wall, above‑ceiling or within 19 mm conduit—to meet enterprise AV installation standards. It fits into the environment of the Rally family (table‑hub, display‑hub, mic pod) within boardrooms, training rooms or campus meeting spaces and integrates seamlessly into a managed AV deployment via the Rally system architecture.
Key Features :
10 m (32.8 ft) extension length for mic pod reach
Plenum‑rated cable jacket certified for commercial installation
Supports standard 19 mm conduit routing for clean AV cabling
Proprietary connector‑to‑mic‑pod interface for system integrity
Compatible with Rally, Rally Plus, Rally Bar and Rally Bar Mini systems
Specifications :
| Specification | Detail |
|---|
| Brand | Logitech |
| Part Number | 952‑000047 |
| Product Type | Mic Pod Extension Cable |
| Cable Length | 10 m (32.8 ft) |
| Cable Thickness | 4.2 mm (0.16 in) |
| Connector Type | Proprietary mic‑pod male/female |
| Certification | Plenum‑rated, Eca/IEC 60332‑1‑2 compliant |
| Compatible Systems | Rally, Rally Plus, Rally Bar, Rally Bar Mini |
| Conduit Compatibility | Standard 19 mm conduit |
| Supported Extension | Up to 20 m total (with two cables) |
| Warranty | 2‑Year Limited Hardware Warranty |
| Package Weight | 1.02 lbs (approx) |
| Package Dimensions | 7.2 × 7.2 × 2.1 inches |
| Certification Region | Commercial installation environments |
| Shipping Weight | 0.40 kg (approx) |
