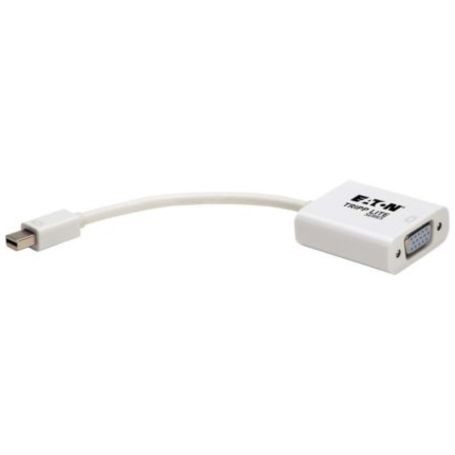

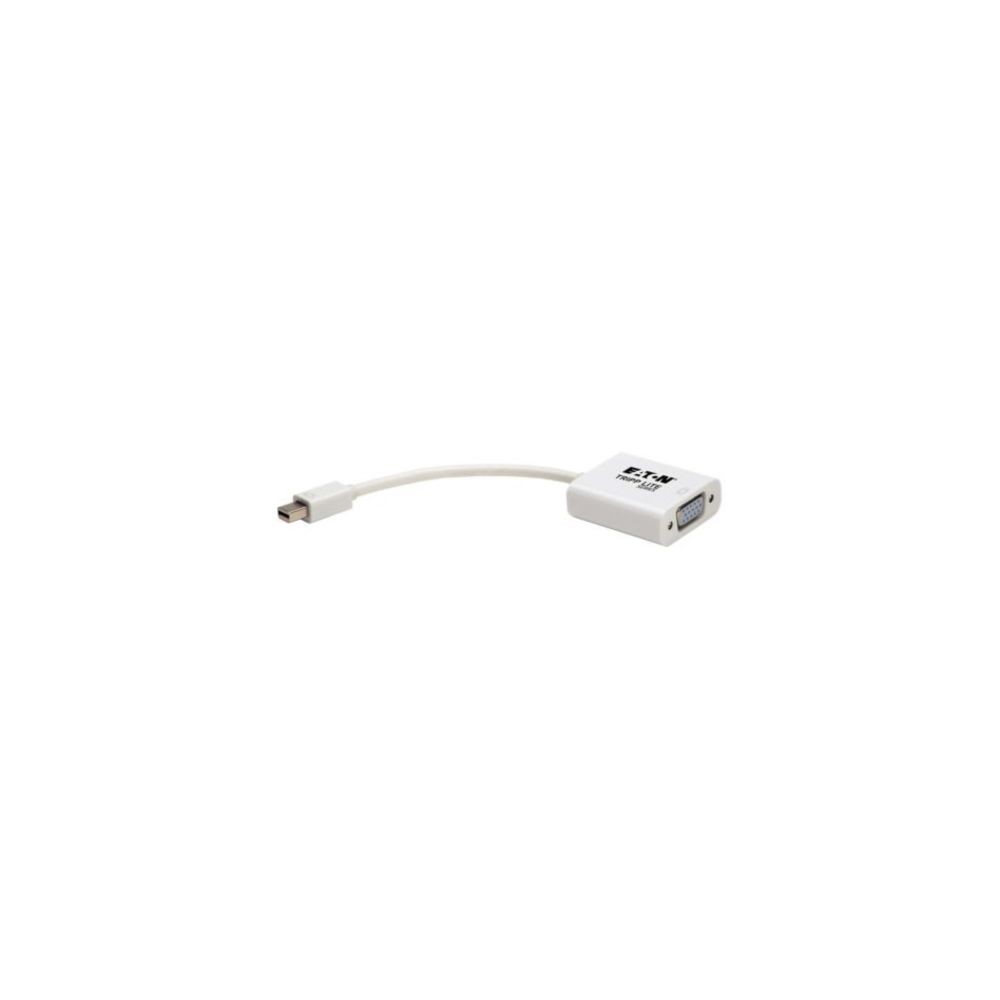

Eaton P137-06N-VGA Tripp Lite Keyspan Mini DisplayPort to VGA Active Adapter 6 in
The Eaton P137-06N-VGA is a 6-inch active Mini DisplayPort-to-VGA adapter designed to connect a VGA monitor, projector, or television to a computer with a Mini DisplayPort output. It supports computer resolutions up to 1920 x 1200 and HD resolutions up to 1080p.
Active Mini DisplayPort to VGA Conversion
The P137-06N-VGA actively converts the Mini DisplayPort video signal to analog VGA. It supports both Single-Mode and Dual-Mode (DP++) DisplayPort output, making it suitable for systems where the source does not provide a DP++ signal.
Mac and Thunderbolt Compatibility
The adapter is designed for Mac and PC systems with Mini DisplayPort output and is compatible with Thunderbolt 1 and Thunderbolt 2 ports on Mac computers. It provides a compact connection for legacy VGA monitors and projectors without requiring separate conversion hardware.
Key Features
- Mini DisplayPort male to HD15 VGA female active adapter
- 6 in (15.24 cm) built-in cable
- Supports up to 1920 x 1200 and 1080p video
- Converts both Single-Mode and Dual-Mode (DP++) DisplayPort output
- Plug-and-play operation with no drivers or software required
DC Supplies Product Note
The active design is the key distinction of the P137-06N-VGA: it can convert both Single-Mode and Dual-Mode DisplayPort output, making it useful with graphics hardware that does not provide DP++ signaling. For MST hub installations, Eaton specifically recommends the separate P137-06N-VGA-V2 instead.
Applications
- Mac computers with Mini DisplayPort outputs
- PCs and laptops with Mini DisplayPort
- Mac computers with Thunderbolt 1 or 2 ports
- VGA monitors and projectors
- Classroom and conference-room presentation systems
- Office workstations using legacy VGA displays
- Digital signage applications
Specifications
| Brand | Eaton / Tripp Lite Keyspan |
|---|
| Part Number / MPN | P137-06N-VGA |
|---|
| Product Type | Mini DisplayPort to VGA Active Adapter |
|---|
| Cable Length | 6 in (15.24 cm) |
|---|
| Cable Type | Active |
|---|
| Connector A | Mini DisplayPort Male |
|---|
| Connector B | HD15 VGA Female |
|---|
| Video Technology | DisplayPort / VGA / SVGA |
|---|
| Maximum Computer Resolution | 1920 x 1200 |
|---|
| Maximum HD Resolution | 1920 x 1080 (1080p) |
|---|
| DisplayPort Conversion | Single-Mode and Dual-Mode (DP++) |
|---|
| Thunderbolt Compatibility | Thunderbolt 1 and Thunderbolt 2 on compatible Mac computers |
|---|
| Driver Required | No |
|---|
| External Power Required | No |
|---|
| MST Hub Compatibility | No; use P137-06N-VGA-V2 for MST hubs |
|---|
| Color | White |
|---|
| Jacket Material | PVC |
|---|
| Connector Plating | Gold |
|---|
| UPC | 037332158901 |
|---|
| Compliance | RoHS |
|---|
| Warranty | 3-Year Limited Warranty |
|---|
Package Contents
- P137-06N-VGA Keyspan Mini DisplayPort to VGA Active Adapter
Frequently Asked Questions
What does the P137-06N-VGA connect?
It connects a computer or compatible Mac with Mini DisplayPort output to a VGA monitor, projector, or television.
What resolution does it support?
The adapter supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p.
Is the P137-06N-VGA an active adapter?
Yes. It actively converts Mini DisplayPort output to VGA and supports both Single-Mode and Dual-Mode (DP++) DisplayPort output.
Does it work with Thunderbolt?
Yes. Eaton specifies compatibility with Thunderbolt 1 and Thunderbolt 2 ports on Mac computers.
Does it require drivers or external power?
No. The adapter is plug-and-play and does not require drivers, software, or an external power supply.
Can the P137-06N-VGA be used with an MST hub?
No. Eaton specifically states that the P137-06N-VGA is not for use with MST hubs. For MST hub compatibility, Eaton recommends the P137-06N-VGA-V2.
