Detailed Specifications

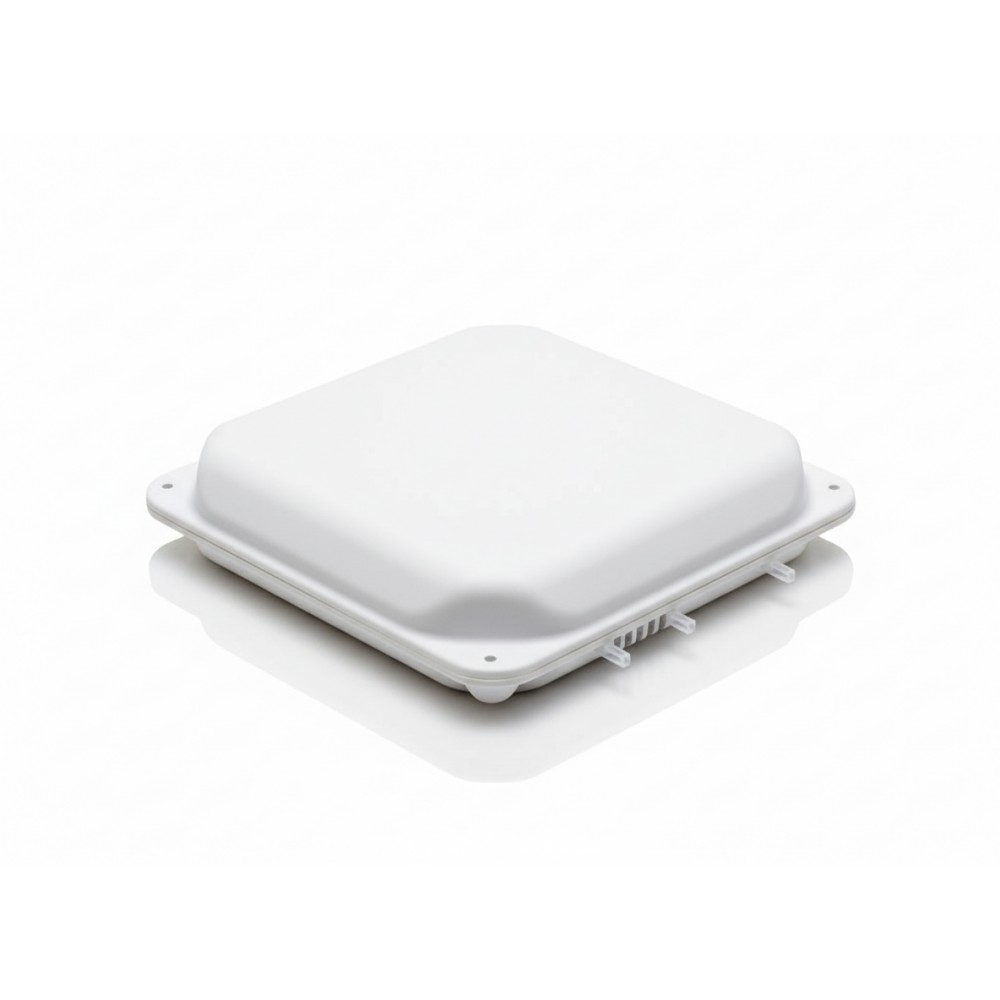

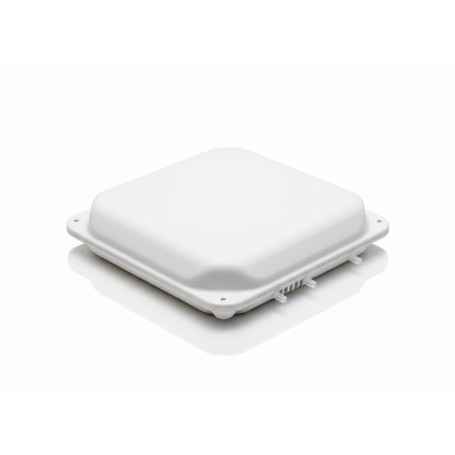

HPE JW034A - ANT-3x3-D100 Outdoor Dual-Band 3×3 Panel Antenna
Overview
The HPE JW034A (ANT-3x3-D100) is a dual-band, outdoor-rated panel antenna engineered for enterprise wireless deployments requiring external antenna support for Aruba access points or radios. It supports the 2.4 GHz and 5 GHz bands, is configured for 3×3 MIMO, and features a beam-width of approximately 90° horizontal by 90° vertical. This makes it suitable for use as a sector-coverage antenna in outdoor campus areas, roof-top zones or open-air walkways where you need wide angular coverage rather than a narrow point-link. The modest gain of 5 dBi aids in coverage while keeping the beam broad enough to serve a wide area.
Because it's an external antenna, you'll typically use this when the AP or radio is remote-mounted or the standard integrated antenna doesn't suit the site's RF requirements.
Key Features
Dual-band (2.4 GHz + 5 GHz) compatibility allows the same antenna to support both WiFi bands for dual-band APs or dual-band wireless systems.
3×3 MIMO design supports three spatial streams, aligning with APs or radios that support three spatial streams×improves throughput and client capacity versus 2×2 antennas.
Wide beam pattern: approx. 90° horizontal by 90° vertical × ideal for covering broad outdoor zones (courtyards, terraces) rather than tight links.
Gain: nominal ~5 dBi, which balances coverage distance with angular spread×suitable for enterprise outdoor use without excessive overshoot or interference.
Outdoor-rated panel construction with mounting hardware for poles or walls, designed to integrate into professional deployments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JW034A |
| Product Type | Outdoor Dual-Band 3×3 Panel Antenna |
| Key Specification | MIMO Configuration: 3×3 |
| Key Specification | Frequency Range: 2.4 GHz and 5 GHz bands |
| Key Specification | Gain: Approx. 5 dBi |
| Beam-Width | Approx. 90° horizontal × 90° vertical |
| Connector Type | N-Type female (typical outdoor antenna) |
| Use Cases | Outdoor sector coverage, access point external antenna |
| Mounting | Pole or wall mount hardware included |
| Outdoor Rating | Designed for external installation |
