HPE ARUBA 3M ANTENNA CABLE JW064A OUTDOOR ACCESS POINT

New

HPE ARUBA 3M ANTENNA CABLE JW064A OUTDOOR ACCESS POINT
×




  • New

Detailed Specifications

HPE JW064A

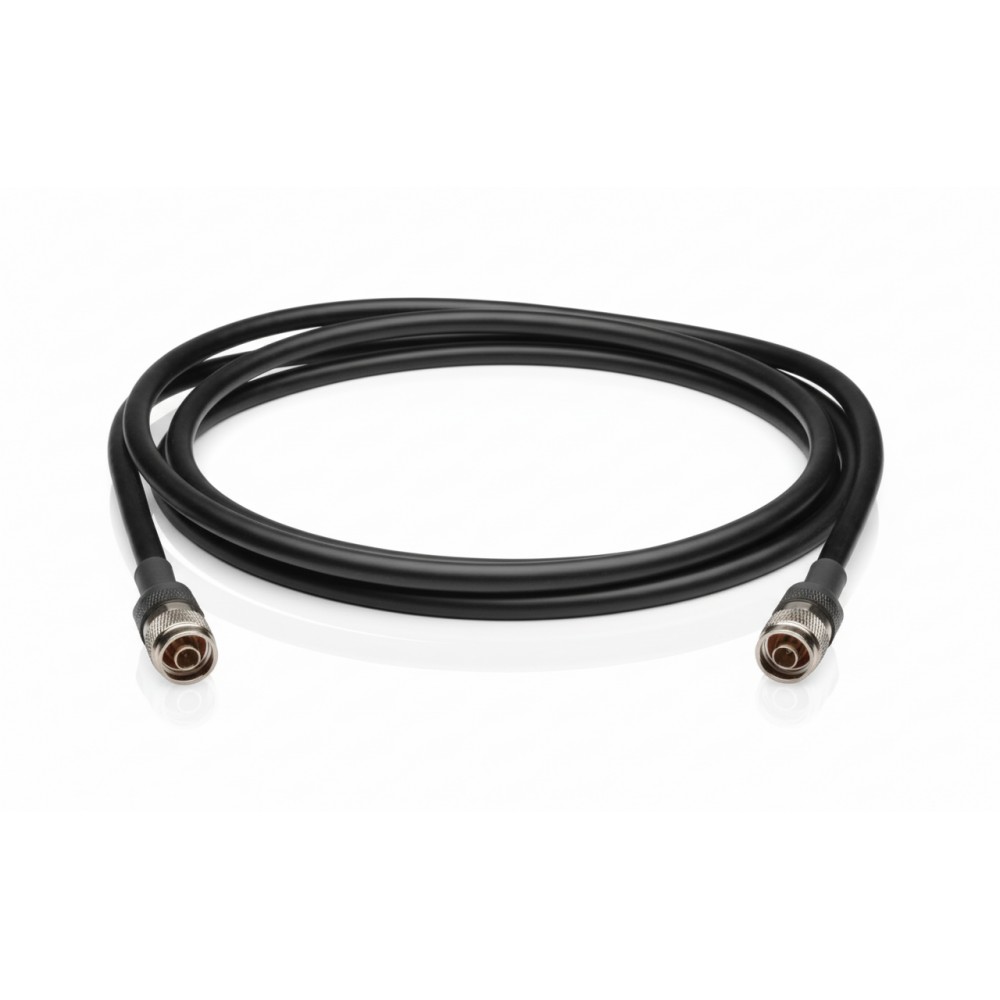

Aruba JW064A 3 m (10 ft) Outdoor Antenna Cable

Highly reliable and weather-resistant, the HPE Aruba JW064A is a premium 3 m N‑male RF cable crafted to connect outdoor Aruba access point antennas to their radios. It ensures minimal signal loss and vertical installation flexibilityin outdoor Wi‑Fi deployments.

Features

Purpose-built for outdoor APs like the Aruba AP‑375, 374, and 377, the JW064A offers robust signal transport with its 7D low-loss cable structure and high-quality N‑Type connectors. At nearly 10 feet long, it's perfect for installations requiring separation between antennas and radios,

Advanced Options

while the weatherproof jacket preserves signal performance in wet or dusty environments. The cable’s 50 Ω impedance matches Aruba antenna ports to ensure optimal RF link integrity.

Product Key Features

  • 9.84 ft (3 m) low-loss RF cable with 7D construction

  • N‑Type male to N‑Type male connectors (50 Ω impedance)

  • Outdoor-grade jacket, rugged for harsh environments

  • Optimized for AP‑375, AP‑374, AP‑377, AP‑484/585 peripheral antennas

  • Low signal attenuation — ideal for maintaining antenna gain

  • Digital Diagnostics Monitoring (DDM) ready with compatible Aruba gear

Reliability & Performance

Rated for outdoor use, the JW064A’s UV-resistant, moisture-resistant jacket protects against sunlight, rain, and temperature extremes. Its 7D low-loss design maintains antenna gain across the 4.9–6 GHz 5 GHz band, ensuring full throughput is preserved. With rugged N‑male connectors and sturdy strain relief, it supports long-term deployments with minimal maintenance concerns.

Key Features :

  • 9.84 ft (3 m) RF cable

  • N‑Type male ↔ N‑Type male connectors, 50 Ω

  • Outdoor-rated jacket and rugged build

  • Designed for Aruba 5 GHz outdoor AP antennas

  • Low-loss 7D cable structure

  • Compatible with AP‑375, 374, 377, 484/585 antenna systems

SpecificationDetails
Model Number JW064A
Product Type Outdoor Antenna RF Cable
Length 3 m (9.84 ft)
Cable Type 7D low-loss RF cable
Impedance 50 Ω
Connector 1 N‑Type Male
Connector 2 N‑Type Male
Frequency Range 4.9–6.0 GHz (5 GHz outdoor Wi‑Fi)
Jacket Outdoor/weather-resistant
Operating Temperature Typical outdoor spec (e.g., –40 °C to +65 °C)
Compatible APs Aruba AP‑375, 374, 377, 484/585 series
Country of Origin China
