Detailed Specifications

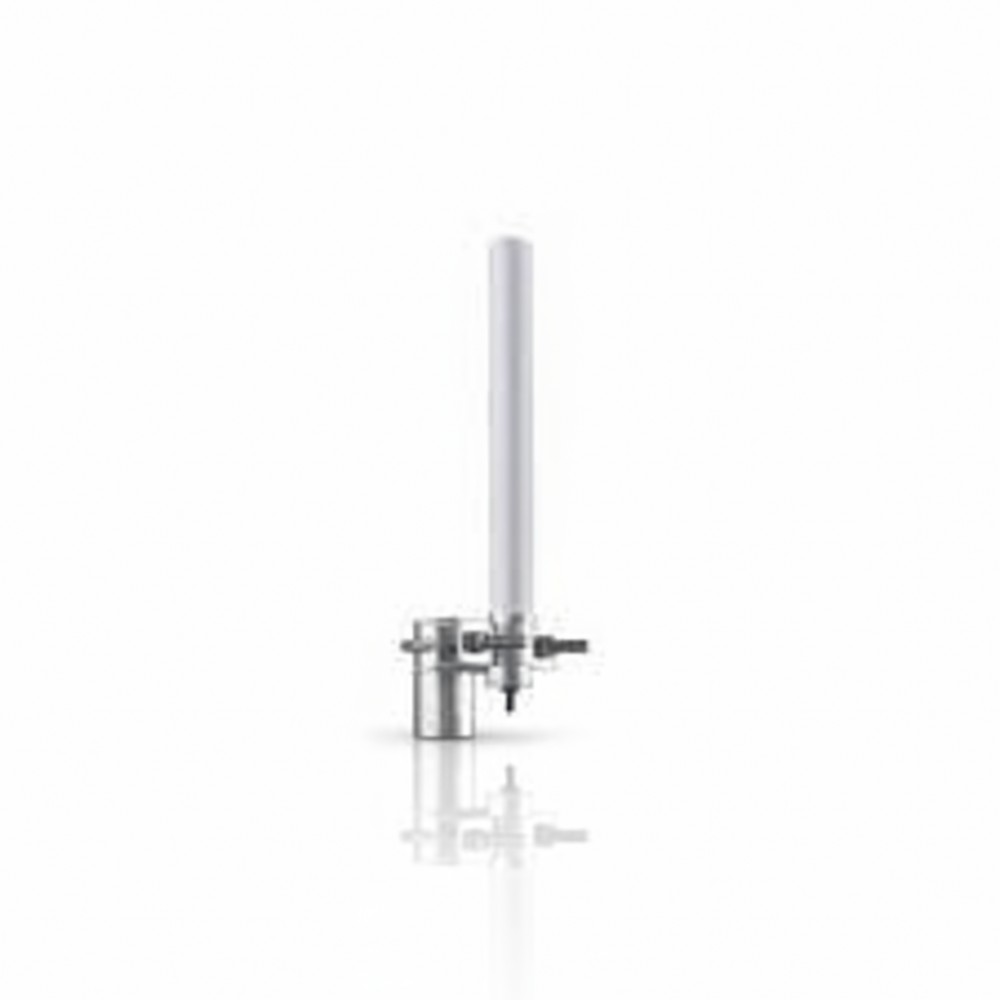

HPE JW004A - Dual-Band Omni Antenna (Indoor/Outdoor)
Overview
The HPE JW004A (AP-ANT-19) is a dual-band omni-directional antenna engineered to extend WiFi coverage for 2.4 GHz and 5 GHz networks in branch offices, warehouses, or campus environments. It provides balanced 3 dBi gain at 2.4 GHz and 6 dBi gain at 5 GHz, offering 360° horizontal coverage ideal for centrally-mounted access points. The integrated 36-inch RP-SMA pigtail simplifies installation by eliminating the need for extra cables. Designed for both indoor and sheltered outdoor use, it delivers consistent performance across -40 °C to +70 °C environments. This antenna is commonly used in retail spaces, warehouses, and campus corridors to enhance uniform wireless coverage without over-focusing the beam pattern.
Key Features
3 dBi gain @ 2.4 GHz and 6 dBi gain @ 5 GHz for balanced dual-band coverage.
360° omni pattern ideal for central mounting in open floor layouts.
Integrated 36-inch RP-SMA pigtail for quick access point connection.
Rated for -40 °C to +70 °C operation, suitable for indoor/outdoor deployments.
Wall and pole mount kit included for flexible installation.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JW004A |
| Product Type | Dual-Band Omni Antenna (Indoor/Outdoor) |
| Frequency Band | 2.4-2.5 GHz / 5.15-5.875 GHz |
| Antenna Gain | 3 dBi @ 2.4 GHz / 6 dBi @ 5 GHz |
| Connector & Cable | RP-SMA connector with 36-inch integrated cable |
| Management | Passive antenna (no firmware or configuration) |
| Power Handling | Supports up to 10 W input power |
| Dimensions & Weight | Height ≈ 245 mm ; Weight ≈ 140 g |
| Warranty | Standard HPE accessory warranty |
