Detailed Specifications

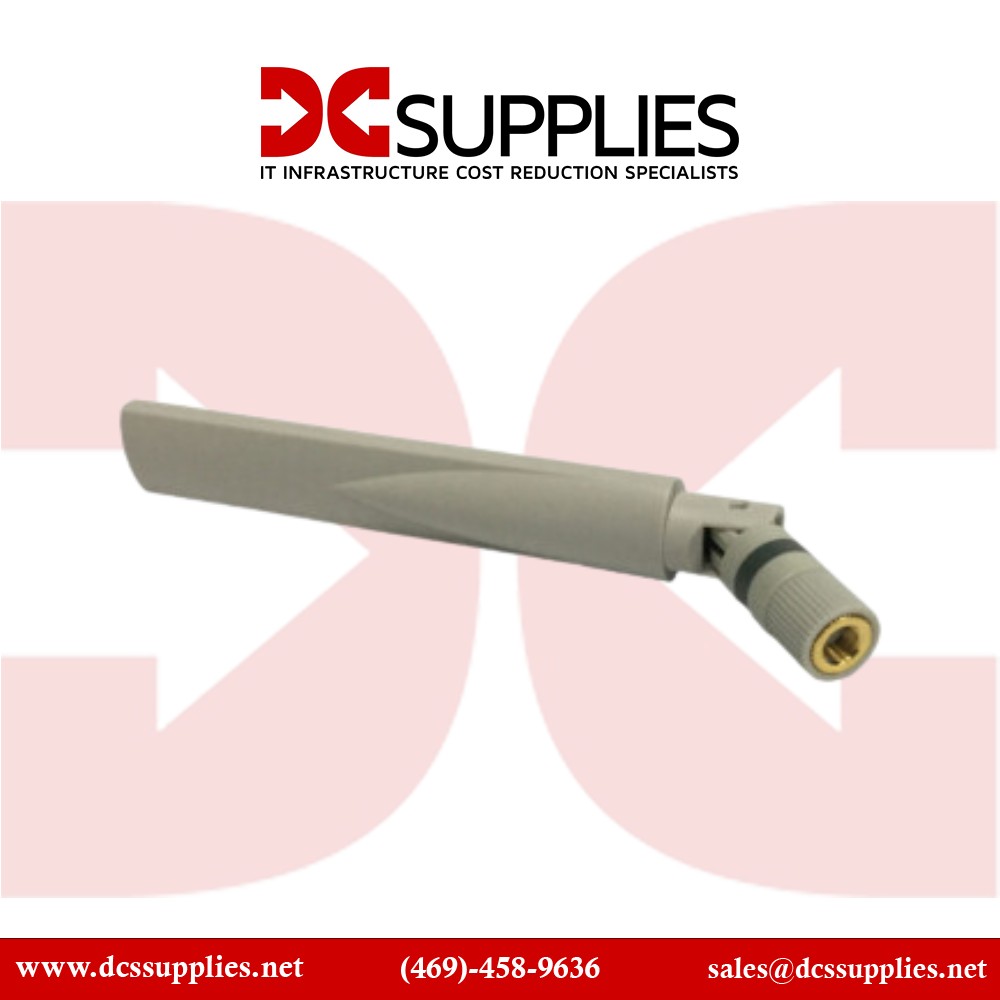

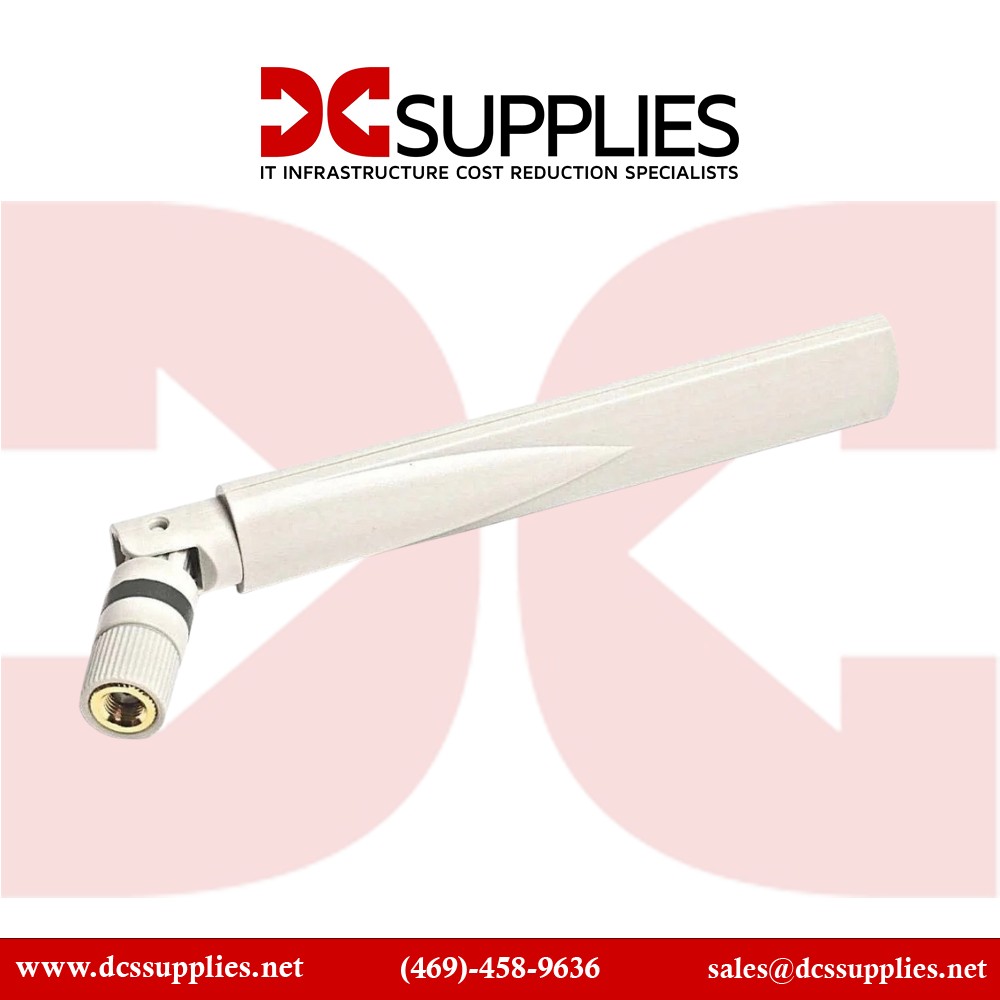

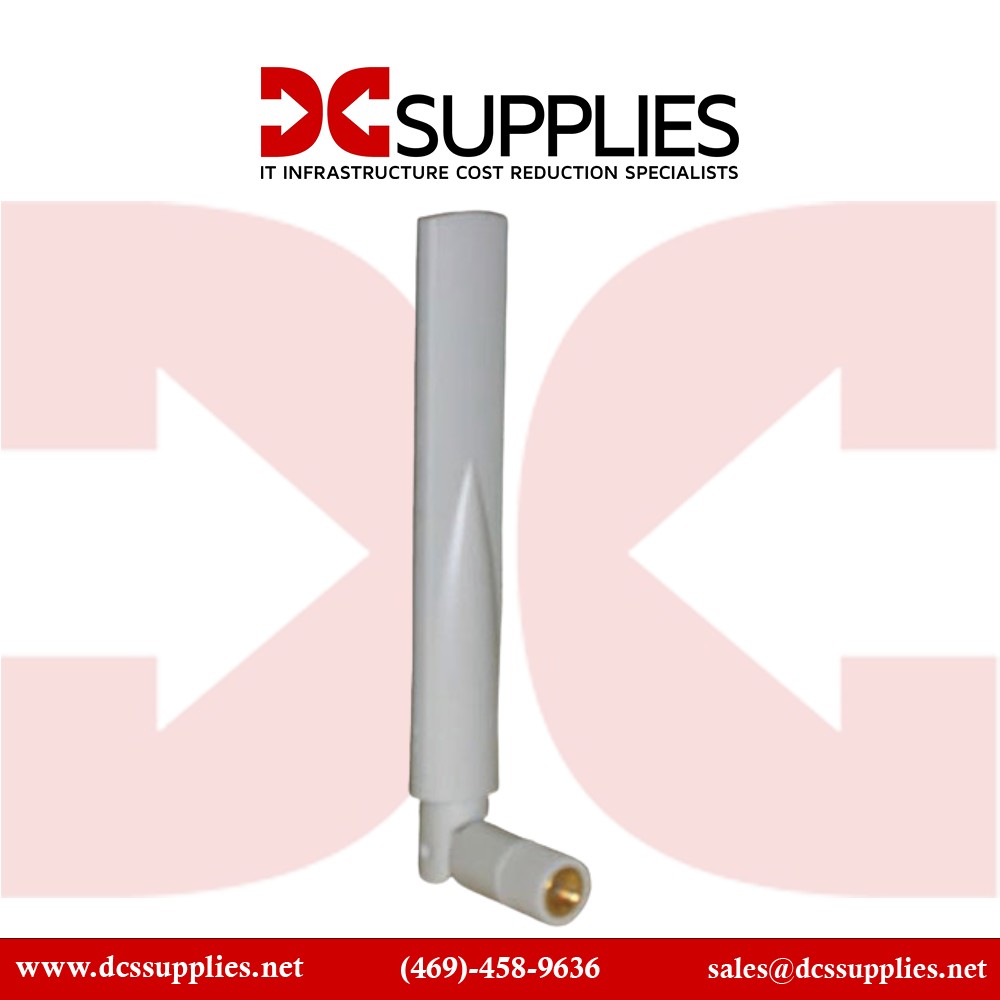

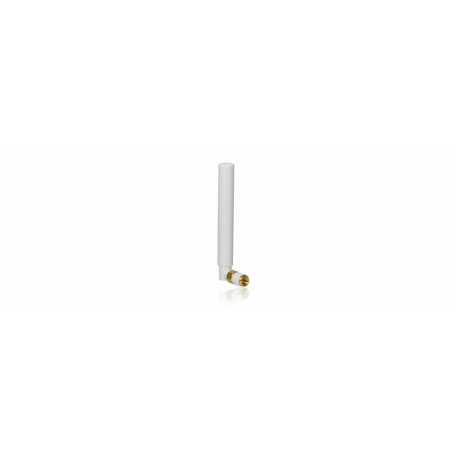

HPE JW009A - Indoor Dual-Band Omni Antenna (2.4/5 GHz, 4/6 dBi)
Overview
The HPE JW009A is a high-gain indoor omni-directional antenna designed to pair with Aruba-series access points in enterprise deployments needing uniform coverage. It covers both the 2.4 GHz (2.4-2.5 GHz) and 5 GHz (4.9-5.875 GHz) bands, delivering 4 dBi gain at 2.4 GHz and 6 dBi at 5 GHz. It is suitable for mounting on ceilings or walls in offices, retail or classroom areas where you want an easy upgrade from built-in AP antennas without changing the access point itself.
Key Features
Dual-band omni: 4 dBi gain for 2.4-2.5 GHz and 6 dBi gain for 4.9-5.875 GHz, helping extend coverage and support higher-density wireless clients.
Indoor ceiling or wall mountable design with self-articulating mount, simplifies alignment and installation in standard workspaces.
RP-SMA male connector for compatibility with Aruba indoor access points that allow external antennas×lets you reuse the AP in a less-optimal antenna environment and optimize RF.
Omni-directional 360° horizontal pattern ensures uniform signal distribution in open‐plan spaces, making it well-suited for offices, schools and retail environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JW009A |
| Product Type | Indoor Dual-Band Omni-Direction Antenna |
| 1. Frequency Range | 2.4-2.5 GHz & 4.9-5.875 GHz |
| 2. Gain | 4 dBi @ 2.4-2.5 GHz / 6 dBi @ 4.9-5.875 GHz |
| 3. Connector | 1 × RP-SMA male |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Mounting | Indoor ceiling or wall, self-articulating bracket |
| Environmental / Temp | Operating approx. −10 °C (14 °F) to +55 °C (131 °F) |
| Dimensions & Weight | ~0.7 in (W) × ~1.5 in (D) × ~5 in (H) |
| Impedance & VSWR | 50 Ω impedance; VSWR approx. 2.0:1 |
